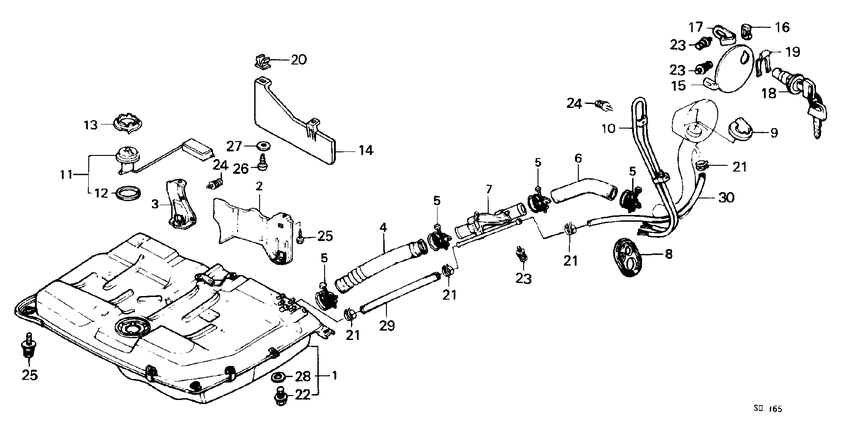

Fuel tank (WAGON) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 5
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-SA0-060
Tank comp.
00000000 - 0S299999 |
17500-SA0-060 |
— | ||
|
2
|
2
17551-SA2-000
Bracket
|
17551-SA2-000 |
— | ||
|
3
|
3
17561-SA2-000
Bracket
|
17561-SA2-000 |
— | ||
|
4
|
4
17651-SA2-020
Tube
|
17651-SA2-020 |
— | ||
|
5
|
5
17652-SA0-000 ClipFILLER TUBE |
17652-SA0-000 |
US $3.01 |
||
|
6
|
6
17653-SA2-020
Tube b
|
17653-SA2-020 |
— | ||
|
7
|
7
17655-SA2-010
Pipe b
|
17655-SA2-010 |
— | ||
|
8
|
8
17658-SA2-020
Grommet
|
17658-SA2-020 |
— | ||
|
9
|
9
17670-SA5-003
Cap comp.
|
17670-SA5-003 |
— | ||
|
10
|
10
17721-SA2-000
Pipe comp
|
17721-SA2-000 |
— | ||
|
11
|
11
37800-SA0-013 Meter unitFUEL (NIPPON SEIKI) 00000000 - 0S299999 |
37800-SA0-013 |
US $68.48 |
||
|
11
|
11
37800-SA0-014 Meter unitFUEL (DENSO) 00000000 - 0S299999 |
37800-SA0-014 |
US $66.56 |
||
|
12
|
12
37801-689-000 PackingBASE |
37801-689-000 |
from US $4.37 |
||
|
13
|
13
37802-689-000 RetainerFUEL UNIT |
37802-689-000 |
US $7.12 |
||
| replacement | |||||
|
13
|
13
37802-SD2-000 RetainerFUEL UNIT |
37802-SD2-000 |
from US $4.74 |
||
|
15
|
15
70490-SA0-000ZZ
Lid comp
|
70490-SA0-000ZZ |
— | ||
|
16
|
16
73211-SA0-000
Damper
|
73211-SA0-000 |
— | ||
|
17
|
17
73215-SA0-000
Striker
|
73215-SA0-000 |
— | ||
|
18
|
18
73220-SA0-023
Lock
|
73220-SA0-023 |
— | ||
|
19
|
19
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
21
|
21
90700-671-000
Clip
|
90700-671-000 |
— | ||
|
22
|
22
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
23
|
23
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
23
|
23
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
24
|
24
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
25
|
25
93495-080-200-8 Bolt-washer8X20 |
93495-080-200-8 |
US $0.74 |
||
|
28
|
28
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
29
|
29
95003-400-323-1 TubeVINYL, 12X16X320 (95003-40001-60M) 00000000 - 0S299999 |
95003-400-323-1 |
US $3.48 |
||
|
30
|
30
95003-400-423-1 TubeVINYL, 12X16X420 (95003-40001-60M) 00000000 - 0S299999 |
95003-400-423-1 |
US $4.37 |
||
