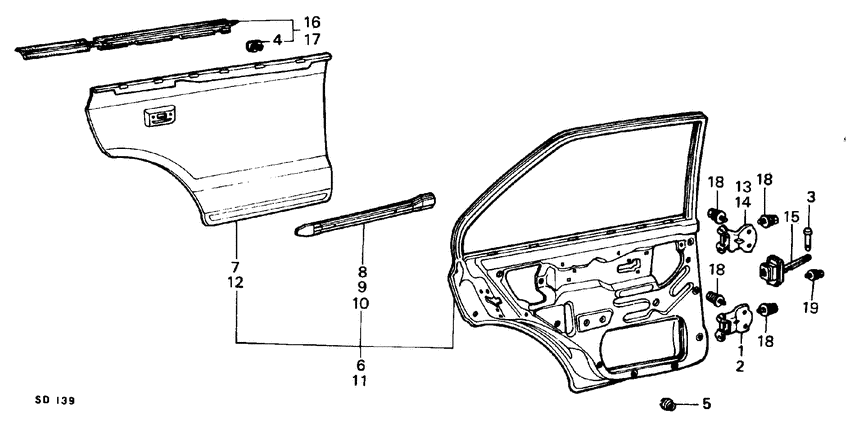

Rear door panel (WAGON) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 5
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75710-SA0-013ZZ
Hinge a
|
75710-SA0-013ZZ |
— | ||
|
2
|
2
75720-SA0-013ZZ
Hinge b
|
75720-SA0-013ZZ |
— | ||
|
3
|
3
75760-692-000
Pin assy
|
75760-692-000 |
— | ||
|
4
|
4
75864-SA0-003
Clip
|
75864-SA0-003 |
— | ||
|
5
|
5
75891-634-600
Stopper
|
75891-634-600 |
— | ||
|
6
|
6
76110-SA3-742ZZ Panel compR. RR. DOOR 00000000 - 0S299999 |
76110-SA3-742ZZ |
US $968.96 |
||
|
7
|
7
76111-SA1-310ZZ
Skin
|
76111-SA1-310ZZ |
— | ||
|
9
|
9
76128-SA1-651ZZ
Beam
|
76128-SA1-651ZZ |
— | ||
|
10
|
10
76138-SA1-651ZZ
Beam
|
76138-SA1-651ZZ |
— | ||
|
11
|
11
76150-SA3-742ZZ Panel compL. RR. DOOR 00000000 - 0S299999 |
76150-SA3-742ZZ |
US $968.96 |
||
|
12
|
12
76151-SA1-310ZZ
Skin
|
76151-SA1-310ZZ |
— | ||
|
13
|
13
76710-SA1-013ZZ
Hinge
|
76710-SA1-013ZZ |
— | ||
|
14
|
14
76720-SA1-013ZZ
Hinge
|
76720-SA1-013ZZ |
— | ||
|
15
|
15
76750-SA1-013
Checker comp.
|
76750-SA1-013 |
— | ||
|
15
|
15
76750-SA1-004
Checker comp.
|
76750-SA1-004 |
— | ||
|
16
|
16
76800-SA1-961
Molding assy.
|
76800-SA1-961 |
— | ||
|
17
|
17
76805-SA1-961
Molding assy.
|
76805-SA1-961 |
— | ||
|
18
|
18
93483-080-250-8 Bolt-washer8X25 00000000 - 0S299999 |
93483-080-250-8 |
US $0.81 |
||
|
19
|
19
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
