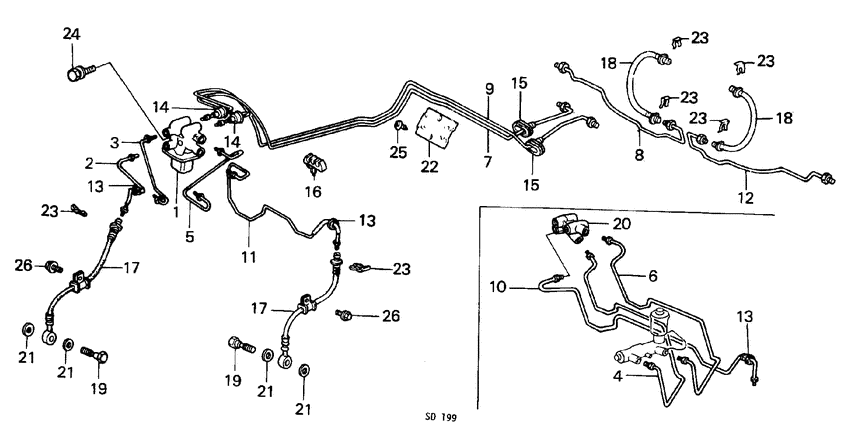

Brake hose/brake pipe (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
46310-SA0-000
Pipe comp. a
|
46310-SA0-000 |
— | ||
|
4
|
4
46320-SA1-683
Pipe comp. b
|
46320-SA1-683 |
— | ||
|
6
|
6
46321-SA1-683
Pipe comp. h
|
46321-SA1-683 |
— | ||
|
7
|
7
46330-SA2-000
Pipe comp. c
|
46330-SA2-000 |
— | ||
|
8
|
8
46331-SA2-030
Pipe comp. e
|
46331-SA2-030 |
— | ||
|
9
|
9
46340-SA2-000
Pipe comp. d
|
46340-SA2-000 |
— | ||
|
10
|
10
46360-SA0-040
Pipe comp. f
|
46360-SA0-040 |
— | ||
|
12
|
12
46361-SA2-030
Pipe comp. e
|
46361-SA2-030 |
— | ||
|
13
|
13
46380-594-300 Grommet aBRAKE PIPE |
46380-594-300 |
US $7 |
||
|
14
|
14
46381-SA0-300
Grommet b
|
46381-SA0-300 |
— | ||
|
15
|
15
46382-SA0-300 Grommet aBRAKE PIPE |
46382-SA0-300 |
US $8.14 |
||
|
16
|
16
46392-692-003 Clip dBRAKE PIPE (WHITE) |
46392-692-003 |
US $3.22 |
||
|
17
|
17
46410-SA0-023 HoseFR. BRAKE (NICHIRIN) |
46410-SA0-023 |
US $43.90 |
||
|
17
|
17
46410-SA0-025 HoseFR. BRAKE (TOYODA) |
46410-SA0-025 |
US $43.90 |
||
|
17
|
17
46410-SA0-024 HoseFR. BRAKE (MEIJI) |
46410-SA0-024 |
US $43.90 |
||
|
18
|
18
46430-SA2-003 HoseRR. BRAKE (NICHIRIN) |
46430-SA2-003 |
US $34.69 |
||
|
18
|
18
46430-SA2-005 HoseRR. BRAKE (TOYODA) |
46430-SA2-005 |
US $34.69 |
||
|
18
|
18
46430-SA2-004 HoseRR. BRAKE (MEIJI) |
46430-SA2-004 |
US $34.69 |
||
|
19
|
19
46462-663-670 BoltOIL |
46462-663-670 |
US $4.76 |
||
|
20
|
20
46470-SA0-000
Joint
|
46470-SA0-000 |
— | ||
|
21
|
21
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
22
|
22
70233-SA3-010
Protector
|
70233-SA3-010 |
— | ||
|
23
|
23
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
24
|
24
93492-080-250-8 Bolt-washer8X25 |
93492-080-250-8 |
US $0.74 |
||
|
25
|
25
93904-26120 ScrewTAPPING, 6X12 |
93904-26120 |
US $0.44 |
||
|
26
|
26
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
26
|
26
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
