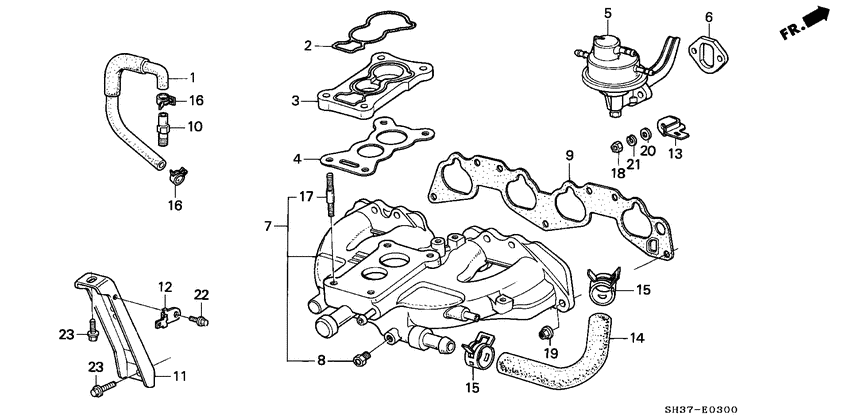

Intake manifold (1) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D12B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX 1200
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11856-PM3-000
Tube comp
|
11856-PM3-000 |
— | ||
|
2
|
2
16105-PJ7-000
O-ring
|
16105-PJ7-000 |
— | ||
|
3
|
3
16210-PM3-000 InsulatorCARBURETOR |
16210-PM3-000 |
US $29.44 |
||
|
4
|
4
16212-PM3-000
Packing
|
16212-PM3-000 |
— | ||
|
5
|
5
16700-PM3-000
Pump assy.
|
16700-PM3-000 |
— | ||
|
6
|
6
16701-PM3-000
Insulator comp.
|
16701-PM3-000 |
— | ||
|
7
|
7
17000-PM1-E00
Manifold assy
|
17000-PM1-E00 |
— | ||
|
8
|
8
17102-PM2-G00
Bolt
|
17102-PM2-G00 |
— | ||
|
9
|
9
17105-PM2-003
Gasket
|
17105-PM2-003 |
— | ||
|
9
|
9
17105-PM2-004
Gasket
|
17105-PM2-004 |
— | ||
| replacement | |||||
|
9
|
9
17105-P00-T03
Gasket
|
17105-P00-T03 |
— | ||
|
10
|
10
17130-PM3-G01
Valve assy.
|
17130-PM3-G01 |
— | ||
|
11
|
11
17132-PM3-000
Stay comp
|
17132-PM3-000 |
— | ||
|
12
|
12
17133-PM3-000
Stay
|
17133-PM3-000 |
— | ||
|
13
|
13
17365-PM3-950
Stay
|
17365-PM3-950 |
— | ||
|
14
|
14
19508-PM3-000
Hose
|
19508-PM3-000 |
— | ||
|
15
|
15
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
16
|
16
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
16
|
16
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
17
|
17
90064-PH1-300
Bolt
|
90064-PH1-300 |
— | ||
|
18
|
18
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
20
|
20
94102-08800 WasherPLAIN, 8MM |
94102-08800 |
from US $0.37 |
||
|
21
|
21
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
22
|
22
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
22
|
22
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
23
|
23
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
