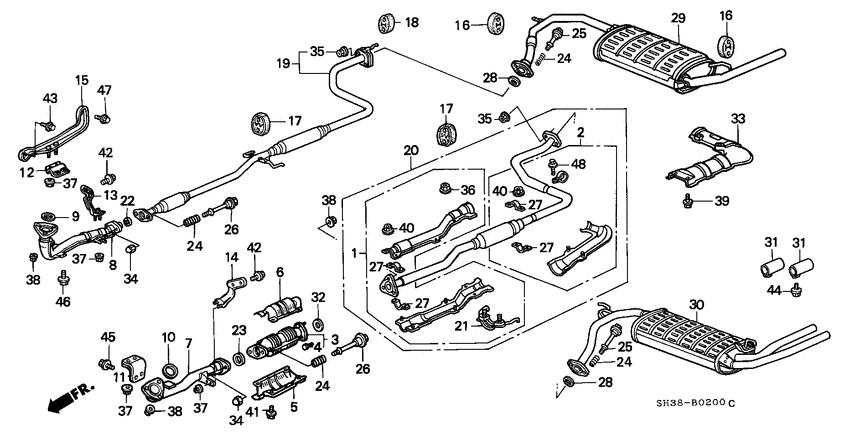

Exhaust pipe Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D12B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX 1200
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
18210-SH3-G02
Pipe a
|
18210-SH3-G02 |
— | ||
|
9
|
9
18212-SA7-003 GasketEX. PIPE (ISHINO) |
18212-SA7-003 |
from US $5.37 |
||
|
12
|
12
18213-SH3-J00
Stay
|
18213-SH3-J00 |
— | ||
|
13
|
13
18213-SH3-J80
Stay
|
18213-SH3-J80 |
— | ||
|
15
|
15
18214-SH3-J00 BracketEX. MOUNTING 00000000 - 0S100081 |
18214-SH3-J00 |
US $14.34 |
||
|
15
|
15
18214-SH3-J01 BracketEX. MOUNTING 0S100082 - |
18214-SH3-J01 |
US $14.34 |
||
|
16
|
16
18215-671-000 RubberSILENCER MOUNTING (74X53X22) |
18215-671-000 |
from US $9.92 |
||
|
17
|
17
18215-SH3-J01 RubberEX. MOUNTING (70X55X30) |
18215-SH3-J01 |
US $10.26 |
||
|
18
|
18
18215-SH3-J80 RubberEX. MOUNTING (60X50X20) |
18215-SH3-J80 |
US $7.70 |
||
| replacement | |||||
|
18
|
18
18215-SR3-000 RubberEX. MOUNTING |
18215-SR3-000 |
US $8.79 |
||
|
19
|
19
18220-SH3-G03
Pipe b
|
18220-SH3-G03 |
— | ||
|
22
|
22
18229-SB2-003 GasketEX. FLEXIBLE (45MM-59MM) |
18229-SB2-003 |
US $22.14 |
||
|
24
|
24
18230-SA0-930 SpringFLEXIBLE JOINT |
18230-SA0-930 |
from US $3.74 |
||
|
25
|
25
18231-SB2-000 BoltFLEXIBLE JOINT |
18231-SB2-000 |
US $7.70 |
||
|
26
|
26
18231-SH3-J30 BoltFLEXIBLE JOINT 00000000 - 0S100060 |
18231-SH3-J30 |
US $9.10 |
||
|
26
|
26
18231-SH3-J31 BoltFLEXIBLE JOINT 0S100061 - |
18231-SH3-J31 |
US $8.96 |
||
|
28
|
28
18303-689-000
Gasket
|
18303-689-000 |
— | ||
|
29
|
29
18307-SH3-G03
Silencer comp
|
18307-SH3-G03 |
— | ||
|
33
|
33
74651-SH3-000
Plate
|
74651-SH3-000 |
— | ||
|
34
|
34
90115-SB2-003
Nut
|
90115-SB2-003 |
— | ||
|
35
|
35
90115-SH3-J30 NutSELF-LOCK, 8MM |
90115-SH3-J30 |
US $4.06 |
||
|
37
|
37
90117-SB2-000 NutSELF-LOCK, 8MM |
90117-SB2-000 |
from US $3.29 |
||
|
38
|
38
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
39
|
39
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
42
|
42
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
43
|
43
95801-100-251-8 BoltFLANGE, 10X25 |
95801-100-251-8 |
from US $0.81 |
||
| replacement | |||||
|
43
|
43
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
||
|
46
|
46
95801-080-160-8
Bolt
|
95801-080-160-8 |
— | ||
| replacement | |||||
|
46
|
46
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
47
|
47
95801-080-201-8 BoltFLANGE, 8X20 |
95801-080-201-8 |
US $0.59 |
||
