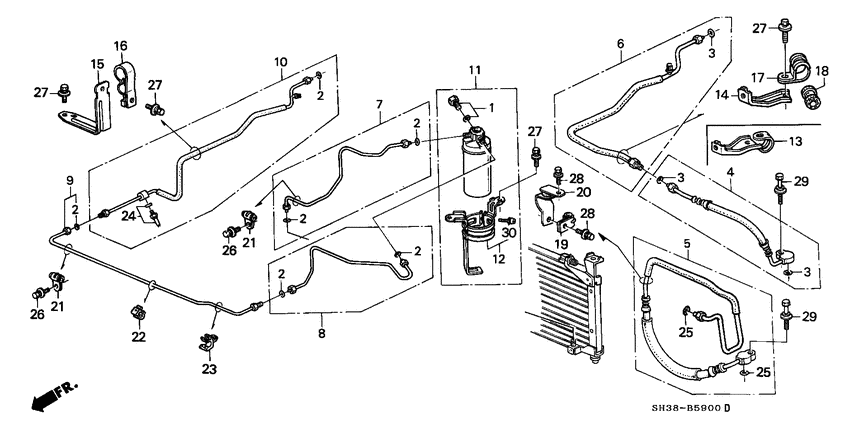

Air conditioner (HOSES/PIPES; 1) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX 1300
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38642-692-661
Plug
|
38642-692-661 |
— | ||
|
2
|
2
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
2
|
2
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
3
|
3
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
4
|
4
80311-SH3-A01
Hose comp.
|
80311-SH3-A01 |
— | ||
|
5
|
5
80315-SH3-003
Hose comp.
|
80315-SH3-003 |
— | ||
|
6
|
6
80321-SH3-A12
Pipe comp
0S012442 - |
80321-SH3-A12 |
— | ||
|
6
|
6
80321-SH3-A02
Pipe comp
00000000 - 0S012441 |
80321-SH3-A02 |
— | ||
|
6
|
6
80321-SH3-A03
Pipe comp
0S012442 - |
80321-SH3-A03 |
— | ||
|
7
|
7
80331-SH3-A11
Pipe
00000000 - 0S012441 |
80331-SH3-A11 |
— | ||
|
7
|
7
80331-SH3-A00
Pipe
00000000 - 0S012441 |
80331-SH3-A00 |
— | ||
|
7
|
7
80331-SH3-A12
Pipe
0S012442 - |
80331-SH3-A12 |
— | ||
|
7
|
7
80331-SH3-A01
Pipe
0S012442 - |
80331-SH3-A01 |
— | ||
|
8
|
8
80341-SH3-A01
Pipe a
|
80341-SH3-A01 |
— | ||
|
9
|
9
80342-SH3-A01
Pipe b
|
80342-SH3-A01 |
— | ||
|
10
|
10
80343-SH3-A02
Pipe c
|
80343-SH3-A02 |
— | ||
|
11
|
11
80350-SH3-A00
Receiver assy
|
80350-SH3-A00 |
— | ||
|
12
|
12
80352-SH3-000
Bracket
|
80352-SH3-000 |
— | ||
|
13
|
13
80361-SH3-A00
Clamp
00000000 - 0S012441 |
80361-SH3-A00 |
— | ||
|
14
|
14
80361-SH3-A01
Stay
0S012442 - |
80361-SH3-A01 |
— | ||
|
15
|
15
80362-SH3-A00
Stay
|
80362-SH3-A00 |
— | ||
|
16
|
16
80363-SH3-A00
Clamp
|
80363-SH3-A00 |
— | ||
|
17
|
17
80365-SH3-A00 ClampSUCTION PIPE 0S012442 - |
80365-SH3-A00 |
US $3.99 |
||
|
18
|
18
80366-SH3-A00
Protector
0S012442 - |
80366-SH3-A00 |
— | ||
|
19
|
19
80371-SH3-000
Clamp
|
80371-SH3-000 |
— | ||
|
20
|
20
80375-SH3-000
Rubber
|
80375-SH3-000 |
— | ||
|
21
|
21
80381-SH3-000 ClampRECEIVER PIPE |
80381-SH3-000 |
US $5.88 |
||
|
22
|
22
80382-SH3-A01 ClipRECEIVER PIPE (NIFCO) |
80382-SH3-A01 |
US $2.17 |
||
|
23
|
23
80386-SH3-A01
Clip b
|
80386-SH3-A01 |
— | ||
|
24
|
24
80440-SE0-003
Switch
|
80440-SE0-003 |
— | ||
|
25
|
25
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
26
|
26
93405-060-120-7 Bolt-washer6X12 |
93405-060-120-7 |
US $0.59 |
||
|
27
|
27
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
28
|
28
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
28
|
28
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
29
|
29
93493-080-350-8 Bolt-washer8X35 |
93493-080-350-8 |
US $0.81 |
||
|
30
|
30
93893-050-200-8 Screw-washer5X20 |
93893-050-200-8 |
from US $0.52 |
||
