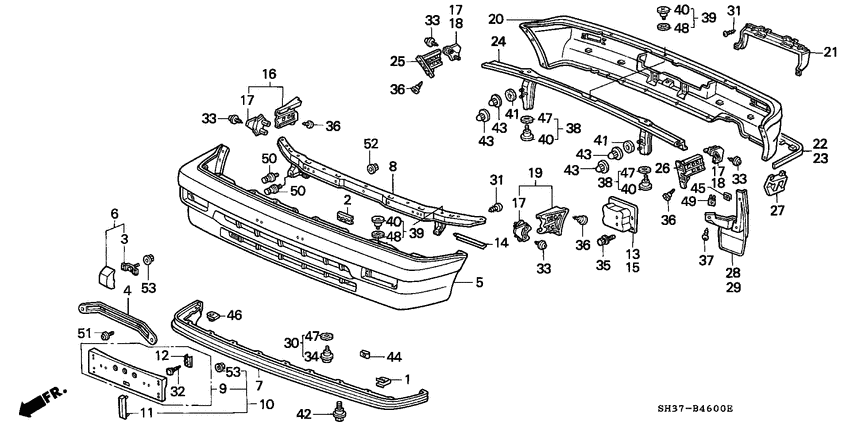

Bumper (1) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 3
- grade
- DX
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
62521-SB2-000
Nut
|
62521-SB2-000 |
— | ||
|
3
|
3
62572-SA5-860
Bracket
|
62572-SA5-860 |
— | ||
|
4
|
4
62591-SB2-860
Bracket
|
62591-SB2-860 |
— | ||
|
5
|
5
71101-SH3-S00
Face
|
71101-SH3-S00 |
— | ||
|
5
|
5
71101-SH3-000
Face
|
71101-SH3-000 |
— | ||
|
5
|
5
71101-SH3-W00
Face
|
71101-SH3-W00 |
— | ||
|
6
|
6
71105-SH3-W00
Guard
|
71105-SH3-W00 |
— | ||
|
8
|
8
71140-SH3-000
Beam comp
|
71140-SH3-000 |
— | ||
|
14
|
14
71152-SH3-000
Seal
|
71152-SH3-000 |
— | ||
|
16
|
16
71190-SH3-000
Slide assy.
|
71190-SH3-000 |
— | ||
|
17
|
17
71193-SH3-000
Clip
|
71193-SH3-000 |
— | ||
|
19
|
19
71195-SH3-000
Slide assy.
|
71195-SH3-000 |
— | ||
|
20
|
20
71501-SH3-G00
Face
|
71501-SH3-G00 |
— | ||
|
21
|
21
71503-SH3-G00
Garnish
|
71503-SH3-G00 |
— | ||
|
24
|
24
71540-SH3-000
Beam comp
|
71540-SH3-000 |
— | ||
|
25
|
25
71591-SH3-000
Slide
|
71591-SH3-000 |
— | ||
|
26
|
26
71592-SH3-000
Slide
|
71592-SH3-000 |
— | ||
|
28
|
28
75820-SH3-W00
Mudguard
|
75820-SH3-W00 |
— | ||
|
29
|
29
75830-SH3-W00
Mudguard
|
75830-SH3-W00 |
— | ||
|
30
|
30
90101-SE0-000 Bolt assy. bBUMPER |
90101-SE0-000 |
US $3.36 |
||
|
31
|
31
90102-SA7-003 ScrewTAPPING, 5X16 |
90102-SA7-003 |
US $2.21 |
||
|
33
|
33
90107-SA0-000
Screw-washer
|
90107-SA0-000 |
— | ||
| replacement | |||||
|
33
|
33
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
34
|
34
90109-SE0-000 Bolt bBUMPER |
90109-SE0-000 |
US $2.80 |
||
|
36
|
36
90113-SE0-000
Screw
|
90113-SE0-000 |
— | ||
| replacement | |||||
|
36
|
36
90105-SF1-000 ScrewCORNER SLIDE TAPPING |
90105-SF1-000 |
US $2.60 |
||
|
37
|
37
90126-SA7-000
Screw-washer
|
90126-SA7-000 |
— | ||
| replacement | |||||
|
37
|
37
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
38
|
38
90130-SB0-000 Bolt assyBUMPER |
90130-SB0-000 |
US $2.66 |
||
|
39
|
39
90130-SH3-000 Bolt assyBUMPER |
90130-SH3-000 |
US $3.22 |
||
|
40
|
40
90140-SB0-000 BoltBUMPER |
90140-SB0-000 |
US $2.24 |
||
|
41
|
41
90142-SH3-000
Seal
|
90142-SH3-000 |
— | ||
| replacement | |||||
|
41
|
41
71544-SR2-000 SealRR. UPPER BEAM |
71544-SR2-000 |
US $1.95 |
||
|
43
|
43
90301-SF1-000
Nut
|
90301-SF1-000 |
— | ||
|
44
|
44
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
45
|
45
90308-SB2-013 NutSUSPENSION, 5MM |
90308-SB2-013 |
from US $2.45 |
||
|
47
|
47
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
48
|
48
90540-SE0-000
Washer
|
90540-SE0-000 |
— | ||
|
49
|
49
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
50
|
50
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
50
|
50
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
51
|
51
93903-44320 ScrewTAPPING, 4X12 |
93903-44320 |
from US $0.37 |
||
|
53
|
53
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
