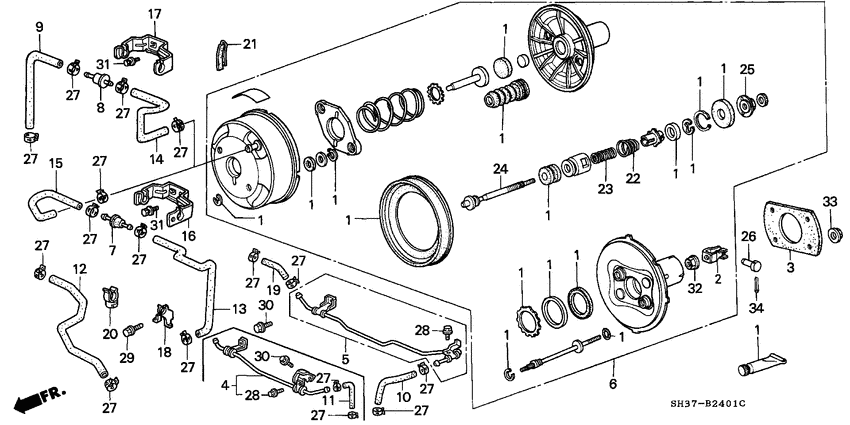

Master power Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 3
- grade
- DX
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06464-SB2-000
Power set
|
06464-SB2-000 |
— | ||
|
2
|
2
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
3
|
3
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
6
|
6
46400-SH3-003 Power assy.MASTER (7") |
46400-SH3-003 |
US $426.24 |
||
|
8
|
8
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
9
|
9
46404-SH3-G00
Tube a
|
46404-SH3-G00 |
— | ||
|
14
|
14
46405-SH3-A00
Tube b
|
46405-SH3-A00 |
— | ||
|
16
|
16
46406-SH3-J02
Stay
|
46406-SH3-J02 |
— | ||
|
22
|
22
46431-692-003
Spring
|
46431-692-003 |
— | ||
|
23
|
23
46432-SA0-003
Spring
|
46432-SA0-003 |
— | ||
|
24
|
24
46433-SB2-003
Rod comp
|
46433-SB2-003 |
— | ||
|
25
|
25
46443-692-003 AdjusterPUSH ROD |
46443-692-003 |
US $2.80 |
||
|
26
|
26
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
27
|
27
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
31
|
31
93492-060-100-8 Bolt-washer6X10 |
93492-060-100-8 |
from US $0.52 |
||
| replacement | |||||
|
31
|
31
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
32
|
32
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
33
|
33
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
34
|
34
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
34
|
34
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
