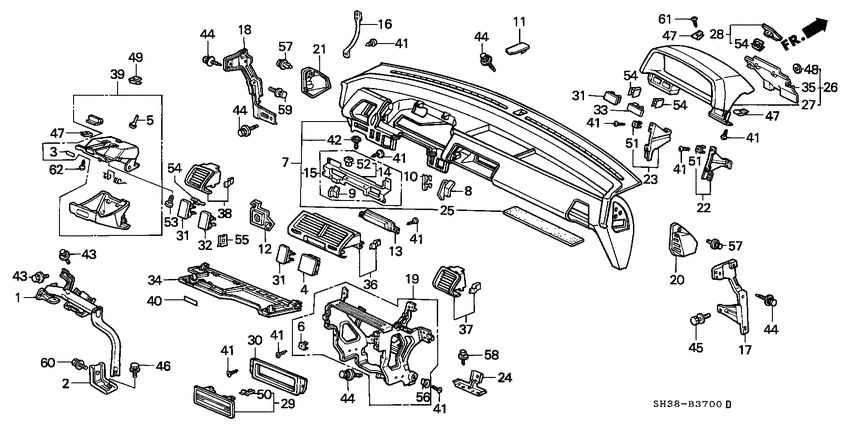

Instrument panel (1) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX 1300
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61170-SH3-G00ZZ
Beam comp
|
61170-SH3-G00ZZ |
— | ||
|
2
|
2
61174-SH3-A00ZZ
Bracket
|
61174-SH3-A00ZZ |
— | ||
|
3
|
3
66161-SB2-000
Label
|
66161-SB2-000 |
— | ||
|
4
|
4
77259-SH3-000ZH
Lid
|
77259-SH3-000ZH |
— | ||
|
5
|
5
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
6
|
6
75522-611-000 GrommetSCREW, 4MM |
75522-611-000 |
US $4 |
||
|
7
|
7
77100-SH3-P03ZA Panel assy.INSTRUMENT *NH167L/NH154L* |
77100-SH3-P03ZA |
US $623.36 |
||
|
9
|
9
77105-SH3-010
Blind
|
77105-SH3-010 |
— | ||
|
11
|
11
77117-SH3-000ZH
Lid
|
77117-SH3-000ZH |
— | ||
|
12
|
12
77118-SH3-G02ZG
Panel
|
77118-SH3-G02ZG |
— | ||
|
15
|
15
77140-SH3-A02
Frame assy
|
77140-SH3-A02 |
— | ||
|
16
|
16
77142-SH3-000
Pipe
|
77142-SH3-000 |
— | ||
|
17
|
17
77143-SH3-A01
Bracket
|
77143-SH3-A01 |
— | ||
|
18
|
18
77145-SH3-A01
Bracket
|
77145-SH3-A01 |
— | ||
|
19
|
19
77151-SH3-A03
Frame
|
77151-SH3-A03 |
— | ||
|
20
|
20
77161-SH3-010ZG
Garnish
|
77161-SH3-010ZG |
— | ||
|
21
|
21
77162-SH3-010ZG
Garnish
|
77162-SH3-010ZG |
— | ||
|
22
|
22
77176-SH3-000
Frame assy
|
77176-SH3-000 |
— | ||
|
23
|
23
77177-SH3-000
Frame assy
|
77177-SH3-000 |
— | ||
|
24
|
24
77180-SH3-020
Bracket
|
77180-SH3-020 |
— | ||
|
25
|
25
77186-SH3-000
Cushion
|
77186-SH3-000 |
— | ||
|
26
|
26
77200-SH3-A04ZB
Visor assy
|
77200-SH3-A04ZB |
— | ||
|
28
|
28
77202-SH3-900ZA
Lid
|
77202-SH3-900ZA |
— | ||
|
29
|
29
77230-SE3-A02 Lid assyAUDIO HOLE |
77230-SE3-A02 |
US $18.69 |
||
|
30
|
30
77233-SH3-A01
Panel
|
77233-SH3-A01 |
— | ||
|
31
|
31
77251-SH3-010ZH
Lid
|
77251-SH3-010ZH |
— | ||
|
34
|
34
77301-SH3-A00ZG
Cover
|
77301-SH3-A00ZG |
— | ||
|
35
|
35
77355-SH3-A03
Blind
|
77355-SH3-A03 |
— | ||
|
36
|
36
77615-SH3-023ZG
Case assy.
|
77615-SH3-023ZG |
— | ||
|
37
|
37
77630-SH3-033ZH
Outlet assy
|
77630-SH3-033ZH |
— | ||
|
38
|
38
77640-SH3-033ZH
Outlet assy
|
77640-SH3-033ZH |
— | ||
|
39
|
39
77750-SH3-010ZG
Pocket assy
|
77750-SH3-010ZG |
— | ||
|
40
|
40
77762-SD4-000
Label
|
77762-SD4-000 |
— | ||
|
41
|
41
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
41
|
41
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
42
|
42
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
43
|
43
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
44
|
44
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
45
|
45
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
46
|
46
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
47
|
47
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
48
|
48
90106-SD2-000
Nut
|
90106-SD2-000 |
— | ||
|
49
|
49
90334-SH3-000
Nut
|
90334-SH3-000 |
— | ||
|
50
|
50
90650-SE3-000 ClipRADIO PANEL |
90650-SE3-000 |
US $1.68 |
||
|
51
|
51
75522-611-000 GrommetSCREW, 4MM |
75522-611-000 |
US $4 |
||
|
52
|
52
90659-SA5-003 GrommetSCREW, 4MM |
90659-SA5-003 |
US $2.24 |
||
|
54
|
54
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
55
|
55
90669-SH3-000
Clip
|
90669-SH3-000 |
— | ||
|
56
|
56
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
57
|
57
90685-SH3-003ZA
Clip
|
90685-SH3-003ZA |
— | ||
|
58
|
58
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
59
|
59
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
60
|
60
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
61
|
61
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
62
|
62
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
