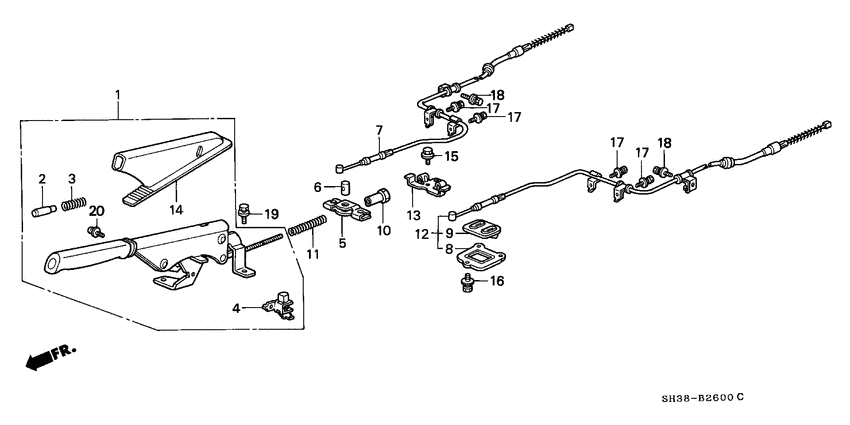

Parking brake Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX 1300
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47105-SH3-000ZA
Lever assy.
|
47105-SH3-000ZA |
— | ||
|
2
|
2
47142-659-310 KnobPARKING BRAKE PUSH ROD |
47142-659-310 |
from US $4.07 |
||
|
3
|
3
47143-671-310 SpringPUSH ROD |
47143-671-310 |
from US $4.07 |
||
|
4
|
4
47342-SA5-013
Switch
|
47342-SA5-013 |
— | ||
|
5
|
5
47360-SB2-000 Equalizer |
47360-SB2-000 |
from US $6.44 |
||
|
6
|
6
47365-538-000 PinEQUALIZER |
47365-538-000 |
from US $3.08 |
||
|
7
|
7
47510-SH3-013
Wire a
|
47510-SH3-013 |
— | ||
|
8
|
8
47511-SH3-300
Bracket
|
47511-SH3-300 |
— | ||
|
9
|
9
47513-SH3-300
Boot
|
47513-SH3-300 |
— | ||
|
10
|
10
47522-594-000 NutPARKING BRAKE ADJUSTING |
47522-594-000 |
US $3.34 |
||
|
11
|
11
47537-671-670 SpringPARKING BRAKE ROD |
47537-671-670 |
US $4.49 |
||
|
12
|
12
47560-SH3-013
Wire a
|
47560-SH3-013 |
— | ||
|
13
|
13
47572-SH3-000
Base
|
47572-SH3-000 |
— | ||
|
14
|
14
83445-SH3-000ZA
Cover
|
83445-SH3-000ZA |
— | ||
|
15
|
15
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
16
|
16
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
17
|
17
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
18
|
18
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
19
|
19
93492-080-200-8 Bolt-washer8X20 |
93492-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
19
|
19
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
20
|
20
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
