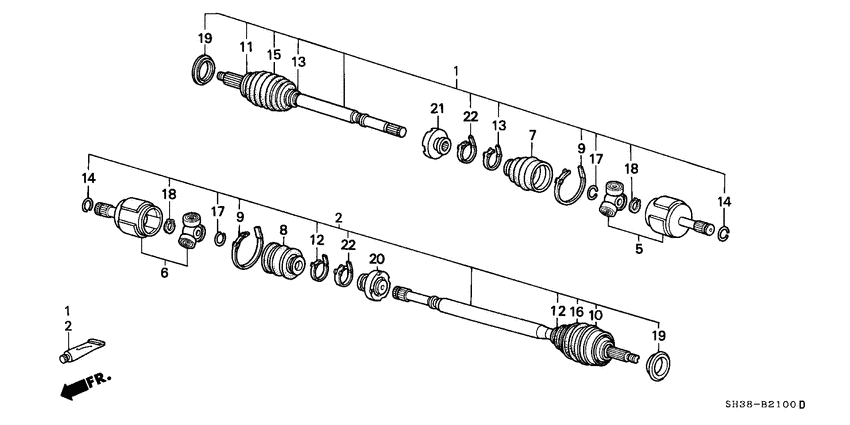

Driveshaft Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 3
- grade
- DX 1300
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SH3-A21
Driveshaft set
|
44010-SH3-A21 |
— | ||
|
2
|
2
44011-SH3-A21 Driveshaft setL. |
44011-SH3-A21 |
US $456.96 |
||
|
5
|
5
44310-SH3-300
Joint comp
|
44310-SH3-300 |
— | ||
|
6
|
6
44310-SH3-900
Joint comp
|
44310-SH3-900 |
— | ||
|
7
|
7
44315-SA7-003
Boot
|
44315-SA7-003 |
— | ||
|
8
|
8
44315-SB2-004 BootINBOARD (OTSUKA) |
44315-SB2-004 |
US $32.13 |
||
|
8
|
8
44315-SB2-003
Boot
|
44315-SB2-003 |
— | ||
|
9
|
9
44316-SA7-320 BandINBOARD BOOT |
44316-SA7-320 |
US $12.74 |
||
|
10
|
10
44317-SA2-300
Band b
|
44317-SA2-300 |
— | ||
|
11
|
11
44317-SA7-300
Band
|
44317-SA7-300 |
— | ||
|
12
|
12
44318-SA5-300
Band c
|
44318-SA5-300 |
— | ||
|
13
|
13
44318-SA7-300 BandDRIVESHAFT BOOT |
44318-SA7-300 |
from US $10.78 |
||
|
14
|
14
44319-SA2-000
Set ring
|
44319-SA2-000 |
— | ||
|
15
|
15
44333-SA7-013 BootOUTBOARD (NOK) |
44333-SA7-013 |
US $32.26 |
||
|
16
|
16
44333-SB2-962 BootOUTBOARD (OTSUKA) |
44333-SB2-962 |
US $33.28 |
||
|
16
|
16
44333-SB2-961 BootOUTBOARD (NOK) |
44333-SB2-961 |
US $29.44 |
||
|
17
|
17
44336-SA7-300 RingINBOARD STOPPER |
44336-SA7-300 |
US $2.52 |
||
|
18
|
18
44338-SA7-300 Circlip22MM |
44338-SA7-300 |
US $2.45 |
||
|
19
|
19
44347-SB2-003 RingOUTBOARD |
44347-SB2-003 |
US $5.32 |
