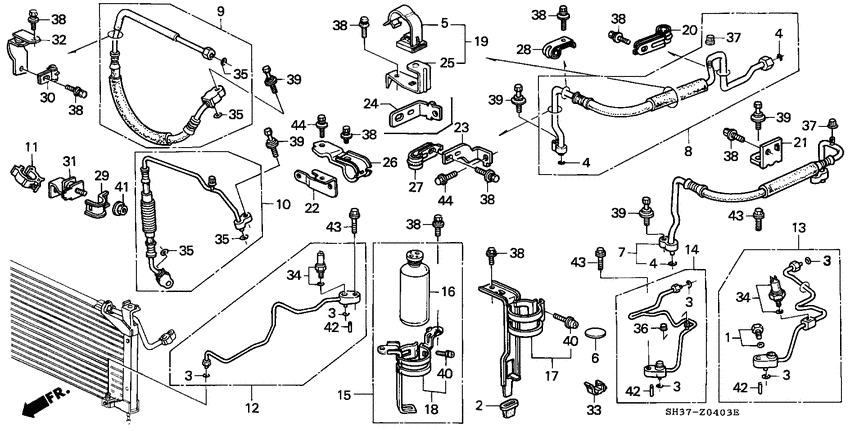

Air conditioner (HOSES/PIPES; RH; '89-) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 3
- grade
- GL
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
3
|
3
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
4
|
4
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
5
|
5
38677-SB2-003
Clamp
|
38677-SB2-003 |
— | ||
|
6
|
6
75826-SB3-300 SealDASHBOARD UPPER HOLE, 30MM |
75826-SB3-300 |
US $2.66 |
||
|
8
|
8
80311-SH3-013
Hose comp.
|
80311-SH3-013 |
— | ||
|
10
|
10
80315-SH3-033
Hose comp.
|
80315-SH3-033 |
— | ||
|
11
|
11
80318-SH3-003 Clamp bDISCHARGE HOSE |
80318-SH3-003 |
US $3.78 |
||
|
12
|
12
80331-SH3-023
Pipe
|
80331-SH3-023 |
— | ||
|
14
|
14
80341-SH3-902
Pipe
|
80341-SH3-902 |
— | ||
|
15
|
15
80350-SJ4-000
Receiver assy
|
80350-SJ4-000 |
— | ||
|
16
|
16
80351-SJ4-003
Receiver comp
|
80351-SJ4-003 |
— | ||
|
18
|
18
80352-SH3-010
Bracket
|
80352-SH3-010 |
— | ||
|
19
|
19
80360-SJ4-000
Stay comp
|
80360-SJ4-000 |
— | ||
|
20
|
20
80361-SH3-010
Bracket
|
80361-SH3-010 |
— | ||
|
25
|
25
80363-SH3-000
Stay b
|
80363-SH3-000 |
— | ||
|
29
|
29
80371-SH3-J00
Clamp
|
80371-SH3-J00 |
— | ||
|
31
|
31
80375-SH3-J00
Rubber
|
80375-SH3-J00 |
— | ||
|
33
|
33
80382-SH3-003
Clip
|
80382-SH3-003 |
— | ||
|
34
|
34
80440-SE0-003
Switch
|
80440-SE0-003 |
— | ||
|
35
|
35
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
36
|
36
91638-SF1-013
Cap
|
91638-SF1-013 |
— | ||
|
37
|
37
91639-SF1-003
Cap
|
91639-SF1-003 |
— | ||
|
38
|
38
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
39
|
39
93403-080-350-8 Bolt-washer8X35 |
93403-080-350-8 |
US $0.81 |
||
|
40
|
40
93893-050-200-8 Screw-washer5X20 |
93893-050-200-8 |
from US $0.52 |
||
|
41
|
41
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
42
|
42
94305-30102 PinSPRING, 3X10 |
94305-30102 |
from US $0.65 |
||
|
43
|
43
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
44
|
44
95701-100-200-8 BoltFLANGE, 10X20 |
95701-100-200-8 |
from US $0.74 |
||
