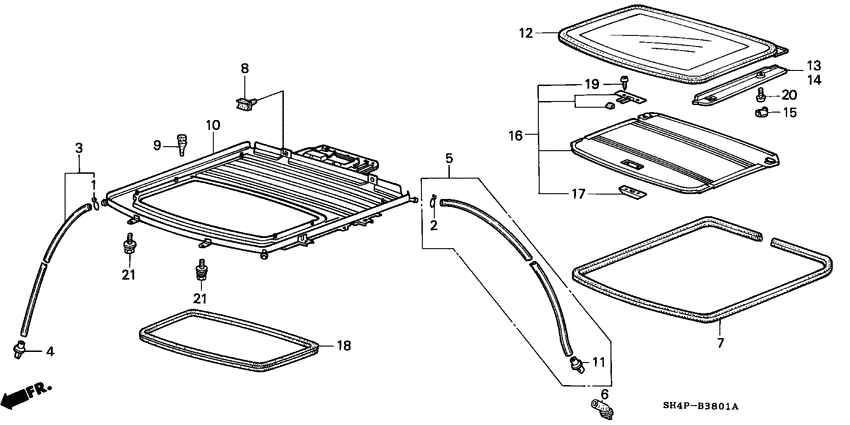

Sliding roof (1) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D12B
- transmission
- 4AT
- Number of doors
- 4
- grade
- DX 1200
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
2
|
2
18534-634-670 ClipAIR HOSE, 16MM |
18534-634-670 |
from US $1.68 |
||
|
3
|
3
70050-SH3-000
Tube
|
70050-SH3-000 |
— | ||
|
4
|
4
70052-SH3-000
Valve
|
70052-SH3-000 |
— | ||
|
5
|
5
70060-SH3-000
Tube
|
70060-SH3-000 |
— | ||
|
6
|
6
70062-SH3-000
Valve
|
70062-SH3-000 |
— | ||
|
7
|
7
70080-SH3-003
Seal
|
70080-SH3-003 |
— | ||
|
8
|
8
70090-SG0-000
Stopper
|
70090-SG0-000 |
— | ||
|
9
|
9
70091-SH3-000
Stopper
|
70091-SH3-000 |
— | ||
|
10
|
10
70100-SH3-000
Frame comp
|
70100-SH3-000 |
— | ||
|
11
|
11
70176-693-920
Valve
|
70176-693-920 |
— | ||
|
12
|
12
70200-SH4-000 Glass assyROOF (SUNROOF) |
70200-SH4-000 |
US $560.64 |
||
|
13
|
13
70620-SH4-000
Cover
|
70620-SH4-000 |
— | ||
|
14
|
14
70625-SH4-000
Cover
|
70625-SH4-000 |
— | ||
|
15
|
15
71986-692-920
Cap
|
71986-692-920 |
— | ||
|
16
|
16
83210-SH4-020ZB
Sunshade assy. *yr114l*
|
83210-SH4-020ZB |
— | ||
|
16
|
16
83210-SH4-020ZA
Sunshade assy. *b46l*
|
83210-SH4-020ZA |
— | ||
|
16
|
16
83210-SH4-020ZC
Sunshade assy. *nh91l*
|
83210-SH4-020ZC |
— | ||
|
17
|
17
83214-SF1-000ZA
Handle *nh91l*
|
83214-SF1-000ZA |
— | ||
|
17
|
17
83214-SF1-000ZC
Handle *yr114l*
|
83214-SF1-000ZC |
— | ||
|
17
|
17
83214-SF1-000ZB
Handle *b46l*
|
83214-SF1-000ZB |
— | ||
|
18
|
18
83250-SH3-000ZA
Trim
|
83250-SH3-000ZA |
— | ||
|
18
|
18
83250-SH3-000ZC
Trim
|
83250-SH3-000ZC |
— | ||
|
18
|
18
83250-SH3-000ZB
Trim
|
83250-SH3-000ZB |
— | ||
|
19
|
19
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
19
|
19
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
20
|
20
90110-SH3-000 ScrewPAN, 5X8 (STAY COVER) |
90110-SH3-000 |
from US $2.16 |
||
|
21
|
21
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
21
|
21
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
