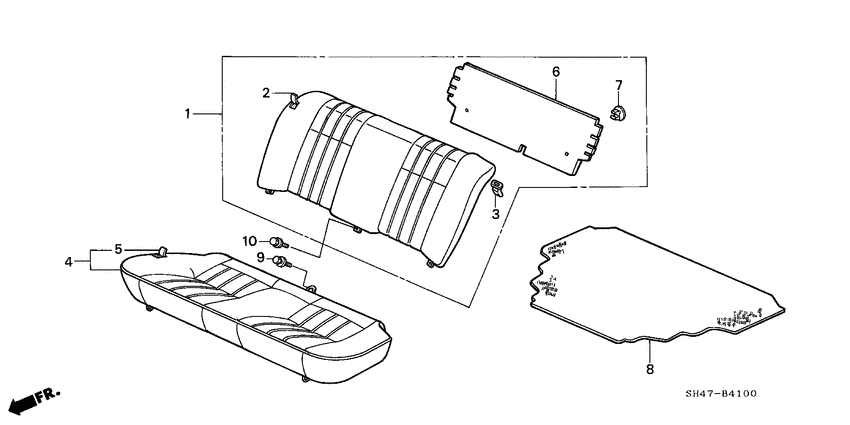

Rear seat (1) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D12B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82120-SH4-B01ZB Seatback assy.RR. *YR132L* |
82120-SH4-B01ZB |
US $903.68 |
||
|
1
|
1
82120-SH4-B01ZC Seatback assy.RR. *NH154L* |
82120-SH4-B01ZC |
US $903.68 |
||
|
2
|
2
82121-SH4-B01ZB
Cover
|
82121-SH4-B01ZB |
— | ||
|
2
|
2
82121-SH4-B01ZC
Cover
|
82121-SH4-B01ZC |
— | ||
|
3
|
3
82127-SH4-003 CollarRR. SEATBACK SETTING |
82127-SH4-003 |
US $3.71 |
||
|
4
|
4
82130-SH4-B01ZC Cushion assyRR. SEAT *NH154L* |
82130-SH4-B01ZC |
US $903.68 |
||
|
4
|
4
82130-SH4-B01ZB Cushion assyRR. SEAT *YR132L* |
82130-SH4-B01ZB |
US $903.68 |
||
|
5
|
5
82131-SH4-B01ZC CoverRR. SEAT CUSHION TRIM *NH154L* |
82131-SH4-B01ZC |
US $527.36 |
||
|
5
|
5
82131-SH4-B01ZB CoverRR. SEAT CUSHION TRIM *YR132L* |
82131-SH4-B01ZB |
US $527.36 |
||
|
6
|
6
82325-SH4-A01ZA
Cover
|
82325-SH4-A01ZA |
— | ||
|
7
|
7
82326-SE3-003ZE
Clip
|
82326-SE3-003ZE |
— | ||
|
8
|
8
84630-SH4-900ZA MatTRUNK FLOOR *NH85L* |
84630-SH4-900ZA |
US $131.84 |
||
|
9
|
9
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
10
|
10
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
10
|
10
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
