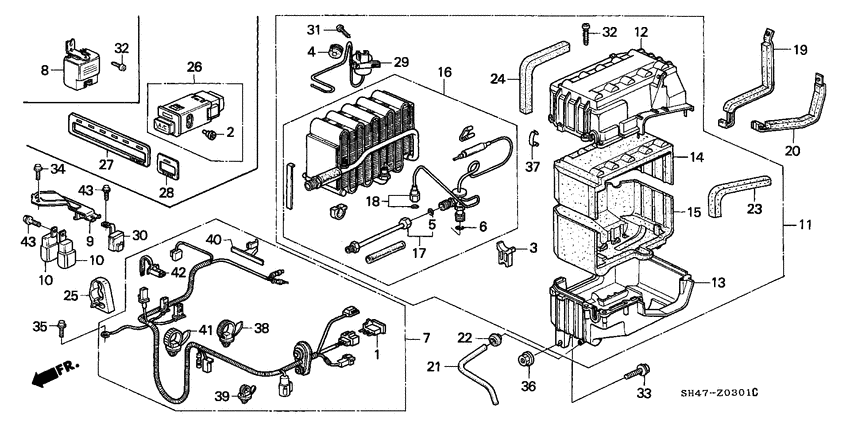

Air conditioner (UNIT; RH) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 4
- grade
- GL
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
35851-SB2-003 BulbNEO WEDGE (14V 65MA) |
35851-SB2-003 |
US $3.26 |
||
|
3
|
3
38625-SB2-000 HolderEVAPORATOR PIPE |
38625-SB2-000 |
US $2.45 |
||
|
4
|
4
38625-692-000
Grommet
|
38625-692-000 |
— | ||
|
5
|
5
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
5
|
5
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
6
|
6
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
7
|
7
38710-SH3-E00
Harness
|
38710-SH3-E00 |
— | ||
|
8
|
8
39400-SB2-013
Control assy.
|
39400-SB2-013 |
— | ||
|
9
|
9
39402-SH3-000
Bracket
|
39402-SH3-000 |
— | ||
|
10
|
10
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
11
|
11
80200-SH3-000
Cooling unit
|
80200-SH3-000 |
— | ||
|
12
|
12
80201-SH3-000
Case
|
80201-SH3-000 |
— | ||
|
13
|
13
80202-SH3-000
Case
|
80202-SH3-000 |
— | ||
|
14
|
14
80205-SH3-000 InsulatorEVAPORATOR UPPER |
80205-SH3-000 |
US $14.72 |
||
|
15
|
15
80206-SH3-000 InsulatorEVAPORATOR LOWER |
80206-SH3-000 |
US $14.72 |
||
|
16
|
16
80210-SH3-003 Evaporator sub assy. |
80210-SH3-003 |
US $501.76 |
||
|
17
|
17
80216-SH3-003
Pipe
|
80216-SH3-003 |
— | ||
|
18
|
18
80220-SH3-003
Valve assy.
|
80220-SH3-003 |
— | ||
|
19
|
19
80261-SH3-000
Band a
|
80261-SH3-000 |
— | ||
|
20
|
20
80265-SH3-000 Band bAIR CONDITIONER |
80265-SH3-000 |
US $14.08 |
||
|
21
|
21
80271-SH3-000
Hose
|
80271-SH3-000 |
— | ||
|
22
|
22
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
23
|
23
80286-SH3-000 SealEVAPORATOR INNER |
80286-SH3-000 |
US $7.14 |
||
|
24
|
24
80287-SH3-000 SealEVAPORATOR OUTER |
80287-SH3-000 |
US $7.14 |
||
|
25
|
25
80388-SH3-003
Clamp
|
80388-SH3-003 |
— | ||
|
26
|
26
80410-SH3-013
Switch assy
|
80410-SH3-013 |
— | ||
|
28
|
28
80411-SH3-003
Panel
|
80411-SH3-003 |
— | ||
|
29
|
29
80430-SF1-003
Thermostat
|
80430-SF1-003 |
— | ||
|
30
|
30
80680-SH3-003
Diode assy
|
80680-SH3-003 |
— | ||
|
31
|
31
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
31
|
31
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
32
|
32
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
32
|
32
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
33
|
33
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
34
|
34
90136-SH3-000
Bolt-washer
|
90136-SH3-000 |
— | ||
|
35
|
35
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
37
|
37
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
38
|
38
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
39
|
39
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
40
|
40
91557-SH3-003 ClipWIRE HARNESS (BLACK) (54MM) |
91557-SH3-003 |
US $1.82 |
||
|
42
|
42
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
43
|
43
93892-060-100-8 Screw-washer6X10 |
93892-060-100-8 |
US $0.56 |
||
