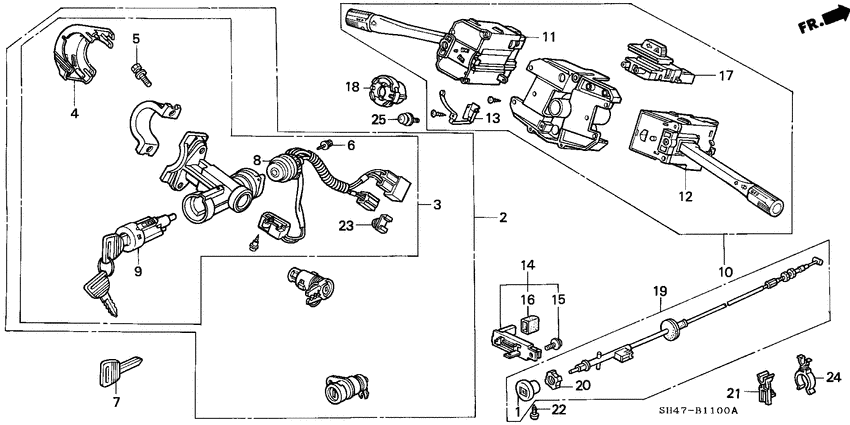

Combination switch Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 4
- grade
- GL
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17951-SB1-010
Knob
|
17951-SB1-010 |
— | ||
|
2
|
2
35010-SH4-E00 Cylinder setKEY |
35010-SH4-E00 |
US $293.12 |
||
|
3
|
3
35100-SH3-E01
Lock assy
|
35100-SH3-E01 |
— | ||
|
4
|
4
35101-SF4-003 CoverHOLDER |
35101-SF4-003 |
US $5.74 |
||
|
5
|
5
35102-SA5-003 BoltBREAK HEAD |
35102-SA5-003 |
US $2 |
||
| replacement | |||||
|
5
|
5
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
6
|
6
35103-SA5-003
Screw
|
35103-SA5-003 |
— | ||
|
7
|
7
35113-SH3-G01 KeyBLANK (MAIN) |
35113-SH3-G01 |
US $12.04 |
||
|
8
|
8
35130-SH3-003
Switch comp
|
35130-SH3-003 |
— | ||
|
9
|
9
35131-SH3-G01
Cylinder comp
|
35131-SH3-G01 |
— | ||
|
10
|
10
35250-SH3-E21
Switch assy
|
35250-SH3-E21 |
— | ||
|
11
|
11
35255-SH3-E01
Switch assy
|
35255-SH3-E01 |
— | ||
|
12
|
12
35256-SH3-E21
Switch assy
|
35256-SH3-E21 |
— | ||
|
13
|
13
35259-SH3-003
Shoe
|
35259-SH3-003 |
— | ||
|
14
|
14
35400-692-033
Switch assy
|
35400-692-033 |
— | ||
|
15
|
15
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
16
|
16
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
17
|
17
35510-SH3-003
Switch assy
|
35510-SH3-003 |
— | ||
|
18
|
18
53271-SF1-003
Cam
|
53271-SF1-003 |
— | ||
|
19
|
19
78450-SH3-E22
Wire comp
00000000 - 0S007865 |
78450-SH3-E22 |
— | ||
|
19
|
19
78450-SH3-E23
Wire comp
0S007866 - |
78450-SH3-E23 |
— | ||
|
20
|
20
78457-SE3-000
Nut
|
78457-SE3-000 |
— | ||
|
22
|
22
90130-SA0-003
Screw
|
90130-SA0-003 |
— | ||
|
25
|
25
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
