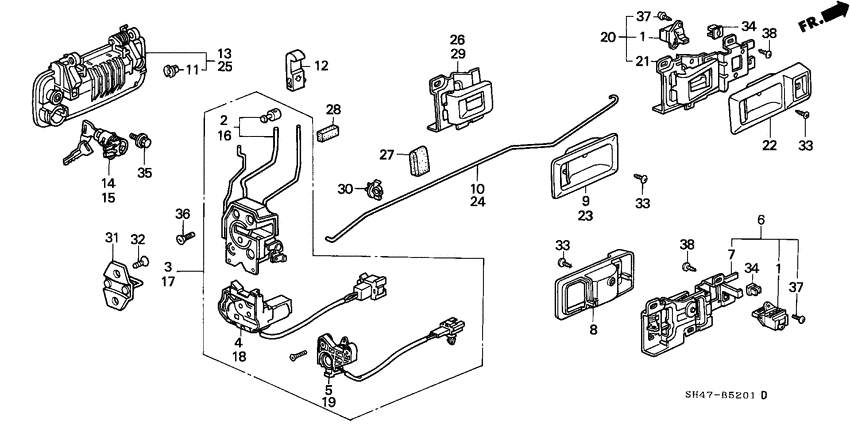

Front door locks Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 4
- grade
- GL
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35765-SH3-013
Sub switch comp.
|
35765-SH3-013 |
— | ||
|
2
|
2
72110-SH4-G04
Lock assy
|
72110-SH4-G04 |
— | ||
|
3
|
3
72110-SH4-J14
Lock assy
|
72110-SH4-J14 |
— | ||
|
4
|
4
72115-SH4-J02
Actuator
|
72115-SH4-J02 |
— | ||
|
6
|
6
72120-SH4-J02ZF
Handle assy
|
72120-SH4-J02ZF |
— | ||
|
6
|
6
72120-SH4-J02ZA
Handle assy
|
72120-SH4-J02ZA |
— | ||
|
7
|
7
72121-SH4-J02ZF
Handle assy
|
72121-SH4-J02ZF |
— | ||
|
7
|
7
72121-SH4-J02ZD
Handle assy
|
72121-SH4-J02ZD |
— | ||
|
8
|
8
72125-SH4-J02ZH
Case comp.
|
72125-SH4-J02ZH |
— | ||
|
8
|
8
72125-SH4-J02ZC
Case comp.
|
72125-SH4-J02ZC |
— | ||
|
9
|
9
72125-SH4-004ZC
Case
|
72125-SH4-004ZC |
— | ||
|
9
|
9
72125-SH4-004ZH
Case
|
72125-SH4-004ZH |
— | ||
|
10
|
10
72131-SH4-004
Rod
|
72131-SH4-004 |
— | ||
|
11
|
11
72134-SM1-003 BushOUTSIDE HANDLE JOINT |
72134-SM1-003 |
from US $1.30 |
||
|
12
|
12
72137-SE3-003ZP
Knob
|
72137-SE3-003ZP |
— | ||
|
12
|
12
72137-SE3-003ZB KnobDOOR INSIDE LOCK *NH89L* |
72137-SE3-003ZB |
US $4.62 |
||
|
13
|
13
72140-SH3-004
Handle assy
|
72140-SH3-004 |
— | ||
|
14
|
14
72145-SH3-023
Cylinder
|
72145-SH3-023 |
— | ||
|
15
|
15
72146-SH3-023
Cylinder
|
72146-SH3-023 |
— | ||
|
16
|
16
72150-SH4-G04
Lock assy
|
72150-SH4-G04 |
— | ||
|
17
|
17
72150-SH4-J04
Lock assy
|
72150-SH4-J04 |
— | ||
|
19
|
19
72156-SH4-J02
Switch assy
|
72156-SH4-J02 |
— | ||
|
23
|
23
72165-SH4-004ZC
Case
|
72165-SH4-004ZC |
— | ||
|
23
|
23
72165-SH4-004ZF
Case
|
72165-SH4-004ZF |
— | ||
|
24
|
24
72171-SH4-004
Rod
|
72171-SH4-004 |
— | ||
|
25
|
25
72180-SH3-004
Handle assy
|
72180-SH3-004 |
— | ||
|
26
|
26
75510-SB4-014ZC
Handle assy
|
75510-SB4-014ZC |
— | ||
|
26
|
26
75510-SB4-014ZG
Handle assy
|
75510-SB4-014ZG |
— | ||
|
27
|
27
75513-SB2-000 CushionLOCK ROD (35MMX58MM) |
75513-SB2-000 |
US $2.24 |
||
|
28
|
28
75513-SB4-000
Cushion
|
75513-SB4-000 |
— | ||
|
29
|
29
75520-SB4-014ZC
Handle assy
|
75520-SB4-014ZC |
— | ||
|
29
|
29
75520-SB4-014ZG
Handle assy
|
75520-SB4-014ZG |
— | ||
|
30
|
30
72175-SH3-003 HolderDOOR LOCK ROD |
72175-SH3-003 |
US $2.37 |
||
|
31
|
31
72105-SF1-003
Striker
|
72105-SF1-003 |
— | ||
|
32
|
32
75556-605-010 BoltLOCK STRIKER |
75556-605-010 |
from US $1.92 |
||
|
33
|
33
90111-SA0-000 ScrewTAPPING, 4X8 |
90111-SA0-000 |
US $3.40 |
||
|
34
|
34
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
35
|
35
93493-060-100-8 Bolt-washer6X10 |
93493-060-100-8 |
US $0.59 |
||
|
36
|
36
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
37
|
37
93600-030-141-H ScrewFLAT, 3X14 |
93600-030-141-H |
US $0.37 |
||
|
38
|
38
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
