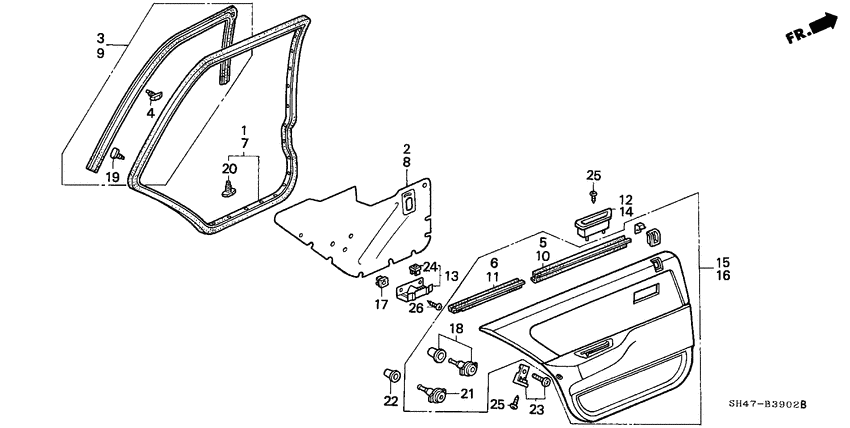

Rear door lining Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-SH4-004
Weatherstrip
|
72810-SH4-004 |
— | ||
|
2
|
2
72821-SH4-000
Seal
|
72821-SH4-000 |
— | ||
|
2
|
2
72821-SH4-J00
Seal
|
72821-SH4-J00 |
— | ||
|
3
|
3
72825-SH4-003
Sub seal
|
72825-SH4-003 |
— | ||
|
4
|
4
72827-SH4-003
Clip
|
72827-SH4-003 |
— | ||
|
5
|
5
72835-SH4-000
Weatherstrip
|
72835-SH4-000 |
— | ||
|
6
|
6
72837-SH4-000
Weatherstrip
|
72837-SH4-000 |
— | ||
|
7
|
7
72850-SH4-004
Weatherstrip
|
72850-SH4-004 |
— | ||
|
8
|
8
72861-SH4-J00
Seal
|
72861-SH4-J00 |
— | ||
|
9
|
9
72865-SH4-003
Sub seal
|
72865-SH4-003 |
— | ||
|
10
|
10
72875-SH4-000
Weatherstrip
|
72875-SH4-000 |
— | ||
|
11
|
11
72877-SH4-000
Weatherstrip
|
72877-SH4-000 |
— | ||
|
12
|
12
83501-SH4-000ZC
Pocket
|
83501-SH4-000ZC |
— | ||
|
12
|
12
83501-SH4-000ZB PocketR. DOOR PULL *YR89L* |
83501-SH4-000ZB |
US $13.30 |
||
|
13
|
13
83508-SH4-000
Bracket
|
83508-SH4-000 |
— | ||
|
14
|
14
83551-SH4-000ZC
Pocket
|
83551-SH4-000ZC |
— | ||
|
14
|
14
83551-SH4-000ZB PocketL. DOOR PULL *YR89L* |
83551-SH4-000ZB |
US $13.30 |
||
|
15
|
15
83700-SH4-G70ZB Lining assy.R. RR. DOOR (P.W.) *NH89L/NH154L* |
83700-SH4-G70ZB |
US $147.20 |
||
|
15
|
15
83700-SH4-W50ZB
Lining assy.
|
83700-SH4-W50ZB |
— | ||
|
15
|
15
83700-SH4-G70ZA
Lining assy.
|
83700-SH4-G70ZA |
— | ||
|
15
|
15
83700-SH4-W50ZA
Lining assy.
|
83700-SH4-W50ZA |
— | ||
|
16
|
16
83750-SH4-G70ZB Lining assy.L. RR. DOOR (P.W.) *NH89L/NH154L* |
83750-SH4-G70ZB |
US $147.20 |
||
|
16
|
16
83750-SH4-W50ZB
Lining assy.
|
83750-SH4-W50ZB |
— | ||
|
16
|
16
83750-SH4-G70ZA
Lining assy.
|
83750-SH4-G70ZA |
— | ||
|
16
|
16
83750-SH4-W50ZA
Lining assy.
|
83750-SH4-W50ZA |
— | ||
|
17
|
17
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
18
|
18
90663-671-003
Clip
|
90663-671-003 |
— | ||
|
19
|
19
91530-SE0-003
Clip A
|
91530-SE0-003 |
— | ||
| replacement | |||||
|
19
|
19
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
20
|
20
91530-SH4-003 ClipDOOR WEATHERSTRIP |
91530-SH4-003 |
US $2.10 |
||
|
21
|
21
91556-SH3-003
Clip
|
91556-SH3-003 |
— | ||
|
22
|
22
91558-SH3-003
Cap
|
91558-SH3-003 |
— | ||
|
23
|
23
91642-SH3-013
Grommet
|
91642-SH3-013 |
— | ||
|
24
|
24
91660-SH4-000
Grommet
|
91660-SH4-000 |
— | ||
|
25
|
25
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
26
|
26
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
