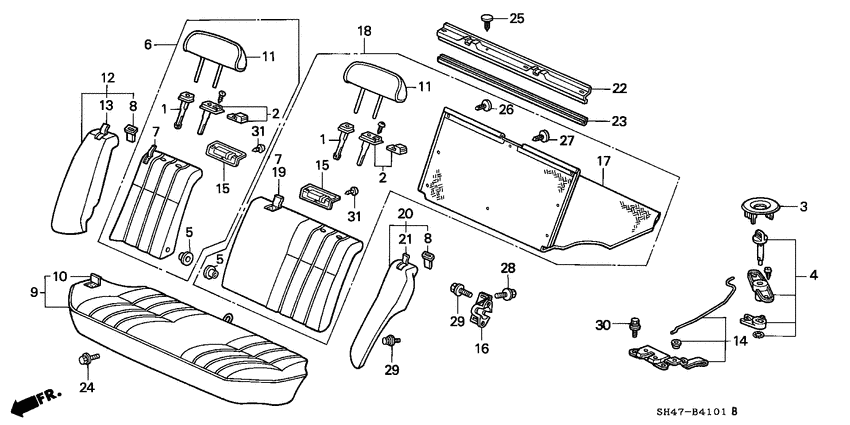

Rear seat (2) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77583-SB3-003ZP GuideHEADREST FREE *YR89L* |
77583-SB3-003ZP |
US $7.70 |
||
|
1
|
1
77583-SB3-003ZM
Guide
|
77583-SB3-003ZM |
— | ||
|
2
|
2
77584-SB3-003ZQ
Guide comp
|
77584-SB3-003ZQ |
— | ||
|
2
|
2
77584-SB3-003ZM
Guide comp
|
77584-SB3-003ZM |
— | ||
|
3
|
3
82227-SH4-000ZB GarnishRR. SEAT LOCK *YR89L* 0S102571 - |
82227-SH4-000ZB |
US $4.76 |
||
|
3
|
3
78165-SB0-670ZD
Garnish
00000000 - 0S102570 |
78165-SB0-670ZD |
— | ||
|
3
|
3
78165-SB0-670ZB GarnishRR. SEAT LOCK *YR89L* 00000000 - 0S102570 |
78165-SB0-670ZB |
US $3.78 |
||
|
3
|
3
82227-SH4-000ZD GarnishRR. SEAT LOCK *NH89L* 0S102571 - |
82227-SH4-000ZD |
US $4.76 |
||
|
4
|
4
82223-SH4-000ZB Knob assyRR. SEAT *YR89L* |
82223-SH4-000ZB |
US $9.10 |
||
|
4
|
4
82223-SH4-000ZC Knob assyRR. SEAT *NH89L* |
82223-SH4-000ZC |
US $9.10 |
||
|
6
|
6
82120-SH4-W21ZB
Seatback assy.
|
82120-SH4-W21ZB |
— | ||
|
6
|
6
82120-SH4-W21ZA
Seatback assy.
|
82120-SH4-W21ZA |
— | ||
|
7
|
7
82121-SH4-W21ZB
Cover
|
82121-SH4-W21ZB |
— | ||
|
7
|
7
82121-SH4-W21ZA
Cover
|
82121-SH4-W21ZA |
— | ||
|
8
|
8
82127-SH4-003 CollarRR. SEATBACK SETTING |
82127-SH4-003 |
US $3.71 |
||
|
9
|
9
82130-SH4-W21ZB Cushion assyRR. SEAT *NH154L* |
82130-SH4-W21ZB |
US $903.68 |
||
|
9
|
9
82130-SH4-W21ZA Cushion assyRR. SEAT *YR118L* |
82130-SH4-W21ZA |
US $903.68 |
||
|
10
|
10
82131-SH4-W21ZA
Cover
|
82131-SH4-W21ZA |
— | ||
|
10
|
10
82131-SH4-W21ZB
Cover
|
82131-SH4-W21ZB |
— | ||
|
11
|
11
82140-SH4-W21ZA Pillow assy.RR. SEAT *YR118L* |
82140-SH4-W21ZA |
US $161.28 |
||
|
11
|
11
82140-SH4-W21ZB Pillow assy.RR. SEAT *NH154L* |
82140-SH4-W21ZB |
US $161.28 |
||
|
12
|
12
82150-SH4-J21ZB Seatback assy.R. RR. SIDE *NH154L* |
82150-SH4-J21ZB |
US $177.92 |
||
|
12
|
12
82150-SH4-J21ZA Seatback assy.R. RR. SIDE *YR118L* |
82150-SH4-J21ZA |
US $177.92 |
||
|
13
|
13
82151-SH4-J21ZB
Cover
|
82151-SH4-J21ZB |
— | ||
|
13
|
13
82151-SH4-J21ZA
Cover
|
82151-SH4-J21ZA |
— | ||
|
14
|
14
82220-SH4-J31
Lock assy
|
82220-SH4-J31 |
— | ||
|
15
|
15
82228-SH4-003ZE
Garnish
|
82228-SH4-003ZE |
— | ||
|
16
|
16
82290-SH4-013
Bracket comp.
|
82290-SH4-013 |
— | ||
|
17
|
17
82320-SH4-G00ZC
Mat
|
82320-SH4-G00ZC |
— | ||
|
18
|
18
82520-SH4-W21ZB Seatback assy.L. RR. *NH154L* |
82520-SH4-W21ZB |
US $793.60 |
||
|
18
|
18
82520-SH4-W21ZA
Seatback assy.
|
82520-SH4-W21ZA |
— | ||
|
19
|
19
82521-SH4-W21ZB
Cover
|
82521-SH4-W21ZB |
— | ||
|
19
|
19
82521-SH4-W21ZA
Cover
|
82521-SH4-W21ZA |
— | ||
|
20
|
20
82550-SH4-J21ZB Seatback assy.L. RR. SIDE *NH154L* |
82550-SH4-J21ZB |
US $177.92 |
||
|
20
|
20
82550-SH4-J21ZA Seatback assy.L. RR. SIDE *YR118L* |
82550-SH4-J21ZA |
US $177.92 |
||
|
21
|
21
82551-SH4-J21ZB
Cover
|
82551-SH4-J21ZB |
— | ||
|
21
|
21
82551-SH4-J21ZA
Cover
|
82551-SH4-J21ZA |
— | ||
|
22
|
22
84512-SH4-G00ZB
Cover
|
84512-SH4-G00ZB |
— | ||
|
22
|
22
84512-SH4-G00ZA
Cover
|
84512-SH4-G00ZA |
— | ||
|
23
|
23
84513-SH4-000ZC
Trim
|
84513-SH4-000ZC |
— | ||
|
23
|
23
84513-SH4-000ZB
Trim
|
84513-SH4-000ZB |
— | ||
|
24
|
24
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
25
|
25
90666-SA7-003ZM ClipTRIM, 5MM *NH89L* |
90666-SA7-003ZM |
US $1.75 |
||
|
25
|
25
90666-SA7-003ZQ
Clip
|
90666-SA7-003ZQ |
— | ||
|
26
|
26
90667-SA7-003A2
Clip
|
90667-SA7-003A2 |
— | ||
|
27
|
27
90668-SH4-003ZA
Clip
|
90668-SH4-003ZA |
— | ||
|
28
|
28
93403-060-160-7 Bolt-washer6X16 |
93403-060-160-7 |
from US $0.59 |
||
|
29
|
29
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
30
|
30
93413-060-160-8 Bolt-washer6X16 |
93413-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
93903-44280 ScrewTAPPING, 4X10 |
93903-44280 |
from US $0.37 |
||
