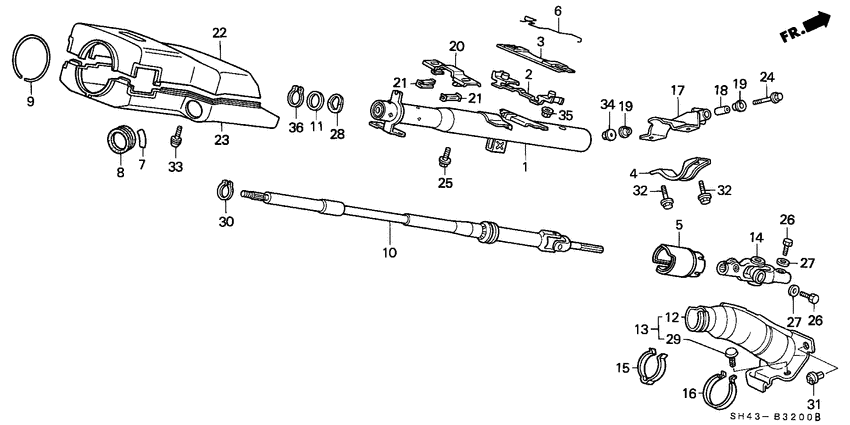

Steering column (1) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53210-SH3-901 ColumnSTEERING |
53210-SH3-901 |
US $101.76 |
||
|
2
|
2
53211-SH3-010
Holder
|
53211-SH3-010 |
— | ||
|
3
|
3
53212-SH3-010
Plate comp
|
53212-SH3-010 |
— | ||
|
4
|
4
53216-SH3-000
Holder b
|
53216-SH3-000 |
— | ||
|
5
|
5
53217-SH3-000
Collar
|
53217-SH3-000 |
— | ||
|
6
|
6
53218-SH3-010
Spring
|
53218-SH3-010 |
— | ||
|
7
|
7
53231-SB2-000 LabelIGNITION SWITCH |
53231-SB2-000 |
US $1.82 |
||
|
8
|
8
53235-SA5-010
Ring
|
53235-SA5-010 |
— | ||
|
9
|
9
53239-SB2-000
Clip
|
53239-SB2-000 |
— | ||
|
10
|
10
53310-SH3-A01
Shaft comp.
|
53310-SH3-A01 |
— | ||
|
11
|
11
53311-692-000
Washer
|
53311-692-000 |
— | ||
|
13
|
13
53320-SH3-G04
Cover
|
53320-SH3-G04 |
— | ||
|
14
|
14
53323-SF4-003
Joint comp. b
|
53323-SF4-003 |
— | ||
|
15
|
15
53325-SH3-000 Clip AJOINT COVER |
53325-SH3-000 |
US $10.42 |
||
|
16
|
16
53326-SB0-000 Clip bJOINT COVER |
53326-SB0-000 |
US $3.64 |
||
|
17
|
17
53363-SH3-A02
Pivot
|
53363-SH3-A02 |
— | ||
|
18
|
18
53364-SA0-960
Collar
|
53364-SA0-960 |
— | ||
|
19
|
19
53365-SA0-961 BushPIVOT |
53365-SA0-961 |
US $7.42 |
||
|
20
|
20
53368-SH3-020
Guide
|
53368-SH3-020 |
— | ||
|
21
|
21
53369-SH3-010
Guide
|
53369-SH3-010 |
— | ||
|
22
|
22
77351-SH3-A01ZA
Cover
|
77351-SH3-A01ZA |
— | ||
|
23
|
23
77361-SH3-A01ZA
Cover
|
77361-SH3-A01ZA |
— | ||
|
24
|
24
90130-SB3-003 BoltPIVOT |
90130-SB3-003 |
US $3.29 |
||
|
25
|
25
90132-SH3-000 BoltSTEERING HANGER |
90132-SH3-000 |
US $2.31 |
||
|
26
|
26
90135-SB0-003 BoltSTEERING YOKE, 8X28 (NIPPON SEIKO) |
90135-SB0-003 |
from US $0.77 |
||
|
27
|
27
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $0.19 |
||
|
28
|
28
90551-SE0-000 WasherSPRING, 24X18 |
90551-SE0-000 |
US $4.66 |
||
|
29
|
29
90654-SA5-003 ClipJOINT COVER |
90654-SA5-003 |
US $4.40 |
||
|
30
|
30
90661-SE0-003
Circlip
|
90661-SE0-003 |
— | ||
|
31
|
31
91517-SE0-003 ClipLOWER OUTER DASHBOARD INSULATOR |
91517-SE0-003 |
US $2.37 |
||
|
32
|
32
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
33
|
33
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
34
|
34
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
35
|
35
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
36
|
36
94510-18000 CirclipEXTERNAL, 18MM |
94510-18000 |
from US $0.45 |
