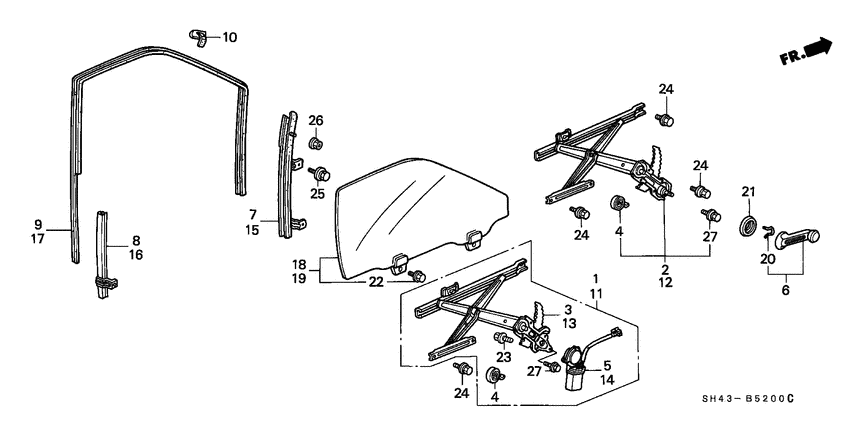

Front door windows Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72210-SH4-A01
Regulator assy
|
72210-SH4-A01 |
— | ||
|
3
|
3
72211-SH4-J01
Regulator
|
72211-SH4-J01 |
— | ||
|
5
|
5
72215-SH4-A01
Motor assy.
00000000 - JA055743 |
72215-SH4-A01 |
— | ||
|
5
|
5
72215-SH4-A02
Motor assy.
JA055744 - |
72215-SH4-A02 |
— | ||
|
7
|
7
72230-SH4-000
Sash
|
72230-SH4-000 |
— | ||
|
9
|
9
72235-SH4-J02 RunchannelR. FR. DOOR (NISHIKAWA) |
72235-SH4-J02 |
US $57.09 |
||
|
10
|
10
72246-SH4-003
Stopper
|
72246-SH4-003 |
— | ||
|
11
|
11
72250-SH4-A01
Regulator assy
|
72250-SH4-A01 |
— | ||
|
13
|
13
72251-SH4-J01
Regulator
|
72251-SH4-J01 |
— | ||
|
14
|
14
72255-SH4-A01
Motor assy.
00000000 - JA055743 |
72255-SH4-A01 |
— | ||
|
14
|
14
72255-SH4-A02
Motor assy.
JA055744 - |
72255-SH4-A02 |
— | ||
|
15
|
15
72270-SH4-000
Sash
|
72270-SH4-000 |
— | ||
|
17
|
17
72275-SH4-J02 RunchannelL. FR. DOOR (NISHIKAWA) |
72275-SH4-J02 |
US $57.09 |
||
|
18
|
18
73300-SH4-000 Glass assyR. FR. DOOR |
73300-SH4-000 |
US $177.92 |
||
|
19
|
19
73350-SH4-000 Glass assyL. FR. DOOR |
73350-SH4-000 |
US $177.92 |
||
|
22
|
22
90011-896-000 BoltFLANGE, 6X8 |
90011-896-000 |
US $3.98 |
||
|
24
|
24
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
24
|
24
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
25
|
25
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
25
|
25
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
26
|
26
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
27
|
27
90115-SG0-003 BoltFLANGE, 6MM |
90115-SG0-003 |
US $1.47 |
||
