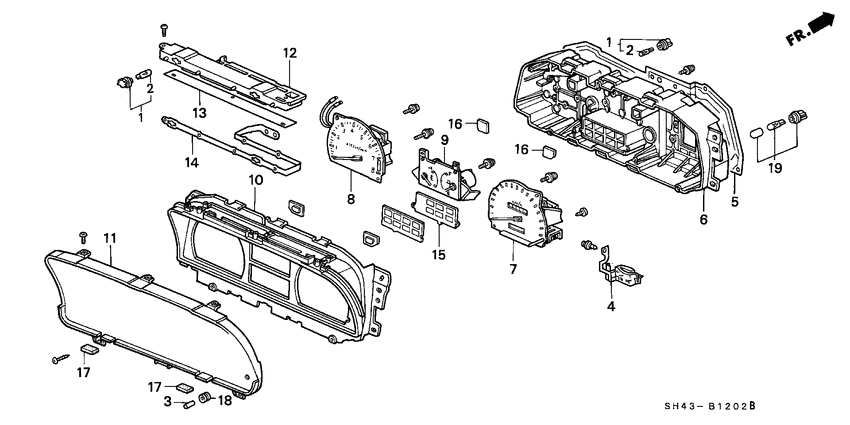

Meter components (ND) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-004 Bulb & socket14V 1.4W) (DENSO) (BASE:BLACK |
35505-SA5-004 |
US $3.50 |
||
|
2
|
2
35506-SA5-004 Bulb14V 1.4W) (DENSO |
35506-SA5-004 |
US $1.75 |
||
|
3
|
3
37106-SB2-004
Knob
|
37106-SB2-004 |
— | ||
|
5
|
5
78108-SH3-A02
Panel
|
78108-SH3-A02 |
— | ||
|
6
|
6
78110-SH3-014
Case
|
78110-SH3-014 |
— | ||
|
7
|
7
78115-SH3-A04
Speedometer assy
|
78115-SH3-A04 |
— | ||
|
8
|
8
78125-SH3-A04
Tachometer assy
|
78125-SH3-A04 |
— | ||
|
9
|
9
78130-SH3-004 Meter assyFUEL & TEMPERATURE (DENSO) |
78130-SH3-004 |
US $96.64 |
||
|
10
|
10
78155-SH3-004
Visor
|
78155-SH3-004 |
— | ||
|
11
|
11
78156-SH3-004
Lens
|
78156-SH3-004 |
— | ||
|
12
|
12
78166-SH3-004
Case
|
78166-SH3-004 |
— | ||
|
13
|
13
78167-SH3-004
Lens
|
78167-SH3-004 |
— | ||
|
14
|
14
78168-SH3-004
Panel
|
78168-SH3-004 |
— | ||
|
15
|
15
78171-SH3-A02 LensUNDER (DENSO) |
78171-SH3-A02 |
US $9.24 |
||
|
16
|
16
78172-SH3-004
Lens
|
78172-SH3-004 |
— | ||
|
17
|
17
78175-SE3-004 GrommetDENSO |
78175-SE3-004 |
US $1.82 |
||
|
18
|
18
78175-SH3-004 GrommetKNOB (DENSO) |
78175-SH3-004 |
US $2.59 |
||
|
19
|
19
78180-SH3-004
Socket assy
|
78180-SH3-004 |
— |
