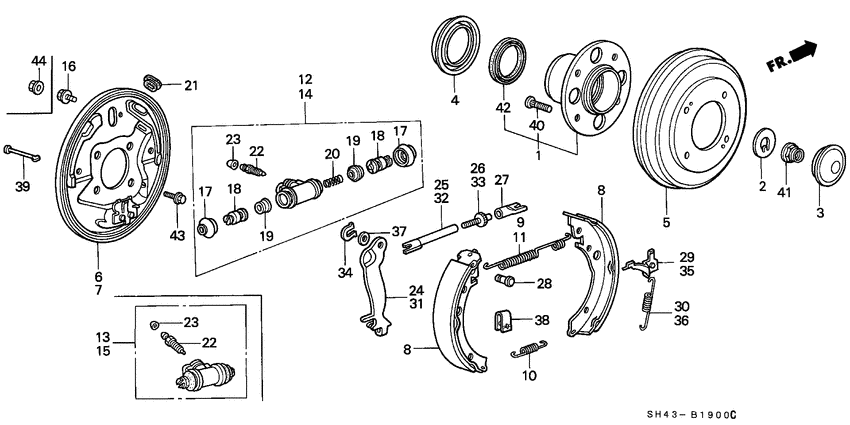

Rear brake Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42200-SB2-015 Bearing assyHUB UNIT (FUJIKOSHI) |
42200-SB2-015 |
US $143.36 |
||
|
1
|
1
42200-SB2-018 Bearing assyHUB UNIT (TOYO SEIKO) |
42200-SB2-018 |
US $143.36 |
||
|
2
|
2
42324-SB2-020
Washer
|
42324-SB2-020 |
— | ||
|
3
|
3
42326-SB2-000
Cap
|
42326-SB2-000 |
— | ||
| replacement | |||||
|
3
|
3
42326-SFA-000 CapHUB UNIT |
42326-SFA-000 |
from US $6.19 |
||
|
5
|
5
42610-SB2-010 DrumRR. BRAKE |
42610-SB2-010 |
US $240.72 |
||
|
6
|
6
43110-SH3-003
Plate comp
|
43110-SH3-003 |
— | ||
|
7
|
7
43120-SH3-003
Plate comp
|
43120-SH3-003 |
— | ||
|
8
|
8
43153-SH3-A01
Shoe comp
|
43153-SH3-A01 |
— | ||
|
9
|
9
43171-SC2-003
Spring a
|
43171-SC2-003 |
— | ||
|
10
|
10
43172-SA5-003
Spring b
|
43172-SA5-003 |
— | ||
|
11
|
11
43172-SC2-003
Spring a
|
43172-SC2-003 |
— | ||
|
12
|
12
43300-SB2-003
Cylinder assy.
|
43300-SB2-003 |
— | ||
|
14
|
14
43301-SB2-003
Cylinder assy.
|
43301-SB2-003 |
— | ||
|
17
|
17
43315-671-631
Cover
|
43315-671-631 |
— | ||
| replacement | |||||
|
17
|
17
43315-SN4-003 CoverDUST |
43315-SN4-003 |
from US $2.89 |
||
|
18
|
18
43321-SA3-681
Piston
|
43321-SA3-681 |
— | ||
|
19
|
19
43322-663-003 CupPISTON |
43322-663-003 |
from US $3.71 |
||
|
20
|
20
43323-663-003
Spring
|
43323-663-003 |
— | ||
|
21
|
21
43345-SA5-013 PlugADJUSTER |
43345-SA5-013 |
US $2.80 |
||
|
22
|
22
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
23
|
23
43353-548-003 CapBLEEDER SCREW |
43353-548-003 |
from US $2.25 |
||
|
24
|
24
43361-SH3-003 LeverR. PARKING BRAKE |
43361-SH3-003 |
US $21.35 |
||
|
25
|
25
43362-SC2-003 Rod aR. CONNECTING |
43362-SC2-003 |
from US $15.62 |
||
|
26
|
26
43363-SA5-003
Bolt
|
43363-SA5-003 |
— | ||
|
27
|
27
43364-SA5-003
Rod b
|
43364-SA5-003 |
— | ||
| replacement | |||||
|
27
|
27
43364-S5A-003 Rod bCONNECTING |
43364-S5A-003 |
US $6.35 |
||
|
28
|
28
43365-SA5-003 PinPARKING BRAKE LEVER |
43365-SA5-003 |
US $4.65 |
||
|
29
|
29
43366-SC2-013 Lever compR. ADJUSTER |
43366-SC2-013 |
US $13.02 |
||
|
30
|
30
43367-SC2-003
Spring
|
43367-SC2-003 |
— | ||
|
31
|
31
43371-SH3-003
Lever
|
43371-SH3-003 |
— | ||
|
32
|
32
43372-SC2-003 Rod aL. CONNECTING |
43372-SC2-003 |
US $17.41 |
||
|
33
|
33
43373-SA5-003 BoltL. ADJUSTER |
43373-SA5-003 |
US $13.61 |
||
|
34
|
34
43375-SA0-003
U-clip
|
43375-SA0-003 |
— | ||
|
35
|
35
43376-SC2-013
Lever comp
|
43376-SC2-013 |
— | ||
|
36
|
36
43377-SC2-003
Spring
|
43377-SC2-003 |
— | ||
|
37
|
37
43379-SC2-013
Washer
|
43379-SC2-013 |
— | ||
|
38
|
38
45172-SB2-661
Spring
|
45172-SB2-661 |
— | ||
|
39
|
39
45175-SA0-003 PinTENSIONER |
45175-SA0-003 |
US $2.24 |
||
|
40
|
40
90113-SA0-023 BoltWHEEL (TOKAI TRW) |
90113-SA0-023 |
US $2.96 |
||
| replacement | |||||
|
40
|
40
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
40
|
40
90113-SA0-015 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-015 |
US $2.96 |
||
| replacement | |||||
|
40
|
40
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
41
|
41
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
42
|
42
91252-SB2-013
Seal
|
91252-SB2-013 |
— | ||
|
43
|
43
93482-100-160-8 Bolt-washer10X16 |
93482-100-160-8 |
US $0.74 |
||
|
44
|
44
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
