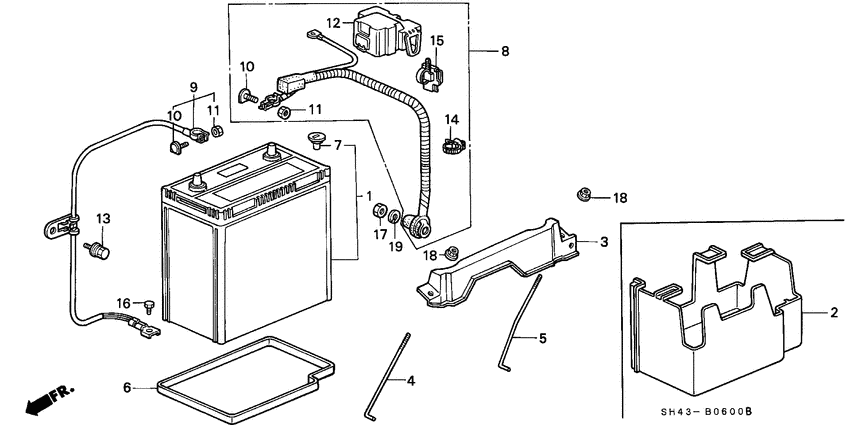

Battery/battery cable Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KL
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-SF7-671
Battery assy
|
31500-SF7-671 |
— | ||
|
3
|
3
31512-SH3-A00
Plate
|
31512-SH3-A00 |
— | ||
|
4
|
4
31513-SA5-670 BoltBATTERY SETTING, 225MM |
31513-SA5-670 |
from US $3.33 |
||
|
5
|
5
31513-SH3-000
Bolt
|
31513-SH3-000 |
— | ||
|
6
|
6
31521-SH3-010
Box assy
|
31521-SH3-010 |
— | ||
|
8
|
8
32410-SH3-P01
Cable assy
|
32410-SH3-P01 |
— | ||
|
9
|
9
32600-SH3-A01
Cable assy
|
32600-SH3-A01 |
— | ||
|
10
|
10
32601-SA5-003 BoltBATTERY TERMINAL (SUMITOMO) |
32601-SA5-003 |
from US $3.50 |
||
|
11
|
11
32602-SA5-003 NutBATTERY TERMINAL (SUMITOMO) |
32602-SA5-003 |
from US $2.24 |
||
|
13
|
13
90150-SB2-003 BoltEARTH, 8X20 (SN) |
90150-SB2-003 |
US $3.64 |
||
|
14
|
14
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
15
|
15
91568-SH3-003
Strap
|
91568-SH3-003 |
— | ||
|
16
|
16
92000-06008-08 BoltHEX., 6X8 |
92000-06008-08 |
from US $0.44 |
||
|
17
|
17
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
17
|
17
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
18
|
18
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
