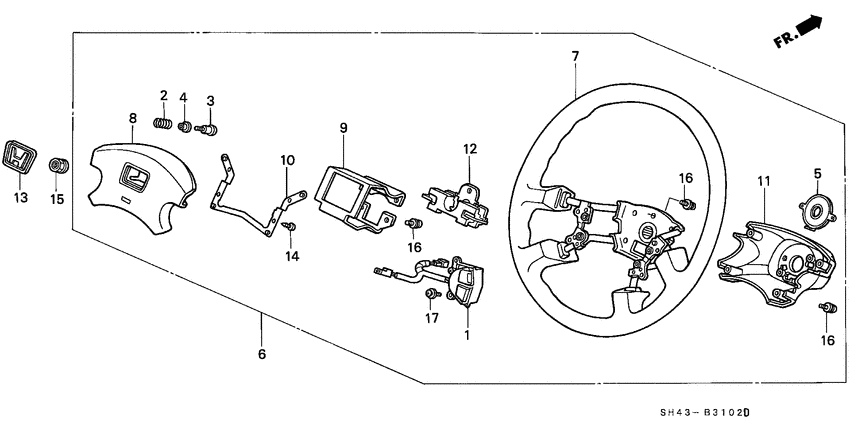

Steering wheel (3) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36770-SH4-A02
Switch assy
|
36770-SH4-A02 |
— | ||
|
3
|
3
53154-SB3-951
Screw
|
53154-SB3-951 |
— | ||
|
4
|
4
53156-SB3-961
Bush
|
53156-SB3-961 |
— | ||
|
6
|
6
78510-SH4-A13ZA
Wheel comp.
|
78510-SH4-A13ZA |
— | ||
|
7
|
7
78512-SH4-A02ZC
Wheel
|
78512-SH4-A02ZC |
— | ||
|
8
|
8
78513-SH4-A02ZC
Pad
|
78513-SH4-A02ZC |
— | ||
|
9
|
9
78516-SH4-A02
Bracket
|
78516-SH4-A02 |
— | ||
|
10
|
10
78517-SH4-A02
Plate
|
78517-SH4-A02 |
— | ||
|
11
|
11
78518-SH4-A12ZA
Cover
|
78518-SH4-A12ZA |
— | ||
|
12
|
12
78529-SH4-A02
Damper
|
78529-SH4-A02 |
— | ||
|
13
|
13
78531-SH3-004ZA EmblemSTEERING WHEEL (NIPPON PURASUTO) *NH1L* |
78531-SH3-004ZA |
US $14.85 |
||
|
14
|
14
90107-SA5-000
Screw
|
90107-SA5-000 |
— | ||
|
15
|
15
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
||
|
16
|
16
93891-040-101-7 Screw-washer4X10 |
93891-040-101-7 |
US $0.44 |
||
|
17
|
17
93891-040-101-8 Screw-washer4X10 |
93891-040-101-8 |
from US $0.44 |
||
| replacement | |||||
|
17
|
17
93891-040-100-8 Screw-washer4X10 |
93891-040-100-8 |
from US $0.44 |
||
