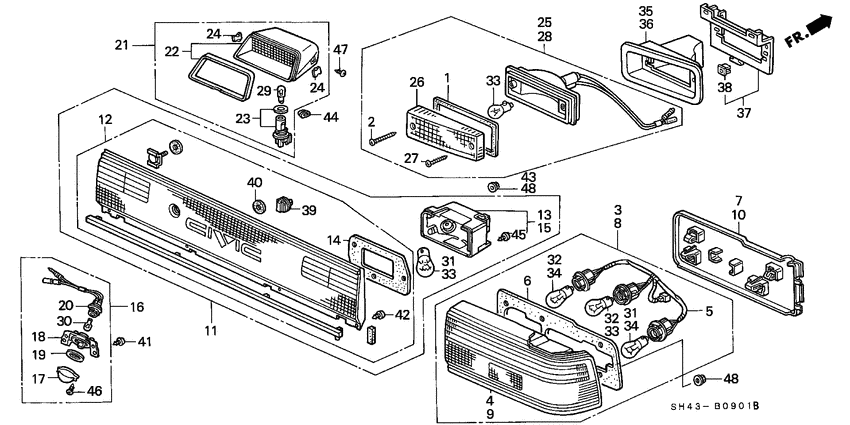

Taillight (2) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
33500-SH4-A04
Taillight assy.
|
33500-SH4-A04 |
— | ||
|
4
|
4
33501-SH4-A02
Housing
|
33501-SH4-A02 |
— | ||
|
5
|
5
33502-SH4-A02
Cord comp
|
33502-SH4-A02 |
— | ||
|
6
|
6
33503-SH4-A02
Gasket
|
33503-SH4-A02 |
— | ||
|
7
|
7
33505-SH4-010
Cover
|
33505-SH4-010 |
— | ||
|
8
|
8
33550-SH4-A04
Taillight assy.
|
33550-SH4-A04 |
— | ||
|
9
|
9
33551-SH4-A02
Housing
|
33551-SH4-A02 |
— | ||
|
10
|
10
33555-SH4-010
Cover
|
33555-SH4-010 |
— | ||
|
11
|
11
33700-SH4-A01
Garnish
|
33700-SH4-A01 |
— | ||
|
12
|
12
33701-SH4-A01 Housing |
33701-SH4-A01 |
US $354.56 |
||
|
13
|
13
33702-SH4-A01
Cover & cord comp.
|
33702-SH4-A01 |
— | ||
|
14
|
14
33703-SH4-A01
Gasket
|
33703-SH4-A01 |
— | ||
|
15
|
15
33752-SH4-A01
Cover & cord comp.
|
33752-SH4-A01 |
— | ||
|
16
|
16
34100-SH3-A01
Light assy
|
34100-SH3-A01 |
— | ||
|
17
|
17
34101-SH3-A01 Lens |
34101-SH3-A01 |
US $9.92 |
||
|
18
|
18
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
19
|
19
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
20
|
20
34104-SH3-A01
Socket & cord comp.
|
34104-SH3-A01 |
— | ||
|
21
|
21
34270-SH4-A01ZD
Light assy
|
34270-SH4-A01ZD |
— | ||
|
21
|
21
34270-SH4-A01ZE
Light assy
|
34270-SH4-A01ZE |
— | ||
|
21
|
21
34270-SH4-A01ZF
Light assy
|
34270-SH4-A01ZF |
— | ||
|
21
|
21
34270-SH4-A01ZA
Light assy
|
34270-SH4-A01ZA |
— | ||
|
21
|
21
34270-SH4-A01ZC
Light assy
|
34270-SH4-A01ZC |
— | ||
|
22
|
22
34271-SH4-A01ZE
Housing *nh167l*
|
34271-SH4-A01ZE |
— | ||
|
22
|
22
34271-SH4-A01ZF
Housing *yr129l*
|
34271-SH4-A01ZF |
— | ||
|
22
|
22
34271-SH4-A01ZA
Housing *b49l*
|
34271-SH4-A01ZA |
— | ||
|
22
|
22
34271-SH4-A01ZC
Housing *nh89l*
|
34271-SH4-A01ZC |
— | ||
|
22
|
22
34271-SH4-A01ZD
Housing *r62l*
|
34271-SH4-A01ZD |
— | ||
|
23
|
23
34274-SB3-671
Socket
|
34274-SB3-671 |
— | ||
|
24
|
24
34275-SH4-A01ZD
Cap *r62l*
|
34275-SH4-A01ZD |
— | ||
|
24
|
24
34275-SH4-A01ZE
Cap *nh167l*
|
34275-SH4-A01ZE |
— | ||
|
24
|
24
34275-SH4-A01ZF
Cap *yr129l*
|
34275-SH4-A01ZF |
— | ||
|
24
|
24
34275-SH4-A01ZA
Cap *b49l*
|
34275-SH4-A01ZA |
— | ||
|
24
|
24
34275-SH4-A01ZC
Cap *nh89l*
|
34275-SH4-A01ZC |
— | ||
|
29
|
29
34901-SB3-671 Bulb12V 18W 21CP) (STANLEY |
34901-SB3-671 |
from US $2.10 |
||
| replacement | |||||
|
29
|
29
33506-SNB-J51 Bulb12V 16W |
33506-SNB-J51 |
from US $2.80 |
||
|
30
|
30
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
31
|
31
34903-634-671 Bulb12V27W |
34903-634-671 |
US $2.17 |
||
|
32
|
32
34906-SA5-671 BulbSTOP & TAILLIGHT (12V 27/7W) |
34906-SA5-671 |
from US $3.08 |
||
|
39
|
39
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
40
|
40
75528-SD4-003 PackingSEAL (G) |
75528-SD4-003 |
US $2.44 |
||
|
41
|
41
93903-25080 ScrewTAPPING, 5X8 |
93903-25080 |
from US $0.37 |
||
|
42
|
42
90137-SD5-003
Screw
|
90137-SD5-003 |
— | ||
|
43
|
43
90301-SE0-902
Nut
|
90301-SE0-902 |
— | ||
|
44
|
44
90683-693-000 GrommetSCREW, 5MM |
90683-693-000 |
US $2.17 |
||
|
45
|
45
93901-24520 ScrewTAPPING, 4X20 |
93901-24520 |
from US $0.37 |
||
|
46
|
46
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
47
|
47
93903-45320 SCREW TAPPING |
93903-45320 |
US $0.37 |
||
|
48
|
48
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
