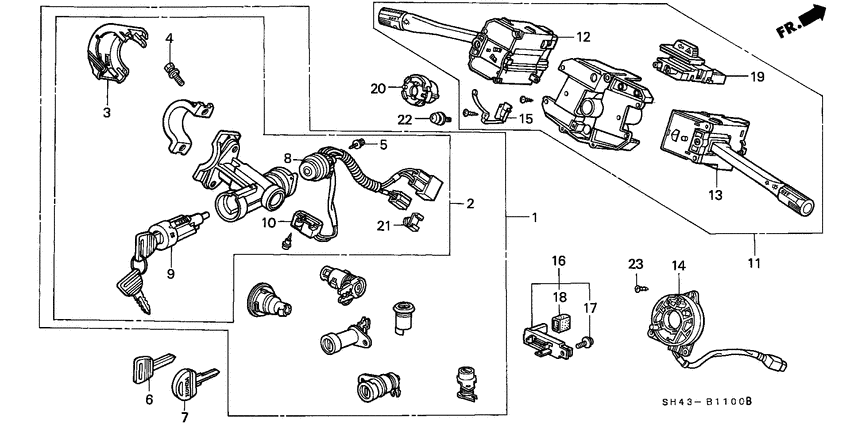

Combination switch Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KL
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-SH4-A11
Cylinder set
|
35010-SH4-A11 |
— | ||
|
2
|
2
35100-SH3-A03 Lock assySTEERING |
35100-SH3-A03 |
US $215.04 |
||
|
3
|
3
35101-SF4-003 CoverHOLDER |
35101-SF4-003 |
US $5.74 |
||
|
4
|
4
35102-SA5-003 BoltBREAK HEAD |
35102-SA5-003 |
US $2 |
||
| replacement | |||||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
6
|
6
35113-SH3-013 KeyBLANK |
35113-SH3-013 |
US $13.68 |
||
|
7
|
7
35114-SH3-A02
Key
|
35114-SH3-A02 |
— | ||
|
8
|
8
35130-SH3-A01
Switch comp
|
35130-SH3-A01 |
— | ||
|
9
|
9
35131-SH3-A01
Cylinder comp
|
35131-SH3-A01 |
— | ||
|
11
|
11
35250-SH3-A21
Switch assy
|
35250-SH3-A21 |
— | ||
|
12
|
12
35255-SH3-A02
Switch assy
|
35255-SH3-A02 |
— | ||
|
13
|
13
35256-SH3-A21
Switch assy
|
35256-SH3-A21 |
— | ||
|
15
|
15
35259-SH3-A02
Shoe
|
35259-SH3-A02 |
— | ||
|
16
|
16
35400-692-033
Switch assy
|
35400-692-033 |
— | ||
|
17
|
17
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
18
|
18
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $2.94 |
||
|
19
|
19
35510-SH3-A01
Switch assy
|
35510-SH3-A01 |
— | ||
|
20
|
20
53271-SF1-003
Cam
|
53271-SF1-003 |
— | ||
|
21
|
21
91565-SH3-003 ClipCOUPLER HOLDER (BROWN) |
91565-SH3-003 |
from US $1.54 |
||
|
22
|
22
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
