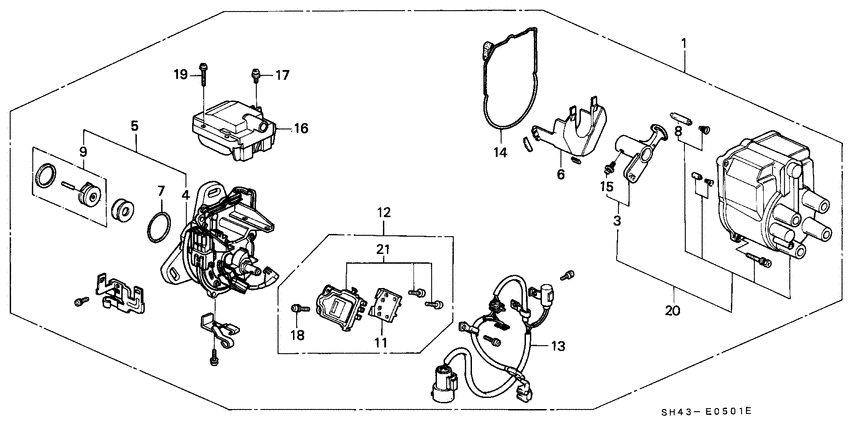

Distributor (TEC) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PM5-A02 Distributor assyTD-01U)(TEC |
30100-PM5-A02 |
US $725.76 |
||
|
3
|
3
30103-PM5-A02
Head assy
|
30103-PM5-A02 |
— | ||
|
4
|
4
30105-PM5-A02 Housing compDISTRIBUTOR |
30105-PM5-A02 |
US $391.68 |
||
|
6
|
6
30107-PM5-A02 Cover setLEAK |
30107-PM5-A02 |
US $7.70 |
||
|
7
|
7
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $2.43 |
||
|
9
|
9
30113-PD2-006
Coupling set
|
30113-PD2-006 |
— | ||
|
13
|
13
30131-PM5-A02 Harness assy |
30131-PM5-A02 |
US $31.62 |
||
|
14
|
14
30132-PM5-A02
Packing
|
30132-PM5-A02 |
— | ||
|
15
|
15
30135-PH7-006
Screw-washer
|
30135-PH7-006 |
— | ||
|
16
|
16
30500-PM5-A02 Coil assyIGNITION |
30500-PM5-A02 |
US $106.88 |
||
|
17
|
17
93892-040-061-8
Screw-washer
|
93892-040-061-8 |
— | ||
| replacement | |||||
|
17
|
17
93892-040-060-8 Screw-washer4X6 |
93892-040-060-8 |
from US $0.44 |
||
|
18
|
18
93892-040-101-8 Screw-washer4X10 |
93892-040-101-8 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
19
|
19
93892-040-201-8
Screw-washer
|
93892-040-201-8 |
— | ||
| replacement | |||||
|
19
|
19
93892-040-200-8 Screw-washer4X20 |
93892-040-200-8 |
US $0.44 |
||
|
20
|
20
30102-PM5-305
Cap assy.
|
30102-PM5-305 |
— | ||
| replacement | |||||
|
20
|
20
30102-PM5-306 Cap assy. |
30102-PM5-306 |
from US $24.98 |
||
|
21
|
21
06302-PT2-A00
Igniter unit kit
|
06302-PT2-A00 |
— | ||
|
21
|
21
06302-PT2-000 Igniter unit kitNEC/ELESYS |
06302-PT2-000 |
US $86.02 |
||
