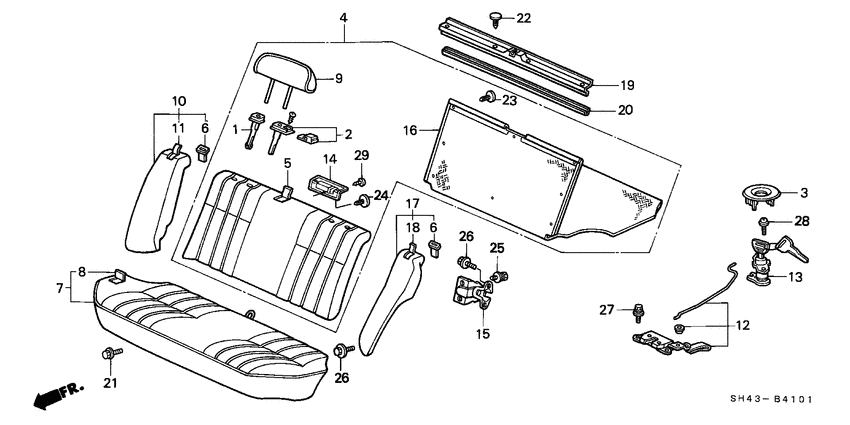

Rear seat (2) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77583-SB3-003ZN
Guide
|
77583-SB3-003ZN |
— | ||
|
1
|
1
77583-SB3-003ZP GuideHEADREST FREE *YR89L* |
77583-SB3-003ZP |
US $7.70 |
||
|
1
|
1
77583-SB3-003ZQ
Guide
|
77583-SB3-003ZQ |
— | ||
|
1
|
1
77583-SB3-003ZM
Guide
|
77583-SB3-003ZM |
— | ||
|
2
|
2
77584-SB3-003ZN
Guide comp
|
77584-SB3-003ZN |
— | ||
|
2
|
2
77584-SB3-003ZQ
Guide comp
|
77584-SB3-003ZQ |
— | ||
|
2
|
2
77584-SB3-003ZR Guide compHEADREST LOCK *R62L* |
77584-SB3-003ZR |
US $10.78 |
||
|
2
|
2
77584-SB3-003ZM
Guide comp
|
77584-SB3-003ZM |
— | ||
|
3
|
3
78165-SB0-670ZA GarnishRR. SEAT LOCK *B49L* |
78165-SB0-670ZA |
US $3.78 |
||
|
3
|
3
78165-SB0-670ZB GarnishRR. SEAT LOCK *YR89L* |
78165-SB0-670ZB |
US $3.78 |
||
|
3
|
3
78165-SB0-670ZD
Garnish
|
78165-SB0-670ZD |
— | ||
|
3
|
3
78165-SB0-670ZE GarnishRR. SEAT LOCK *R62L* |
78165-SB0-670ZE |
US $3.78 |
||
|
4
|
4
82120-SH4-A11ZC Seatback assy.RR. *NH154L* |
82120-SH4-A11ZC |
US $1,480.96 |
||
|
4
|
4
82120-SH4-A11ZB Seatback assy.RR. *YR118L* |
82120-SH4-A11ZB |
US $1,480.96 |
||
|
4
|
4
82120-SH4-A11ZD Seatback assy.RR. *R62L* |
82120-SH4-A11ZD |
US $1,480.96 |
||
|
4
|
4
82120-SH4-A11ZA Seatback assy.RR. *B68L* |
82120-SH4-A11ZA |
US $1,480.96 |
||
|
5
|
5
82121-SH4-A11ZB
Cover
|
82121-SH4-A11ZB |
— | ||
|
5
|
5
82121-SH4-A11ZD
Cover
|
82121-SH4-A11ZD |
— | ||
|
5
|
5
82121-SH4-A11ZA CoverRR. SEATBACK TRIM *B68L* |
82121-SH4-A11ZA |
US $608 |
||
|
5
|
5
82121-SH4-A11ZC CoverRR. SEATBACK TRIM *NH154L* |
82121-SH4-A11ZC |
US $608 |
||
|
6
|
6
82127-SH4-003 CollarRR. SEATBACK SETTING |
82127-SH4-003 |
US $3.71 |
||
|
7
|
7
82130-SH4-A11ZA Cushion assyRR. SEAT *B68L* |
82130-SH4-A11ZA |
US $1,118.72 |
||
|
7
|
7
82130-SH4-A11ZB Cushion assyRR. SEAT *YR118L* |
82130-SH4-A11ZB |
US $1,118.72 |
||
|
7
|
7
82130-SH4-A11ZC Cushion assyRR. SEAT *NH154L* |
82130-SH4-A11ZC |
US $1,118.72 |
||
|
7
|
7
82130-SH4-A11ZD
Cushion assy
|
82130-SH4-A11ZD |
— | ||
|
8
|
8
82131-SH4-A11ZD
Cover
|
82131-SH4-A11ZD |
— | ||
|
8
|
8
82131-SH4-A11ZA CoverRR. SEAT CUSHION TRIM *B68L* |
82131-SH4-A11ZA |
US $759.04 |
||
|
8
|
8
82131-SH4-A11ZC CoverRR. SEAT CUSHION TRIM *NH154L* |
82131-SH4-A11ZC |
US $759.04 |
||
|
8
|
8
82131-SH4-A11ZB CoverRR. SEAT CUSHION TRIM *YR118L* |
82131-SH4-A11ZB |
US $759.04 |
||
|
9
|
9
82140-SH4-A11ZA
Headrest assy
|
82140-SH4-A11ZA |
— | ||
|
9
|
9
82140-SH4-A11ZC
Headrest assy
|
82140-SH4-A11ZC |
— | ||
|
9
|
9
82140-SH4-A11ZB
Headrest assy
|
82140-SH4-A11ZB |
— | ||
|
9
|
9
82140-SH4-A11ZD
Headrest assy
|
82140-SH4-A11ZD |
— | ||
|
10
|
10
82150-SH4-A11ZA Seatback assy.R. RR. SIDE *B68L* |
82150-SH4-A11ZA |
US $227.84 |
||
|
10
|
10
82150-SH4-A11ZB Seatback assy.R. RR. SIDE *YR118L* |
82150-SH4-A11ZB |
US $227.84 |
||
|
10
|
10
82150-SH4-A11ZC Seatback assy.R. RR. SIDE *NH154L* |
82150-SH4-A11ZC |
US $227.84 |
||
|
10
|
10
82150-SH4-A11ZD Seatback assy.R. RR. SIDE *R62L* |
82150-SH4-A11ZD |
US $227.84 |
||
|
11
|
11
82151-SH4-A11ZA
Cover
|
82151-SH4-A11ZA |
— | ||
|
11
|
11
82151-SH4-A11ZC
Cover
|
82151-SH4-A11ZC |
— | ||
|
11
|
11
82151-SH4-A11ZB
Cover
|
82151-SH4-A11ZB |
— | ||
|
11
|
11
82151-SH4-A11ZD
Cover
|
82151-SH4-A11ZD |
— | ||
|
12
|
12
82220-SH4-J31
Lock assy
|
82220-SH4-J31 |
— | ||
|
13
|
13
82226-SH4-A01
Cylinder
JS021311 - |
82226-SH4-A01 |
— | ||
|
13
|
13
82226-SH4-A00
Cylinder
00000000 - JS021310 |
82226-SH4-A00 |
— | ||
|
14
|
14
82228-SH4-003ZE
Garnish
|
82228-SH4-003ZE |
— | ||
|
15
|
15
82290-SH4-013
Bracket comp.
|
82290-SH4-013 |
— | ||
|
16
|
16
82320-SH4-A10ZE
Mat
|
82320-SH4-A10ZE |
— | ||
|
17
|
17
82550-SH4-A11ZA Seatback assy.L. RR. SIDE *B68L* |
82550-SH4-A11ZA |
US $227.84 |
||
|
17
|
17
82550-SH4-A11ZB Seatback assy.L. RR. SIDE *YR118L* |
82550-SH4-A11ZB |
US $227.84 |
||
|
17
|
17
82550-SH4-A11ZC Seatback assy.L. RR. SIDE *NH154L* |
82550-SH4-A11ZC |
US $227.84 |
||
|
17
|
17
82550-SH4-A11ZD Seatback assy.L. RR. SIDE *R62L* |
82550-SH4-A11ZD |
US $227.84 |
||
|
18
|
18
82551-SH4-A11ZB
Cover
|
82551-SH4-A11ZB |
— | ||
|
18
|
18
82551-SH4-A11ZD
Cover
|
82551-SH4-A11ZD |
— | ||
|
18
|
18
82551-SH4-A11ZA
Cover
|
82551-SH4-A11ZA |
— | ||
|
18
|
18
82551-SH4-A11ZC
Cover
|
82551-SH4-A11ZC |
— | ||
|
19
|
19
84512-SH4-000ZD
Cover
|
84512-SH4-000ZD |
— | ||
|
19
|
19
84512-SH4-000ZA
Cover
|
84512-SH4-000ZA |
— | ||
|
19
|
19
84512-SH4-000ZB
Cover
|
84512-SH4-000ZB |
— | ||
|
19
|
19
84512-SH4-000ZC
Cover
|
84512-SH4-000ZC |
— | ||
|
20
|
20
84513-SH4-000ZD
Trim
|
84513-SH4-000ZD |
— | ||
|
20
|
20
84513-SH4-000ZA
Trim
|
84513-SH4-000ZA |
— | ||
|
20
|
20
84513-SH4-000ZC
Trim
|
84513-SH4-000ZC |
— | ||
|
20
|
20
84513-SH4-000ZB
Trim
|
84513-SH4-000ZB |
— | ||
|
21
|
21
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
22
|
22
90666-SA7-003ZS
Clip
|
90666-SA7-003ZS |
— | ||
|
22
|
22
90666-SA7-003ZM ClipTRIM, 5MM *NH89L* |
90666-SA7-003ZM |
US $1.75 |
||
|
22
|
22
90666-SA7-003ZN ClipTRIM, 5MM *B49L* |
90666-SA7-003ZN |
US $1.75 |
||
|
22
|
22
90666-SA7-003ZQ
Clip
|
90666-SA7-003ZQ |
— | ||
|
23
|
23
90667-SA7-003YF
Clip
|
90667-SA7-003YF |
— | ||
|
24
|
24
90668-SH4-003ZA
Clip
|
90668-SH4-003ZA |
— | ||
|
25
|
25
93403-060-160-7 Bolt-washer6X16 |
93403-060-160-7 |
from US $0.59 |
||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
27
|
27
93413-060-160-8 Bolt-washer6X16 |
93413-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
28
|
28
93891-040-120-8 Screw-washer4X12 |
93891-040-120-8 |
from US $0.44 |
||
|
29
|
29
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
