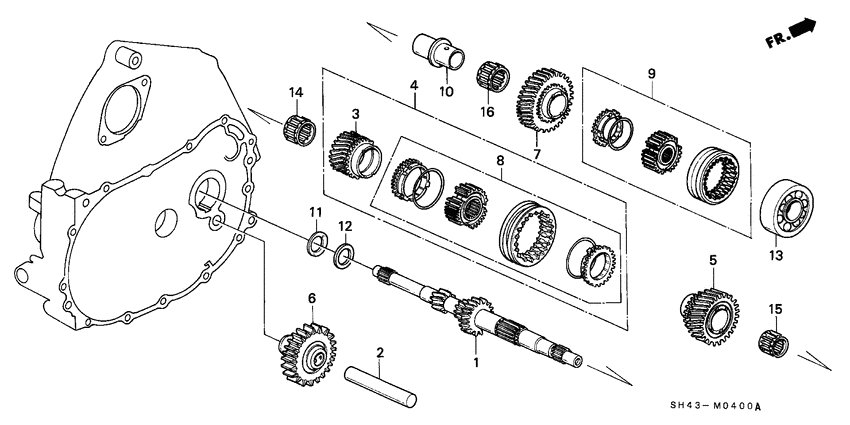

Mainshaft Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- area code
- KL
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-PL3-902
Mainshaft
|
23211-PL3-902 |
— | ||
|
2
|
2
23261-PL3-000
Shaft
|
23261-PL3-000 |
— | ||
|
4
|
4
23442-PL3-901
Gear set
|
23442-PL3-901 |
— | ||
|
5
|
5
23451-PL3-901
Gear
|
23451-PL3-901 |
— | ||
|
6
|
6
23540-PL3-000 Gear compREVERSE IDLE |
23540-PL3-000 |
US $60.80 |
||
|
7
|
7
23581-PL3-901
Gear
1171545 - |
23581-PL3-901 |
— | ||
|
7
|
7
23581-PL3-900
Gear
00000000 - 1171544 |
23581-PL3-900 |
— | ||
|
9
|
9
23626-PL3-305
Sleeve set
00000000 - 1266278 |
23626-PL3-305 |
— | ||
|
9
|
9
23626-PL3-315
Sleeve set
1266279 - |
23626-PL3-315 |
— | ||
|
10
|
10
23915-PL3-010
Collar
|
23915-PL3-010 |
— | ||
|
11
|
11
23927-PL3-000
Washer
|
23927-PL3-000 |
— | ||
|
13
|
13
91004-PL3-A03 BearingRADIAL BALL, 22X65X17/18 (NTN) |
91004-PL3-A03 |
from US $12.46 |
||
|
14
|
14
91106-PL3-008 BearingNEEDLE, 34X39X23 |
91106-PL3-008 |
US $6.51 |
||
|
15
|
15
91107-PL3-018 BearingNEEDLE, 34X39X27.5 |
91107-PL3-018 |
US $6.51 |
||
|
16
|
16
91108-PL3-008 BearingNEEDLE, 32X37X23.5 (NTN) |
91108-PL3-008 |
US $6.51 |
