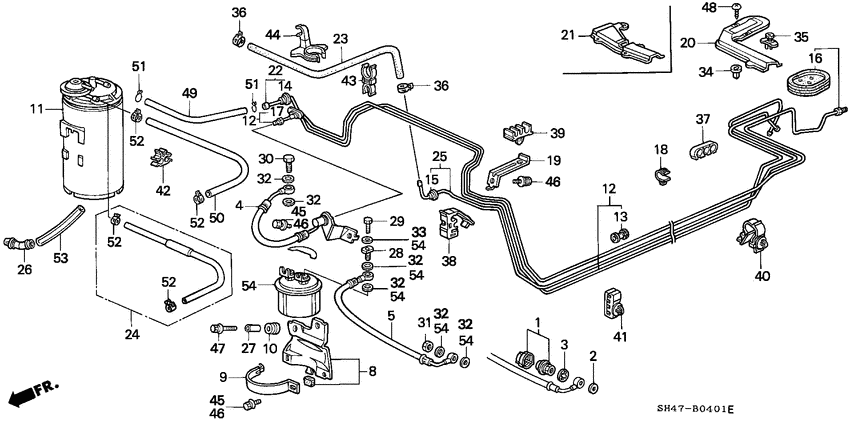

Fuel pipe (PGM-FI) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- GL 1500
- area code
- KW
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
16721-SH3-931
Hose
|
16721-SH3-931 |
— | ||
|
5
|
5
16722-PM5-A01
Hose comp.
|
16722-PM5-A01 |
— | ||
|
8
|
8
16918-SH3-930
Stay
|
16918-SH3-930 |
— | ||
|
9
|
9
16919-SH3-931
Band
|
16919-SH3-931 |
— | ||
|
10
|
10
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
11
|
11
17300-SH3-A32
Canister assy
|
17300-SH3-A32 |
— | ||
|
12
|
12
17700-SH3-933
Pipe comp
|
17700-SH3-933 |
— | ||
|
14
|
14
17710-SA0-000
Grommet
|
17710-SA0-000 |
— | ||
|
15
|
15
17710-SH3-980
Grommet
|
17710-SH3-980 |
— | ||
|
16
|
16
17710-SH3-931
Grommet
|
17710-SH3-931 |
— | ||
|
17
|
17
17711-SH3-000
Grommet
|
17711-SH3-000 |
— | ||
|
19
|
19
17714-SH3-A00
Bracket
|
17714-SH3-A00 |
— | ||
|
20
|
20
17715-SH3-010 ProtectorPIPE |
17715-SH3-010 |
US $11.76 |
||
|
22
|
22
17720-SH3-020
Pipe comp
|
17720-SH3-020 |
— | ||
|
23
|
23
17723-SH3-A31
Hose
|
17723-SH3-A31 |
— | ||
|
25
|
25
17740-SH3-933
Pipe comp
|
17740-SH3-933 |
— | ||
|
26
|
26
17742-SB2-671
Joint
|
17742-SB2-671 |
— | ||
|
27
|
27
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
28
|
28
90008-PD6-000
Bolt
|
90008-PD6-000 |
— | ||
|
29
|
29
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
29
|
29
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
30
|
30
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
31
|
31
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
||
|
32
|
32
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
33
|
33
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
34
|
34
90664-SB3-003 GrommetSCREW, 5MM |
90664-SB3-003 |
US $1.61 |
||
|
35
|
35
90675-SA7-003 ClipFR. COWL |
90675-SA7-003 |
US $2.87 |
||
|
36
|
36
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
36
|
36
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
37
|
37
91590-SH3-931
Clip
|
91590-SH3-931 |
— | ||
|
38
|
38
91591-SH3-931
Clip
|
91591-SH3-931 |
— | ||
|
39
|
39
91594-SH3-A01
Clamp
|
91594-SH3-A01 |
— | ||
|
40
|
40
91594-SH3-931
Clamp
|
91594-SH3-931 |
— | ||
|
42
|
42
91597-SH3-Y01 ClampVENT TUBE (BLACK) |
91597-SH3-Y01 |
US $2.87 |
||
|
43
|
43
91599-SH3-A31 ClampPURGE HOSE 0S000261 - |
91599-SH3-A31 |
US $3.01 |
||
|
43
|
43
91598-SH3-A31 ClampRETURN HOSE 00000000 - 0S000260 |
91598-SH3-A31 |
US $2.87 |
||
|
44
|
44
91599-SH3-932
Clamp
0S007485 - |
91599-SH3-932 |
— | ||
|
44
|
44
91599-SH3-931
Clamp
0S000261 - 0S007484 |
91599-SH3-931 |
— | ||
|
45
|
45
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
46
|
46
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
47
|
47
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
48
|
48
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
49
|
49
95001-552-403-0
Tube
|
95001-552-403-0 |
— | ||
|
51
|
51
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
52
|
52
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
53
|
53
95003-400-166-0 TubeVINYL, 12X16X160 (95003-40001-60M) |
95003-400-166-0 |
US $1.85 |
||
|
54
|
54
16010-SH3-A30
Strainer set
|
16010-SH3-A30 |
— | ||
