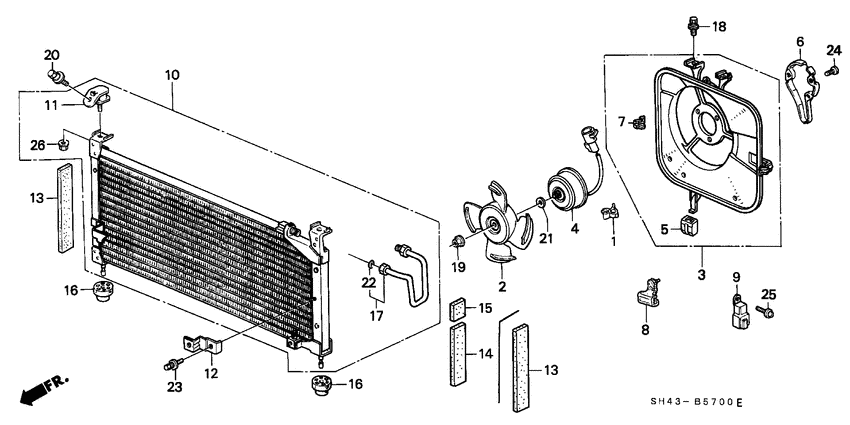

Condenser Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90659-PG6-000 ClipWIRE HARNESS |
90659-PG6-000 |
from US $2.28 |
||
|
2
|
2
38611-PM3-004
Fan comp
|
38611-PM3-004 |
— | ||
|
3
|
3
38615-PM3-901
Shroud comp.
00000000 - KS003023 |
38615-PM3-901 |
— | ||
|
3
|
3
38615-PM3-902
Shroud comp.
KS003024 - |
38615-PM3-902 |
— | ||
|
4
|
4
38616-PM5-A03 MotorCOOLING FAN |
38616-PM5-A03 |
US $235.52 |
||
|
5
|
5
38618-PM3-000
Mount
|
38618-PM3-000 |
— | ||
|
6
|
6
38619-PM3-900
Protector
00000000 - KS003023 |
38619-PM3-900 |
— | ||
|
6
|
6
38619-PM3-901
Protector
KS003024 - |
38619-PM3-901 |
— | ||
|
7
|
7
38626-PM5-A00 Rubber b |
38626-PM5-A00 |
US $2.29 |
||
|
9
|
9
39139-SB3-003
Suppressor
|
39139-SB3-003 |
— | ||
|
10
|
10
80100-SH3-013
Condenser assy
|
80100-SH3-013 |
— | ||
|
11
|
11
80107-SH3-000
Mount
|
80107-SH3-000 |
— | ||
|
12
|
12
80108-SH3-A00
Stay
|
80108-SH3-A00 |
— | ||
|
13
|
13
80109-SH3-010
Seal
|
80109-SH3-010 |
— | ||
|
16
|
16
80175-SE0-000 MountCONDENSER |
80175-SE0-000 |
from US $3.03 |
||
|
17
|
17
80316-SH3-003
Pipe
|
80316-SH3-003 |
— | ||
|
18
|
18
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
18
|
18
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
19
|
19
90041-PD2-004
Nut
|
90041-PD2-004 |
— | ||
| replacement | |||||
|
19
|
19
90311-MB6-003 Nut toothed 5mm |
90311-MB6-003 |
from US $3.09 |
||
|
20
|
20
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
20
|
20
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
21
|
21
90403-PM3-004
Washer
|
90403-PM3-004 |
— | ||
|
22
|
22
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
23
|
23
93405-060-120-7 Bolt-washer6X12 |
93405-060-120-7 |
US $0.59 |
||
|
24
|
24
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
25
|
25
93892-060-100-8 Screw-washer6X10 |
93892-060-100-8 |
US $0.56 |
||
|
26
|
26
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
