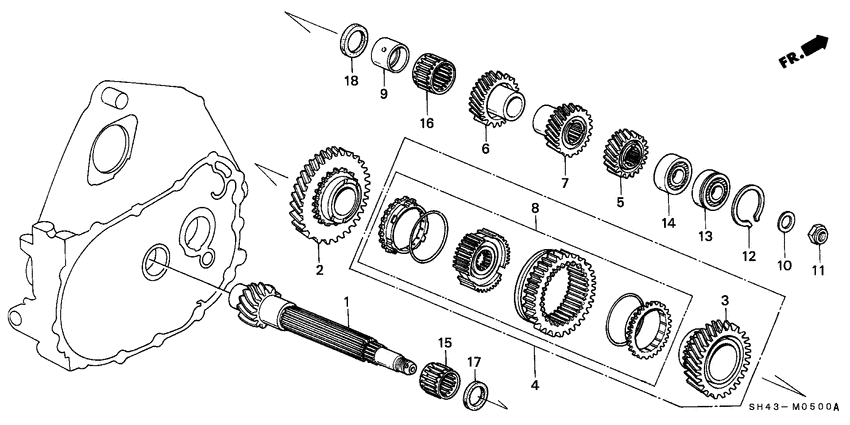

Countershaft Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23221-PL3-J00 Countershaft |
23221-PL3-J00 |
US $285.44 |
||
|
2
|
2
23421-PL3-010
Gear
|
23421-PL3-010 |
— | ||
|
4
|
4
23432-PL3-901
Gear set
|
23432-PL3-901 |
— | ||
|
5
|
5
23461-PL3-901
Gear
|
23461-PL3-901 |
— | ||
|
6
|
6
23471-PL3-900
Gear
|
23471-PL3-900 |
— | ||
|
7
|
7
23481-PL3-900
Gear
|
23481-PL3-900 |
— | ||
|
9
|
9
23912-PL3-000 CollarDISTANCE, 33X39X30 |
23912-PL3-000 |
US $12.18 |
||
|
10
|
10
23926-PB6-010 WasherSPRING, 22MM |
23926-PB6-010 |
from US $5.62 |
||
|
11
|
11
90202-PB6-010 NutFLANGE, 22MM |
90202-PB6-010 |
from US $6.81 |
||
|
12
|
12
90603-PL3-000 RingSNAP, 52MM |
90603-PL3-000 |
US $2.41 |
||
|
13
|
13
91003-PL3-B04 BearingBALL, 25X52X14/15 (TOYO) |
91003-PL3-B04 |
US $10.92 |
||
|
14
|
14
91006-PL3-A03 BearingBALL, 25X52X15 (6205UC/25) (NTN) |
91006-PL3-A03 |
US $10.92 |
||
|
15
|
15
91104-PL3-018 BearingNEEDLE, 36X41X24 |
91104-PL3-018 |
US $6.16 |
||
|
16
|
16
91105-PL3-018 BearingNEEDLE, 39X44X25 |
91105-PL3-018 |
US $7.98 |
||
|
17
|
17
91211-PL3-008 DamperFRICTION (LOW) |
91211-PL3-008 |
US $8.82 |
||
|
18
|
18
91212-PL3-008 DamperFRICTION (SECOND) |
91212-PL3-008 |
US $8.82 |
