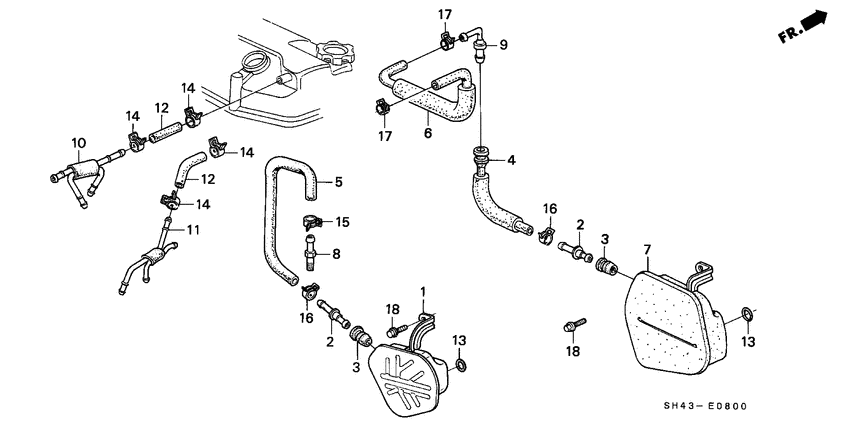

Breather chamber Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- area code
- KL
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11850-PM3-000
Chamber comp
|
11850-PM3-000 |
— | ||
| replacement | |||||
|
1
|
1
11851-P01-000
Chamber set
|
11851-P01-000 |
— | ||
|
2
|
2
11854-PM3-000 JointBREATHER CHAMBER |
11854-PM3-000 |
US $3.67 |
||
|
3
|
3
11855-PC6-000
Grommet
|
11855-PC6-000 |
— | ||
|
5
|
5
11856-PM5-000
Tube
|
11856-PM5-000 |
— | ||
|
8
|
8
17130-PM3-003
Valve assy.
|
17130-PM3-003 |
— | ||
|
10
|
10
17135-PM5-A00
Pipe assy.
|
17135-PM5-A00 |
— | ||
|
12
|
12
17153-PM5-A00
Tube
|
17153-PM5-A00 |
— | ||
|
13
|
13
91324-PC6-000 O-ring20.6X2.6 |
91324-PC6-000 |
from US $1.78 |
||
|
14
|
14
91405-PH7-003
Clamp
|
91405-PH7-003 |
— | ||
|
15
|
15
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
16
|
16
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
16
|
16
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
18
|
18
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
