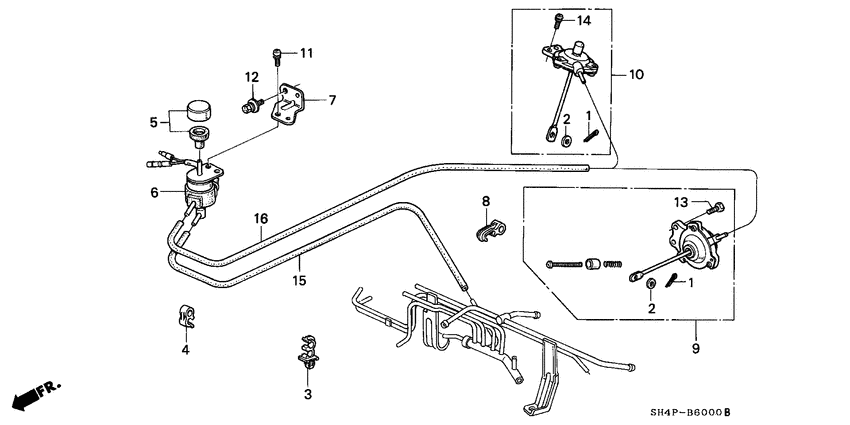

Air conditioner (CARBURETOR COMPONENTS) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16181-PC3-781
Pin
|
16181-PC3-781 |
— | ||
|
2
|
2
16203-657-300
Washer
|
16203-657-300 |
— | ||
|
5
|
5
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
6
|
6
38771-PM3-004
Valve assy.
|
38771-PM3-004 |
— | ||
|
7
|
7
38775-PM3-000
Stay
|
38775-PM3-000 |
— | ||
|
8
|
8
38778-PM4-000
Clamp b
|
38778-PM4-000 |
— | ||
|
10
|
10
38780-PM4-003
Control set
|
38780-PM4-003 |
— | ||
|
11
|
11
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
12
|
12
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
12
|
12
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
14
|
14
93500-050-140-H ScrewPAN, 5X14 |
93500-050-140-H |
from US $0.37 |
||
|
15
|
15
95005-354-101-0 Tube3.5X410 (95005-35001-10M) |
95005-354-101-0 |
US $4.74 |
||
|
16
|
16
95005-352-801-0 Tube3.5X280(95005-35001-10M) |
95005-352-801-0 |
US $3.26 |
||
