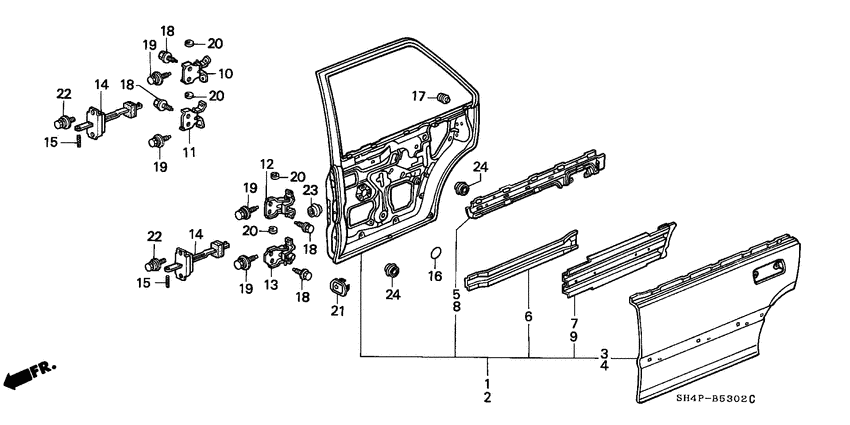

Rear door panels Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67510-SH4-G00ZZ
Panel comp
|
67510-SH4-G00ZZ |
— | ||
|
2
|
2
67550-SH4-G00ZZ
Panel comp
|
67550-SH4-G00ZZ |
— | ||
|
3
|
3
67611-SH4-A00ZZ
Skin
|
67611-SH4-A00ZZ |
— | ||
|
4
|
4
67651-SH4-A00ZZ
Skin
|
67651-SH4-A00ZZ |
— | ||
|
5
|
5
67721-SH4-300ZZ
Stiffener
|
67721-SH4-300ZZ |
— | ||
|
6
|
6
67722-SH4-320ZZ
Stiffener
|
67722-SH4-320ZZ |
— | ||
|
8
|
8
67761-SH4-300ZZ
Stiffener
|
67761-SH4-300ZZ |
— | ||
|
10
|
10
67910-SH4-003ZZ HingeR. RR. DOOR UPPER |
67910-SH4-003ZZ |
US $34.18 |
||
|
11
|
11
67920-SH4-003ZZ HingeR. RR. DOOR LOWER |
67920-SH4-003ZZ |
US $34.18 |
||
|
12
|
12
67950-SH4-003ZZ HingeL. RR. DOOR UPPER |
67950-SH4-003ZZ |
US $34.18 |
||
|
13
|
13
67970-SH4-003ZZ HingeL. RR. DOOR LOWER |
67970-SH4-003ZZ |
US $34.18 |
||
|
14
|
14
72840-SH4-003 Checker comp.RR. DOOR |
72840-SH4-003 |
US $44.16 |
||
|
15
|
15
75760-SB2-003 PinDOOR CHECKER |
75760-SB2-003 |
US $6.07 |
||
|
16
|
16
75826-605-300 SealDOOR HOLE, 30MM (CIRCLE) (BLACK) |
75826-605-300 |
from US $2.10 |
||
|
17
|
17
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
US $1.70 |
||
|
18
|
18
90001-SD2-000 BoltFLANGE, 8X22 |
90001-SD2-000 |
US $2.15 |
||
|
19
|
19
90110-SB6-000
Bolt-washer
|
90110-SB6-000 |
— | ||
|
20
|
20
90755-SB2-000 E-ring6MM |
90755-SB2-000 |
from US $3.11 |
||
|
21
|
21
91614-SE7-000
Grommet
|
91614-SE7-000 |
— | ||
|
22
|
22
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
22
|
22
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
23
|
23
95550-07000 PlugBLIND, 7MM |
95550-07000 |
from US $1.04 |
||
|
24
|
24
95550-10000 PlugBLIND, 10MM |
95550-10000 |
US $1.04 |
||
