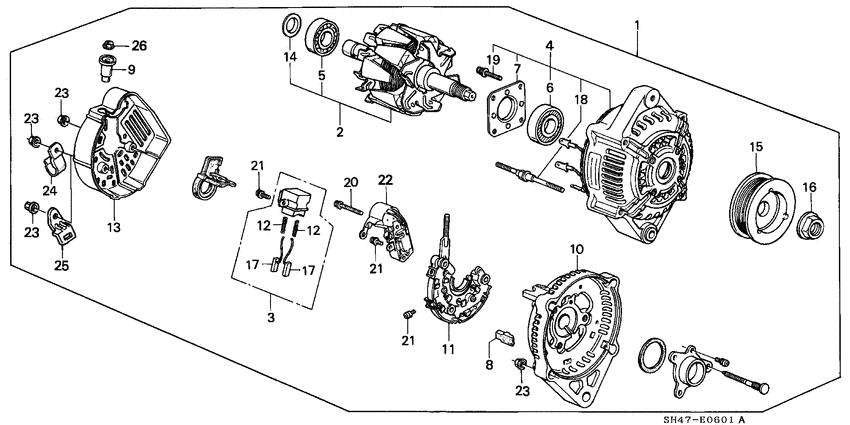

Alternator (DENSO) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL 1500
- area code
- KW
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-PM5-X03
Alternator assy
|
31100-PM5-X03 |
— | ||
|
2
|
2
31101-PM4-013 Rotor assy. |
31101-PM4-013 |
US $273.92 |
||
|
3
|
3
31105-PD1-034
Holder assy.
|
31105-PD1-034 |
— | ||
| replacement | |||||
|
3
|
3
31105-PZ1-003 Holder assy.BRUSH |
31105-PZ1-003 |
from US $17.14 |
||
|
4
|
4
31109-PM4-003
Frame assy
|
31109-PM4-003 |
— | ||
|
5
|
5
31111-PD1-014 BearingRR. GENERATOR |
31111-PD1-014 |
US $16.26 |
||
|
6
|
6
31114-PD1-034 BearingFR. GENERATOR |
31114-PD1-034 |
US $16.77 |
||
|
7
|
7
31116-PE0-023
Plate
|
31116-PE0-023 |
— | ||
|
8
|
8
31118-PD1-004
Bush
|
31118-PD1-004 |
— | ||
|
9
|
9
31119-PH1-004
Bush
|
31119-PH1-004 |
— | ||
|
10
|
10
31121-PM4-013
Frame
|
31121-PM4-013 |
— | ||
|
11
|
11
31127-PD1-014
Rectifier Assy
2806487 - |
31127-PD1-014 |
— | ||
|
11
|
11
31127-PD1-004 Rectifier assy.00000000 - 2806486 |
31127-PD1-004 |
US $229.12 |
||
|
12
|
12
31129-PD1-014
Spring
|
31129-PD1-014 |
— | ||
|
13
|
13
31135-PM4-003
Cover
|
31135-PM4-003 |
— | ||
|
14
|
14
31138-PD1-004 CoverBEARING |
31138-PD1-004 |
from US $3.18 |
||
|
15
|
15
31141-PE0-013
Pulley
|
31141-PE0-013 |
— | ||
|
16
|
16
31142-PD1-004 NutPULLEY LOCK |
31142-PD1-004 |
from US $3.03 |
||
|
17
|
17
31144-PD1-004 Brush |
31144-PD1-004 |
US $11.55 |
||
| replacement | |||||
|
17
|
17
31144-P01-003 Brush |
31144-P01-003 |
US $12.40 |
||
|
18
|
18
31145-PD1-004 BoltSTUD, 6X68 |
31145-PD1-004 |
from US $3.18 |
||
|
19
|
19
31146-PD1-004 Screw-washer4X19 |
31146-PD1-004 |
US $2.24 |
||
|
20
|
20
31148-PD1-004 Screw-washer4X25 |
31148-PD1-004 |
from US $1.48 |
||
|
21
|
21
31149-PD1-004
Screw-washer
|
31149-PD1-004 |
— | ||
|
22
|
22
31150-PE7-662 Regulator assy |
31150-PE7-662 |
US $218.88 |
||
|
23
|
23
90231-PD1-014 Nut-washer5MM |
90231-PD1-014 |
from US $1.85 |
||
|
24
|
24
91415-PM4-003
Clip
|
91415-PM4-003 |
— | ||
|
26
|
26
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
