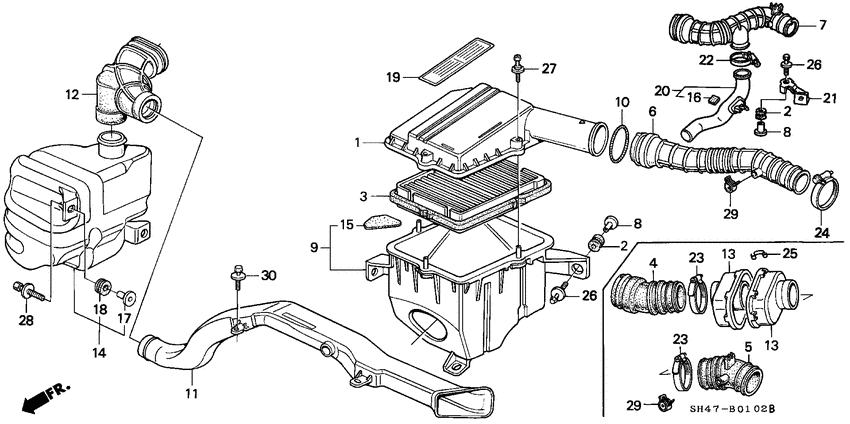

Air cleaner (3) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL
- area code
- KX
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-PM7-000
Cover comp.
|
17210-PM7-000 |
— | ||
|
2
|
2
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
3
|
3
17220-PM7-000
Element
|
17220-PM7-000 |
— | ||
|
6
|
6
17228-PM5-A00
Tube
|
17228-PM5-A00 |
— | ||
|
8
|
8
17233-PH3-000
Collar
|
17233-PH3-000 |
— | ||
|
9
|
9
17241-PM5-A02
Case comp.
|
17241-PM5-A02 |
— | ||
|
10
|
10
17243-PD1-000
Spring
|
17243-PD1-000 |
— | ||
|
11
|
11
17243-PM5-A00
Pipe
|
17243-PM5-A00 |
— | ||
|
12
|
12
17244-PM7-000
Joint
|
17244-PM7-000 |
— | ||
|
14
|
14
17246-PM7-000
Chamber
|
17246-PM7-000 |
— | ||
|
15
|
15
17247-PM5-000
Protector
|
17247-PM5-000 |
— | ||
|
17
|
17
17255-PD6-000 CollarRESONATOR |
17255-PD6-000 |
US $2.10 |
||
|
18
|
18
17256-PD6-000 RubberRESONATOR MOUNTING |
17256-PD6-000 |
US $2.59 |
||
|
19
|
19
17273-PC7-640
Plate
|
17273-PC7-640 |
— | ||
|
24
|
24
17316-PM5-A01
Clamp
|
17316-PM5-A01 |
— | ||
|
26
|
26
90006-PN3-000
Bolt-washer
|
90006-PN3-000 |
— | ||
|
27
|
27
90091-PE2-000 Bolt-washer5X25 |
90091-PE2-000 |
from US $4 |
||
|
28
|
28
90775-PG7-000 Bolt-washer6X20 |
90775-PG7-000 |
US $1.82 |
||
|
29
|
29
91407-SA7-003 ClampFUEL HOSE, 17MM |
91407-SA7-003 |
US $3.50 |
||
|
30
|
30
93404-060-200-7 Bolt-washer6X20 |
93404-060-200-7 |
from US $0.52 |
||
