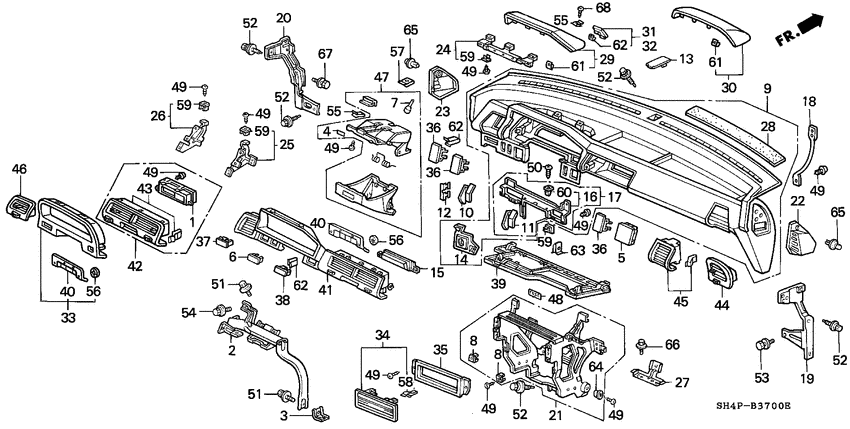

Instrument panel (1) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
61170-SH3-G00ZZ
Beam comp
|
61170-SH3-G00ZZ |
— | ||
|
3
|
3
61174-SH4-A00ZZ
Bracket
|
61174-SH4-A00ZZ |
— | ||
|
4
|
4
66161-SB2-000
Label
|
66161-SB2-000 |
— | ||
|
7
|
7
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
8
|
8
75522-611-000 GrommetSCREW, 4MM |
75522-611-000 |
US $4 |
||
|
9
|
9
77100-SH4-G72ZB Panel assy.INSTRUMENT *YR89L* 00000000 - 0S109691 |
77100-SH4-G72ZB |
US $623.36 |
||
|
9
|
9
77100-SH4-G90ZB
Panel assy.
0S109692 - |
77100-SH4-G90ZB |
— | ||
|
9
|
9
77100-SH4-G72ZA Panel assy.INSTRUMENT *B49L* 00000000 - 0S109691 |
77100-SH4-G72ZA |
US $623.36 |
||
|
9
|
9
77100-SH4-G90ZA
Panel assy.
0S109692 - |
77100-SH4-G90ZA |
— | ||
|
9
|
9
77100-SH4-G72ZC Panel assy.INSTRUMENT *NH89L* 00000000 - 0S109691 |
77100-SH4-G72ZC |
US $623.36 |
||
|
9
|
9
77100-SH4-G90ZC
Panel assy.
0S109692 - |
77100-SH4-G90ZC |
— | ||
|
11
|
11
77105-SH3-010
Blind
|
77105-SH3-010 |
— | ||
|
13
|
13
77117-SH4-000ZA
Lid
|
77117-SH4-000ZA |
— | ||
|
13
|
13
77117-SH4-000ZD
Lid
|
77117-SH4-000ZD |
— | ||
|
13
|
13
77117-SH4-000ZB
Lid
|
77117-SH4-000ZB |
— | ||
|
14
|
14
77118-SH3-G02ZB
Panel
|
77118-SH3-G02ZB |
— | ||
|
14
|
14
77118-SH3-G02ZC
Panel
|
77118-SH3-G02ZC |
— | ||
|
14
|
14
77118-SH3-G02ZA
Panel
|
77118-SH3-G02ZA |
— | ||
|
17
|
17
77140-SH3-A02
Frame assy
|
77140-SH3-A02 |
— | ||
|
18
|
18
77142-SH3-000
Pipe
|
77142-SH3-000 |
— | ||
|
19
|
19
77143-SH3-A01
Bracket
|
77143-SH3-A01 |
— | ||
|
20
|
20
77145-SH3-A01
Bracket
|
77145-SH3-A01 |
— | ||
|
21
|
21
77151-SH3-A03
Frame
0S110034 - |
77151-SH3-A03 |
— | ||
|
21
|
21
77151-SH3-A02 FrameFR. CONSOLE INSTRUMENT CENTER 00000000 - 0S110033 |
77151-SH3-A02 |
US $50.05 |
||
|
22
|
22
77161-SH3-010ZG
Garnish
|
77161-SH3-010ZG |
— | ||
|
23
|
23
77162-SH3-010ZG
Garnish
|
77162-SH3-010ZG |
— | ||
|
24
|
24
77174-SH4-A00
Stay
|
77174-SH4-A00 |
— | ||
|
25
|
25
77176-SH4-000
Frame
|
77176-SH4-000 |
— | ||
|
26
|
26
77177-SH4-000
Frame
|
77177-SH4-000 |
— | ||
|
27
|
27
77180-SH4-010
Bracket
|
77180-SH4-010 |
— | ||
|
29
|
29
77201-SH4-A00ZB
Outer
|
77201-SH4-A00ZB |
— | ||
|
29
|
29
77201-SH4-A00ZA
Outer
|
77201-SH4-A00ZA |
— | ||
|
29
|
29
77201-SH4-A00ZC
Outer
|
77201-SH4-A00ZC |
— | ||
|
31
|
31
77202-SH4-A00ZA
Lid
|
77202-SH4-A00ZA |
— | ||
|
31
|
31
77202-SH4-A00ZC
Lid
|
77202-SH4-A00ZC |
— | ||
|
31
|
31
77202-SH4-A00ZB
Lid
|
77202-SH4-A00ZB |
— | ||
|
32
|
32
77203-SH4-A00ZC
Lid
|
77203-SH4-A00ZC |
— | ||
|
32
|
32
77203-SH4-A00ZB
Lid
|
77203-SH4-A00ZB |
— | ||
|
32
|
32
77203-SH4-A00ZA
Lid
|
77203-SH4-A00ZA |
— | ||
|
35
|
35
77233-SH3-A01
Panel
|
77233-SH3-A01 |
— | ||
|
36
|
36
77251-SH3-010ZD
Lid
|
77251-SH3-010ZD |
— | ||
|
36
|
36
77251-SH3-010ZE
Lid
|
77251-SH3-010ZE |
— | ||
|
36
|
36
77251-SH3-010ZC LidSWITCH HOLE *B49L* |
77251-SH3-010ZC |
US $4.62 |
||
|
37
|
37
77253-SH3-000
Lid
|
77253-SH3-000 |
— | ||
|
38
|
38
77258-SH3-000
Lid
|
77258-SH3-000 |
— | ||
|
39
|
39
77301-SH3-A00ZD CoverINSTRUMENT LOWER *B49L* |
77301-SH3-A00ZD |
US $17.15 |
||
|
39
|
39
77301-SH3-A00ZC
Cover
|
77301-SH3-A00ZC |
— | ||
|
39
|
39
77301-SH3-A00ZE
Cover
|
77301-SH3-A00ZE |
— | ||
|
40
|
40
77355-SH4-000
Blind
|
77355-SH4-000 |
— | ||
|
41
|
41
77601-SH4-A01
Panel
|
77601-SH4-A01 |
— | ||
|
45
|
45
77640-SH4-A01ZB
Outlet assy
|
77640-SH4-A01ZB |
— | ||
|
45
|
45
77640-SH4-A01ZD
Outlet assy
|
77640-SH4-A01ZD |
— | ||
|
45
|
45
77640-SH4-A01ZC
Outlet assy
|
77640-SH4-A01ZC |
— | ||
|
47
|
47
77750-SH3-010ZE
Pocket assy
|
77750-SH3-010ZE |
— | ||
|
47
|
47
77750-SH3-010ZD
Pocket assy
|
77750-SH3-010ZD |
— | ||
|
47
|
47
77750-SH3-010ZC
Pocket assy
|
77750-SH3-010ZC |
— | ||
|
48
|
48
77762-SD4-000
Label
|
77762-SD4-000 |
— | ||
|
49
|
49
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
49
|
49
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
50
|
50
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
50
|
50
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
51
|
51
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
52
|
52
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
53
|
53
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
54
|
54
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
55
|
55
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
56
|
56
90310-SB2-003 NutSPEED |
90310-SB2-003 |
from US $1.24 |
||
|
57
|
57
90334-SH3-000
Nut
|
90334-SH3-000 |
— | ||
|
59
|
59
90651-692-731
Nut
|
90651-692-731 |
— | ||
|
60
|
60
90659-SA5-003 GrommetSCREW, 4MM |
90659-SA5-003 |
US $2.24 |
||
|
61
|
61
90666-SD4-000
Clip
|
90666-SD4-000 |
— | ||
|
62
|
62
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
63
|
63
90669-SH3-000
Clip
|
90669-SH3-000 |
— | ||
|
64
|
64
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
65
|
65
90685-SH3-003ZA
Clip
|
90685-SH3-003ZA |
— | ||
|
66
|
66
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
67
|
67
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
68
|
68
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
