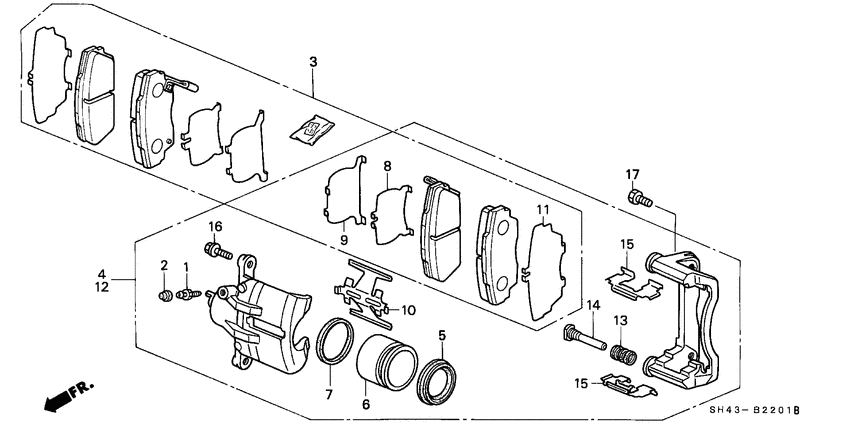

Front brake caliper (2) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-692-003 ScrewBLEEDER |
43352-692-003 |
US $5.32 |
||
|
2
|
2
43353-SA0-003
Cap
|
43353-SA0-003 |
— | ||
| replacement | |||||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
3
|
3
45022-SK7-010 Pad setFR. |
45022-SK7-010 |
US $131.84 |
||
|
4
|
4
45210-SK7-003
Caliper assy
|
45210-SK7-003 |
— | ||
|
5
|
5
45214-SD4-003
Boot
|
45214-SD4-003 |
— | ||
| replacement | |||||
|
5
|
5
45214-SM4-003 BootPISTON |
45214-SM4-003 |
US $10.74 |
||
|
6
|
6
45216-SG0-003
Piston
|
45216-SG0-003 |
— | ||
|
7
|
7
45217-SD4-003 SealPISTON |
45217-SD4-003 |
US $14.16 |
||
|
8
|
8
45225-SD4-003
Shim a
|
45225-SD4-003 |
— | ||
|
9
|
9
45226-SD4-013
Shim b
|
45226-SD4-013 |
— | ||
|
10
|
10
45227-SG0-013
Spring
|
45227-SG0-013 |
— | ||
|
11
|
11
45228-SD4-003
Shim
|
45228-SD4-003 |
— | ||
|
12
|
12
45230-SK7-003
Caliper assy
|
45230-SK7-003 |
— | ||
|
13
|
13
45234-SD4-003 BootPIN |
45234-SD4-003 |
US $5.88 |
||
|
14
|
14
45235-SD4-023
Pin
|
45235-SD4-023 |
— | ||
|
15
|
15
45237-SD4-003
Retainer
|
45237-SD4-003 |
— | ||
|
16
|
16
45240-SA7-003 BoltFLANGE, 8X22 |
45240-SA7-003 |
US $3.22 |
||
|
17
|
17
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
