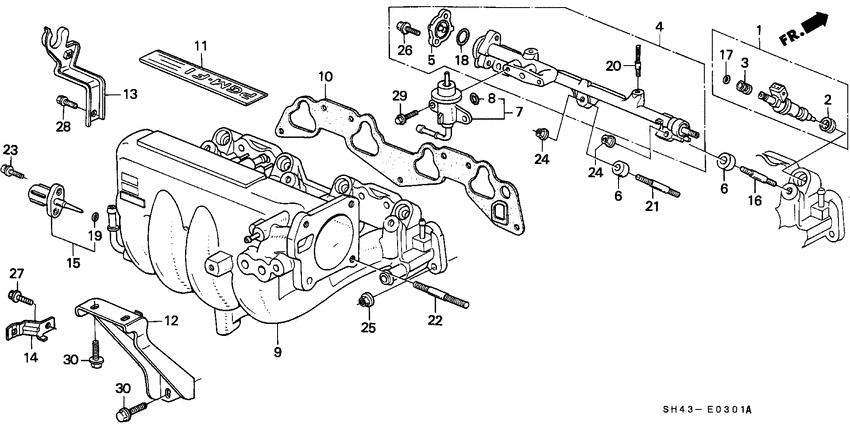

Intake manifold (2) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-PG7-A10 Packing setINJECTOR |
06164-PG7-A10 |
US $180.48 |
||
|
2
|
2
16472-PD6-000 Seal ringINJECTOR (OTSUKA) |
16472-PD6-000 |
US $7.33 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16620-PG7-661
Line assy.
|
16620-PG7-661 |
— | ||
|
5
|
5
16623-PE2-005
Cover
|
16623-PE2-005 |
— | ||
|
6
|
6
16638-PD6-000
Insulator
|
16638-PD6-000 |
— | ||
|
7
|
7
16740-PM6-003
Regulator assy
|
16740-PM6-003 |
— | ||
|
7
|
7
16740-PG7-623
Regulator assy
|
16740-PG7-623 |
— | ||
|
8
|
8
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
8
|
8
91301-PM6-003
O-ring
|
91301-PM6-003 |
— | ||
|
9
|
9
17100-PM6-A00
Manifold comp
|
17100-PM6-A00 |
— | ||
|
10
|
10
17105-PM2-003
Gasket
|
17105-PM2-003 |
— | ||
|
10
|
10
17105-PM2-004
Gasket
|
17105-PM2-004 |
— | ||
| replacement | |||||
|
10
|
10
17105-P00-T03
Gasket
|
17105-P00-T03 |
— | ||
|
11
|
11
17113-PG7-310
Emblem
|
17113-PG7-310 |
— | ||
|
12
|
12
17132-PM6-010
Stay comp
|
17132-PM6-010 |
— | ||
|
13
|
13
32742-PM7-000
Stay
|
32742-PM7-000 |
— | ||
|
14
|
14
32752-PM6-A00
Stay
|
32752-PM6-A00 |
— | ||
|
15
|
15
37880-PK2-005
Sensor assy
|
37880-PK2-005 |
— | ||
| replacement | |||||
|
15
|
15
37880-P05-A00 Sensor assyAIR TEMP |
37880-P05-A00 |
from US $27.74 |
||
|
16
|
16
90002-PD6-000
Bolt
|
90002-PD6-000 |
— | ||
|
17
|
17
91301-PD6-003 O-ring7.3X2.2 (ARAI) |
91301-PD6-003 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
18
|
18
91301-PR3-003
O-ring
|
91301-PR3-003 |
— | ||
|
19
|
19
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
20
|
20
92900-06018-0B BoltSTUD, 6X18 |
92900-06018-0B |
from US $0.55 |
||
|
21
|
21
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
22
|
22
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
23
|
23
93891-050-160-8 Screw-washer5X16 |
93891-050-160-8 |
from US $0.44 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
26
|
26
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
26
|
26
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
27
|
27
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
