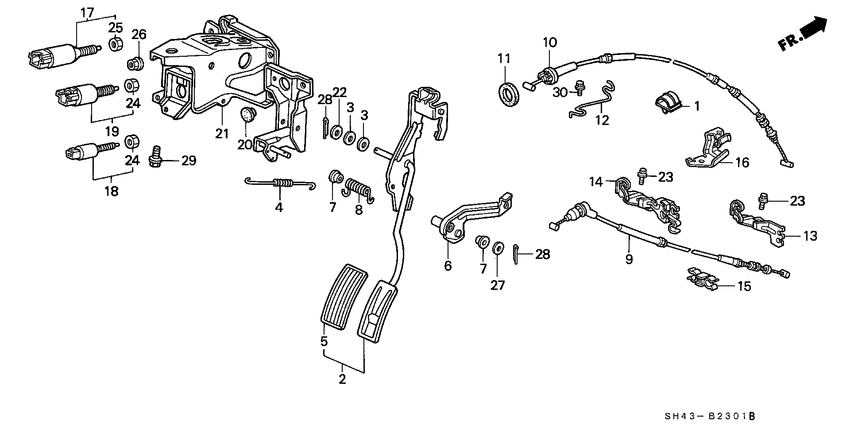

Accelerator pedal (2) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- area code
- KL
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17713-SE0-003 ClampFUEL PIPE |
17713-SE0-003 |
US $2.03 |
||
|
2
|
2
17800-SH3-A32
Pedal comp
|
17800-SH3-A32 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SH3-L31
Spring
|
17814-SH3-L31 |
— | ||
|
5
|
5
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
6
|
6
17856-SH3-A31
Arm
|
17856-SH3-A31 |
— | ||
|
7
|
7
17858-SA5-000
Bush
|
17858-SA5-000 |
— | ||
|
8
|
8
17863-SH3-A30
Spring
|
17863-SH3-A30 |
— | ||
|
9
|
9
17880-SH3-A03
Wire
|
17880-SH3-A03 |
— | ||
|
10
|
10
17910-SH3-L91
Wire
|
17910-SH3-L91 |
— | ||
|
11
|
11
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
13
|
13
17931-SH3-A72
Clamp
|
17931-SH3-A72 |
— | ||
|
14
|
14
17931-SH3-A82
Clamp
|
17931-SH3-A82 |
— | ||
|
15
|
15
17933-SH3-A01
Clip
|
17933-SH3-A01 |
— | ||
|
16
|
16
17934-SH3-A00
Stay
|
17934-SH3-A00 |
— | ||
|
17
|
17
35710-SE3-A01
Switch assy
|
35710-SE3-A01 |
— | ||
|
18
|
18
36750-SE0-013
Switch assy
|
36750-SE0-013 |
— | ||
|
19
|
19
36760-SE0-003
Switch assy
|
36760-SE0-003 |
— | ||
|
20
|
20
46505-SH3-000 PadPEDAL STOPPER |
46505-SH3-000 |
US $2.31 |
||
|
21
|
21
46590-SH3-L31
Bracket
|
46590-SH3-L31 |
— | ||
|
22
|
22
90503-SA0-000 WasherPLAIN, 9MM |
90503-SA0-000 |
from US $1.85 |
||
|
23
|
23
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
24
|
24
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
25
|
25
94002-120-800-S NutHEX., 12MM |
94002-120-800-S |
from US $0.59 |
||
|
26
|
26
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
27
|
27
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
28
|
28
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
29
|
29
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
29
|
29
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
30
|
30
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
