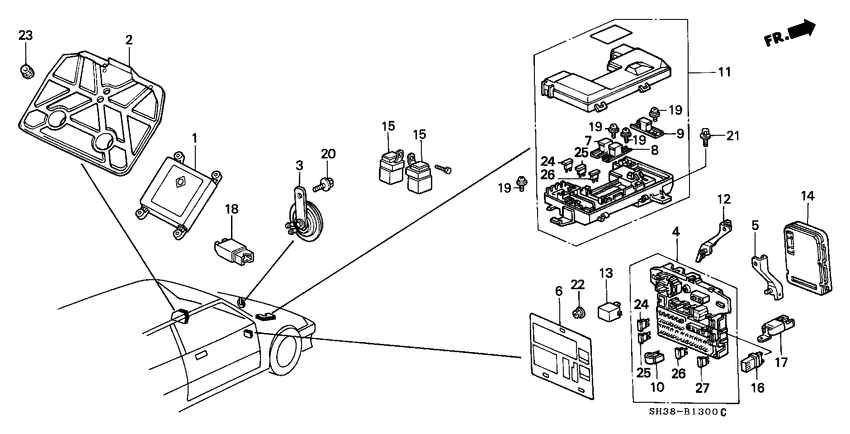

Relay/horn/fuse box Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 3
- grade
- GL
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37700-PM4-Q02
Control unit
|
37700-PM4-Q02 |
— | ||
|
2
|
2
37821-PM3-020
Cover
|
37821-PM3-020 |
— | ||
|
3
|
3
38100-SH3-003 Horn assyLOW (MITSUBA) |
38100-SH3-003 |
US $54.53 |
||
|
4
|
4
38200-SH3-A02
Box assy
|
38200-SH3-A02 |
— | ||
|
5
|
5
38203-SH3-010
Bracket
|
38203-SH3-010 |
— | ||
|
6
|
6
38205-SH3-Q01
Label
|
38205-SH3-Q01 |
— | ||
|
7
|
7
38212-SE0-000
Fuse
|
38212-SE0-000 |
— | ||
|
8
|
8
38213-SD4-000
Fuse
|
38213-SD4-000 |
— | ||
|
9
|
9
38214-SH3-000 FuseBLOCK (60A) |
38214-SH3-000 |
US $8.26 |
||
|
10
|
10
38235-SA5-003 PullerFUSE (SUMITOMO) |
38235-SA5-003 |
US $2.52 |
||
|
11
|
11
38250-SH3-Q02
Box assy
|
38250-SH3-Q02 |
— | ||
|
13
|
13
38300-SE3-003 Relay assyTURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
38300-SE3-003 |
US $42.50 |
||
|
13
|
13
38300-SE3-004 Relay assyTURN SIGNAL & HAZARD (166500-0060) (DENSO) |
38300-SE3-004 |
US $48 |
||
|
14
|
14
38600-SH3-Q11
Control unit
|
38600-SH3-Q11 |
— | ||
|
16
|
16
39794-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2203) |
39794-SE0-004 |
US $20.61 |
||
|
16
|
16
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
17
|
17
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $28.54 |
||
|
17
|
17
39797-SE0-003 Relay assyPOWER (4P) (DENSO) (056700-7330) |
39797-SE0-003 |
US $36.20 |
||
|
18
|
18
39797-SH2-003 Relay assyPOWER (4P) (DENSO) |
39797-SH2-003 |
US $32.77 |
||
|
19
|
19
90153-SH3-003
Bolt
|
90153-SH3-003 |
— | ||
|
20
|
20
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
21
|
21
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
21
|
21
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
22
|
22
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
23
|
23
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
24
|
24
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
25
|
25
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
26
|
26
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
27
|
27
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
