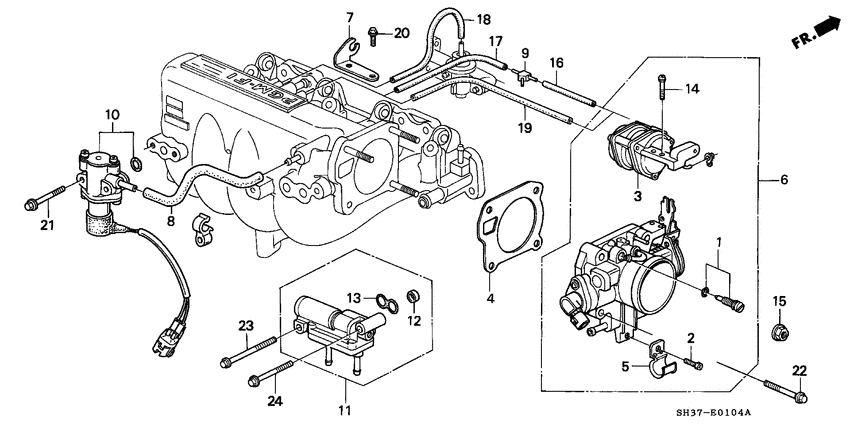

Throttle body (PGM-FI; 2) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-16
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16080-PM6-005
Bolt
|
16080-PM6-005 |
— | ||
|
3
|
3
16111-PM6-015
Diaphragm assy.
|
16111-PM6-015 |
— | ||
|
4
|
4
16176-PM6-000
Gasket
|
16176-PM6-000 |
— | ||
|
5
|
5
16179-PM6-005
Binder
|
16179-PM6-005 |
— | ||
|
6
|
6
16400-PM6-B01
Throttle Body Assy
|
16400-PM6-B01 |
— | ||
|
7
|
7
16411-PM7-010
Stay
|
16411-PM7-010 |
— | ||
|
8
|
8
17512-PM6-A00
Tube
|
17512-PM6-A00 |
— | ||
|
11
|
11
36450-PM6-A01
Valve assy.
|
36450-PM6-A01 |
— | ||
|
13
|
13
36455-PH7-003
Packing
|
36455-PH7-003 |
— | ||
|
14
|
14
93892-050-201-8 Screw-washer5X20 |
93892-050-201-8 |
from US $0.44 |
||
| replacement | |||||
|
14
|
14
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
15
|
15
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
95005-351-351-0
Tube
|
95005-351-351-0 |
— | ||
| replacement | |||||
|
18
|
18
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
19
|
19
95005-351-451-6 Tube3.5X145 (95005-35001-10M) |
95005-351-451-6 |
US $1.55 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
23
|
23
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
24
|
24
95900-080-400-8 BoltFLANGE, 8X40 |
95900-080-400-8 |
from US $0.74 |
||
| replacement | |||||
|
24
|
24
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
