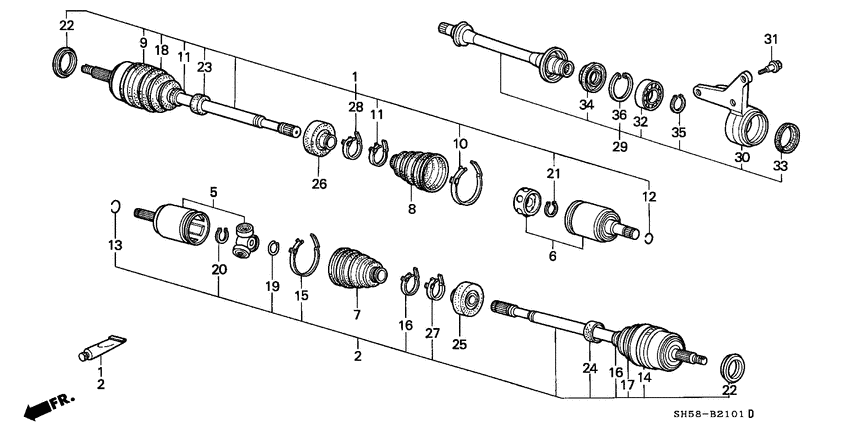

Driveshaft/half shaft Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SH9-000
Driveshaft set
|
44010-SH9-000 |
— | ||
|
2
|
2
44011-SH9-J00 Driveshaft setL. |
44011-SH9-J00 |
US $410.88 |
||
|
5
|
5
44310-SH3-J10
Joint comp
|
44310-SH3-J10 |
— | ||
|
6
|
6
44310-SH9-003
Joint comp
|
44310-SH9-003 |
— | ||
|
7
|
7
44315-SB2-981 BootINBOARD (NOK) |
44315-SB2-981 |
US $30.34 |
||
|
8
|
8
44315-SD9-003
Boot
|
44315-SD9-003 |
— | ||
|
9
|
9
44316-SD9-013 BandOUTBOARD BOOT |
44316-SD9-013 |
US $11.06 |
||
|
10
|
10
44317-SD9-013 BandINBOARD BOOT |
44317-SD9-013 |
US $11.06 |
||
|
11
|
11
44318-SD9-013 BandSHAFT BOOT |
44318-SD9-013 |
US $8.68 |
||
|
12
|
12
44319-SD9-003 Set ring28X2.0 |
44319-SD9-003 |
US $3.64 |
||
| replacements | |||||
|
12
|
12
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
|
12
|
12
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
13
|
13
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
|
14
|
14
44327-SB0-300 BandOUTBOARD BOOT |
44327-SB0-300 |
US $8.40 |
||
|
15
|
15
44328-SB0-300 BandINBOARD BOOT |
44328-SB0-300 |
US $8.26 |
||
|
16
|
16
44329-SB0-300 BandDRIVESHAFT BOOT |
44329-SB0-300 |
US $9.80 |
||
|
17
|
17
44333-SB2-981 BootR. OUTBOARD (NOK) |
44333-SB2-981 |
US $32.13 |
||
|
18
|
18
44333-SD9-003
Boot
|
44333-SD9-003 |
— | ||
|
19
|
19
44336-SB0-300 Ring aSTOPPER |
44336-SB0-300 |
US $1.89 |
||
|
20
|
20
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
21
|
21
44338-SD9-003
Circlip
|
44338-SD9-003 |
— | ||
|
22
|
22
44347-SB2-003 RingOUTBOARD |
44347-SB2-003 |
US $5.32 |
||
|
23
|
23
44348-SD9-003
Cover
|
44348-SD9-003 |
— | ||
|
24
|
24
44349-SH9-300
Cover
|
44349-SH9-300 |
— | ||
|
25
|
25
44351-SH3-J00
Weight
|
44351-SH3-J00 |
— | ||
|
26
|
26
44351-SH9-300
Weight
|
44351-SH9-300 |
— | ||
|
27
|
27
44352-SA2-300 BandDAMPER WEIGHT |
44352-SA2-300 |
US $9.24 |
||
|
28
|
28
44352-SD9-013 BandDYNAMIC DAMPER |
44352-SD9-013 |
US $11.76 |
||
|
29
|
29
44500-SH9-000
Shaft assy
00000000 - 0S000124 |
44500-SH9-000 |
— | ||
|
29
|
29
44500-SH9-010
Shaft assy
0S000125 - |
44500-SH9-010 |
— | ||
|
30
|
30
44511-SH9-000
Support
|
44511-SH9-000 |
— | ||
|
31
|
31
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
32
|
32
91057-SD9-008 BearingHALF SHAFT (TOYO SEIKO) |
91057-SD9-008 |
US $13.44 |
||
|
32
|
32
91057-SD2-004
Bearing
|
91057-SD2-004 |
— | ||
|
33
|
33
91260-SD9-013
Seal
00000000 - 0S000124 |
91260-SD9-013 |
— | ||
|
33
|
33
91260-SD9-014
Seal
0S000125 - |
91260-SD9-014 |
— | ||
|
33
|
33
91260-SD9-023
Seal
0S000125 - |
91260-SD9-023 |
— | ||
|
33
|
33
91260-SD9-004
Seal
00000000 - 0S000124 |
91260-SD9-004 |
— | ||
|
34
|
34
91262-SE0-004 SealHALF SHAFT INNER (ARAI) |
91262-SE0-004 |
US $10.22 |
||
|
34
|
34
91262-SE0-003 SealHALF SHAFT INNER (NOK) |
91262-SE0-003 |
US $11.06 |
||
|
35
|
35
94510-40000 CirclipEXTERNAL, 40MM |
94510-40000 |
US $1.04 |
||
|
36
|
36
94520-68000 CirclipINTERNAL, 68MM |
94520-68000 |
from US $2.66 |
||
