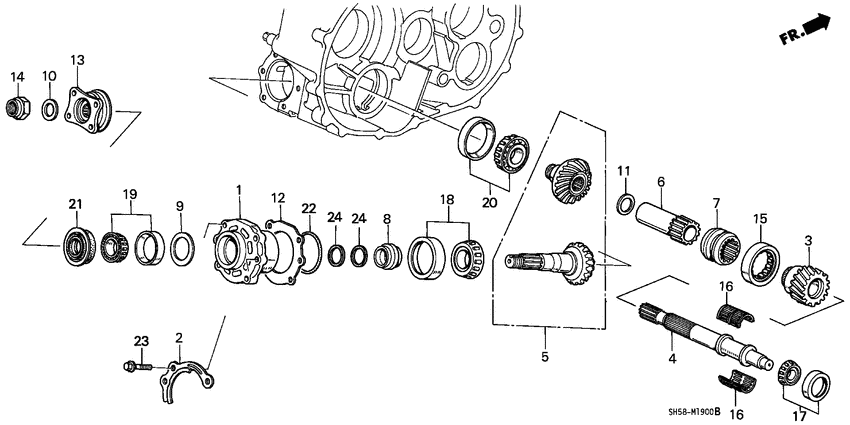

Transfer bevel gear (4WD) Diagram Honda CIVIC
- Year
- 1988
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21421-PH8-900
Cover
|
21421-PH8-900 |
— | ||
|
2
|
2
21432-PH8-000 CoverTRANSFER DUST |
21432-PH8-000 |
US $7.14 |
||
|
3
|
3
29101-PH8-900
Gear
|
29101-PH8-900 |
— | ||
|
4
|
4
29201-PH8-900
Shaft
|
29201-PH8-900 |
— | ||
|
5
|
5
29210-PH8-900
Gear set
|
29210-PH8-900 |
— | ||
|
6
|
6
29311-PH8-000
Collar
|
29311-PH8-000 |
— | ||
|
7
|
7
29321-PH8-000
Sleeve
|
29321-PH8-000 |
— | ||
|
8
|
8
29351-PH8-901
Spacer
9000703 - |
29351-PH8-901 |
— | ||
|
8
|
8
29351-PH8-900
Spacer
00000000 - 9000702 |
29351-PH8-900 |
— | ||
|
9
|
9
29352-PH8-960
Washer
|
29352-PH8-960 |
— | ||
|
10
|
10
29361-PH8-000
Washer
|
29361-PH8-000 |
— | ||
|
11
|
11
29417-PH8-000
Shim
|
29417-PH8-000 |
— | ||
|
11
|
11
29412-PH8-000
Shim
|
29412-PH8-000 |
— | ||
|
11
|
11
29419-PH8-000
Shim
|
29419-PH8-000 |
— | ||
|
11
|
11
29414-PH8-000
Shim
|
29414-PH8-000 |
— | ||
|
11
|
11
29416-PH8-000
Shim
|
29416-PH8-000 |
— | ||
|
11
|
11
29411-PH8-000
Shim
|
29411-PH8-000 |
— | ||
|
11
|
11
29418-PH8-000
Shim
|
29418-PH8-000 |
— | ||
|
11
|
11
29413-PH8-000
Shim
|
29413-PH8-000 |
— | ||
|
11
|
11
29415-PH8-000
Shim
|
29415-PH8-000 |
— | ||
|
12
|
12
29488-PH8-000
Shim
|
29488-PH8-000 |
— | ||
|
12
|
12
29483-PH8-000
Shim
|
29483-PH8-000 |
— | ||
|
12
|
12
29491-PH8-000
Shim
|
29491-PH8-000 |
— | ||
|
12
|
12
29485-PH8-000
Shim
|
29485-PH8-000 |
— | ||
|
12
|
12
29487-PH8-000
Shim
|
29487-PH8-000 |
— | ||
|
12
|
12
29482-PH8-000
Shim
|
29482-PH8-000 |
— | ||
|
12
|
12
29489-PH8-000
Shim
|
29489-PH8-000 |
— | ||
|
12
|
12
29484-PH8-000
Shim
|
29484-PH8-000 |
— | ||
|
12
|
12
29492-PH8-000
Shim
|
29492-PH8-000 |
— | ||
|
12
|
12
29486-PH8-000
Shim
|
29486-PH8-000 |
— | ||
|
12
|
12
29481-PH8-000
Shim
|
29481-PH8-000 |
— | ||
|
13
|
13
40430-PH8-900
Flange comp. a
|
40430-PH8-900 |
— | ||
|
14
|
14
90201-PH8-000 NutHEX., 22MM |
90201-PH8-000 |
US $5.32 |
||
|
15
|
15
91102-PH8-008 BearingNEEDLE, 54X75X16 |
91102-PH8-008 |
US $17.92 |
||
|
16
|
16
91107-PH8-008
Bearing
|
91107-PH8-008 |
— | ||
|
17
|
17
91121-PH8-961 BearingTAPER, 30203 |
91121-PH8-961 |
US $16.32 |
||
|
18
|
18
91122-PH8-008
Bearing
|
91122-PH8-008 |
— | ||
|
19
|
19
91123-PH8-961
Bearing
|
91123-PH8-961 |
— | ||
|
20
|
20
91122-PH8-008
Bearing
|
91122-PH8-008 |
— | ||
|
21
|
21
91201-PH8-005 Oil seal38X60X11 |
91201-PH8-005 |
US $10.22 |
||
|
22
|
22
91303-PH8-010 O-ring79.4X3.1 |
91303-PH8-010 |
from US $6.30 |
||
|
23
|
23
95900-080-280-8 BoltFLANGE, 8X28 |
95900-080-280-8 |
from US $0.74 |
||
| replacement | |||||
|
23
|
23
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
