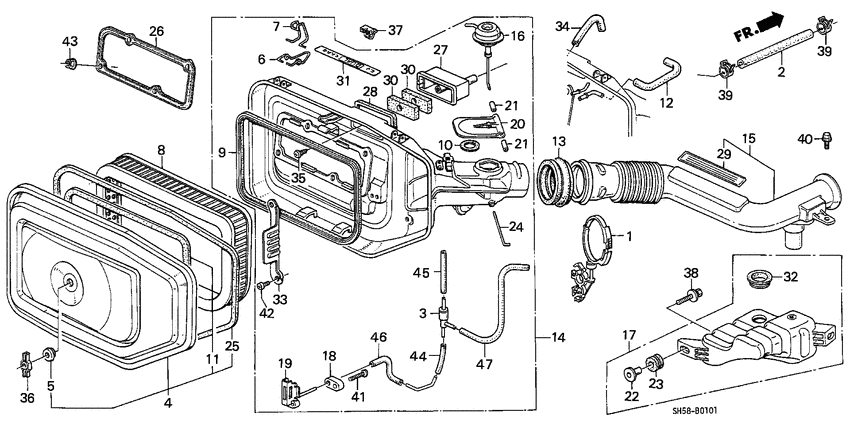

Air cleaner (2) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16237-PM3-003
Clamp b
|
16237-PM3-003 |
— | ||
|
2
|
2
17137-PM4-000
Tube
|
17137-PM4-000 |
— | ||
|
3
|
3
17150-PE9-004
Valve
|
17150-PE9-004 |
— | ||
|
4
|
4
17210-PM4-000
Cover assy.
|
17210-PM4-000 |
— | ||
|
5
|
5
17212-PC0-000
Washer
|
17212-PC0-000 |
— | ||
|
6
|
6
17216-PM4-300 Clip AWIRE |
17216-PM4-300 |
from US $1.54 |
||
|
7
|
7
17217-PM4-300 Clip bWIRE |
17217-PM4-300 |
from US $1.54 |
||
|
8
|
8
17220-PM4-003 ElementAIR CLEANER |
17220-PM4-003 |
US $23.04 |
||
|
9
|
9
17221-PM4-300
Packing b
|
17221-PM4-300 |
— | ||
|
10
|
10
17222-PE0-300
Seal
|
17222-PE0-300 |
— | ||
|
11
|
11
17222-PM4-300
Packing b
|
17222-PM4-300 |
— | ||
|
12
|
12
17229-PM4-000
Tube
|
17229-PM4-000 |
— | ||
|
13
|
13
17231-PM4-Q00
Cover
|
17231-PM4-Q00 |
— | ||
|
14
|
14
17240-PM4-000
Case assy.
|
17240-PM4-000 |
— | ||
|
15
|
15
17242-PM4-Q01 PipeAIR INTAKE |
17242-PM4-Q01 |
US $37.25 |
||
|
16
|
16
17245-PM4-003
Diaphragm
|
17245-PM4-003 |
— | ||
|
17
|
17
17246-PM4-Q00
Chamber assy
|
17246-PM4-Q00 |
— | ||
|
18
|
18
17247-PA0-000 InsulatorSENSOR |
17247-PA0-000 |
US $3.01 |
||
|
19
|
19
17250-PJ7-004
Sensor comp
|
17250-PJ7-004 |
— | ||
|
20
|
20
17251-PM4-300
Valve
|
17251-PM4-300 |
— | ||
|
21
|
21
17253-689-300 PlugCONTROL VALVE |
17253-689-300 |
US $3.15 |
||
|
22
|
22
17255-PD6-000 CollarRESONATOR |
17255-PD6-000 |
US $2.10 |
||
|
23
|
23
17256-PD6-000 RubberRESONATOR MOUNTING |
17256-PD6-000 |
US $2.59 |
||
|
24
|
24
17257-689-310
Pin
|
17257-689-310 |
— | ||
|
25
|
25
17258-PM4-300
Packing
|
17258-PM4-300 |
— | ||
|
26
|
26
17266-PM4-000
Packing
|
17266-PM4-000 |
— | ||
|
27
|
27
17271-PM3-000 CaseBREATHER ELEMENT |
17271-PM3-000 |
US $5.88 |
||
|
28
|
28
17272-PM3-000 PackingBREATHER |
17272-PM3-000 |
from US $2.24 |
||
|
29
|
29
17273-PH1-640
Plate
|
17273-PH1-640 |
— | ||
|
30
|
30
17274-PM3-000 ElementBREATHER |
17274-PM3-000 |
from US $4 |
||
|
31
|
31
17278-PM4-000
Emblem
|
17278-PM4-000 |
— | ||
|
32
|
32
17307-PM4-000
Seal rubber
|
17307-PM4-000 |
— | ||
|
33
|
33
17415-PM4-300
Plate
|
17415-PM4-300 |
— | ||
|
34
|
34
17510-PM4-000
Tube
|
17510-PM4-000 |
— | ||
|
35
|
35
90070-PA5-660
Screw
|
90070-PA5-660 |
— | ||
|
36
|
36
90203-PB2-000 NutAIR CLEANER COVER (DACRO COATING) |
90203-PB2-000 |
from US $2.17 |
||
|
37
|
37
90691-PM4-013
Clip
|
90691-PM4-013 |
— | ||
|
38
|
38
90775-PG7-000 Bolt-washer6X20 |
90775-PG7-000 |
US $1.82 |
||
|
39
|
39
91405-PH7-003
Clamp
|
91405-PH7-003 |
— | ||
|
40
|
40
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
40
|
40
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
41
|
41
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
42
|
42
93500-060-100-H ScrewPAN, 6X10 |
93500-060-100-H |
from US $0.44 |
||
|
43
|
43
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
44
|
44
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
|
45
|
45
95005-350-651-8 Tube3.5X65 (95005-35001-10M) |
95005-350-651-8 |
US $1.18 |
||
|
46
|
46
95005-350-701-0 Tube3.5X70 (95005-35001-10M) |
95005-350-701-0 |
US $1.18 |
||
|
47
|
47
95005-351-701-0
Tube
|
95005-351-701-0 |
— | ||
