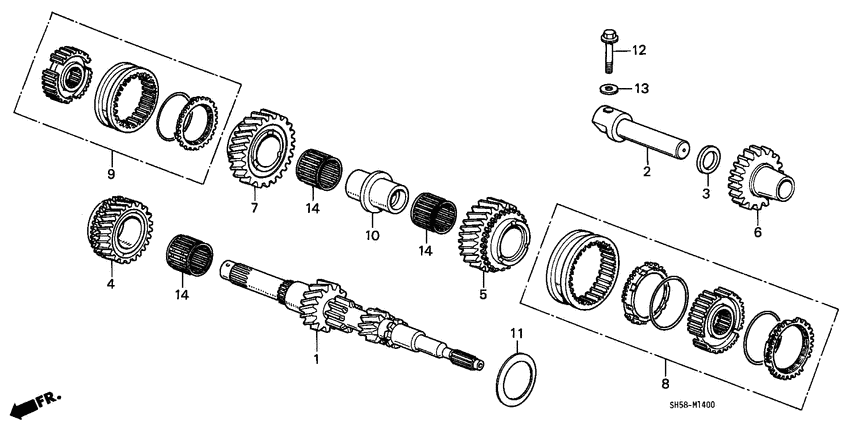

Mainshaft/gear (4WD) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-PH8-770
Mainshaft comp.
|
23210-PH8-770 |
— | ||
|
2
|
2
23261-PH8-010
Shaft
|
23261-PH8-010 |
— | ||
|
3
|
3
23262-PH8-000
Washer
|
23262-PH8-000 |
— | ||
|
4
|
4
23441-PH8-900
Gear
|
23441-PH8-900 |
— | ||
|
5
|
5
23451-PH8-900
Gear
|
23451-PH8-900 |
— | ||
|
6
|
6
23540-PH8-020
Gear
|
23540-PH8-020 |
— | ||
|
7
|
7
23581-PH8-900
Gear
|
23581-PH8-900 |
— | ||
|
8
|
8
23623-PG1-305
Sleeve set
|
23623-PG1-305 |
— | ||
|
9
|
9
23626-PG1-315
Sleeve set
|
23626-PG1-315 |
— | ||
|
10
|
10
23915-PG1-010 CollarDISTANCE, 28X35X56 |
23915-PG1-010 |
US $27.52 |
||
|
11
|
11
23927-PH8-000
Washer
|
23927-PH8-000 |
— | ||
|
12
|
12
90012-PH8-000
Bolt
|
90012-PH8-000 |
— | ||
|
13
|
13
90401-PG1-000
Washer
|
90401-PG1-000 |
— | ||
|
14
|
14
91104-PG1-008 BearingNEEDLE, 35X40X26 |
91104-PG1-008 |
US $9.66 |
