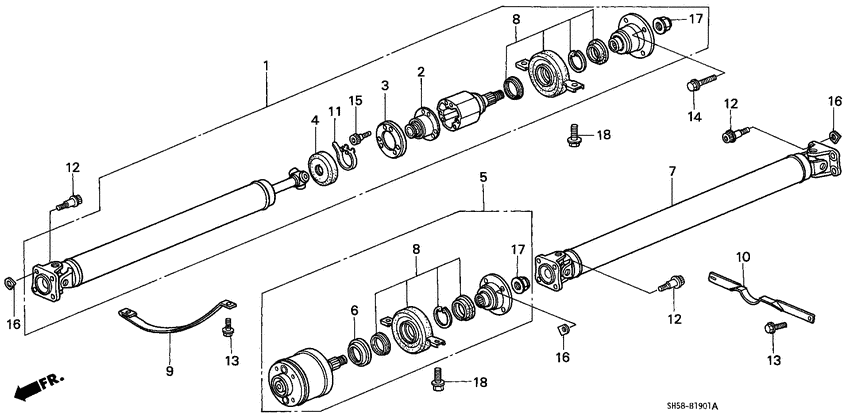

Propeller shaft Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40200-SH9-000
Shaft assy
|
40200-SH9-000 |
— | ||
|
2
|
2
40228-SH9-003
Boot comp.
|
40228-SH9-003 |
— | ||
|
3
|
3
40231-SH9-300
Ring
|
40231-SH9-300 |
— | ||
|
4
|
4
40241-SD9-300
Guard
|
40241-SD9-300 |
— | ||
|
5
|
5
40300-SH9-000
Shaft assy
|
40300-SH9-000 |
— | ||
|
6
|
6
40332-SH9-300
Ring
|
40332-SH9-300 |
— | ||
|
7
|
7
40400-SH9-000
Shaft assy
|
40400-SH9-000 |
— | ||
|
8
|
8
40520-SH9-003
Support assy. a
|
40520-SH9-003 |
— | ||
|
9
|
9
40540-SH9-000
Protector
|
40540-SH9-000 |
— | ||
|
10
|
10
40541-SH9-000
Protector
|
40541-SH9-000 |
— | ||
|
11
|
11
44329-SB0-300 BandDRIVESHAFT BOOT |
44329-SB0-300 |
US $9.80 |
||
|
12
|
12
90113-SD9-000 Bolt12POINT 8X23.5 |
90113-SD9-000 |
US $2.73 |
||
|
13
|
13
90116-SD9-000
Bolt
|
90116-SD9-000 |
— | ||
|
14
|
14
90118-SD9-008
Bolt
|
90118-SD9-008 |
— | ||
|
15
|
15
90162-SH9-000
Bolt
|
90162-SH9-000 |
— | ||
|
16
|
16
90310-SD9-000 NutYOKE, 8MM |
90310-SD9-000 |
US $1.61 |
||
|
17
|
17
90361-SH9-000
Nut
|
90361-SH9-000 |
— | ||
|
18
|
18
90382-SH9-000 BoltFLANGE, 10X29 |
90382-SH9-000 |
US $3.22 |
