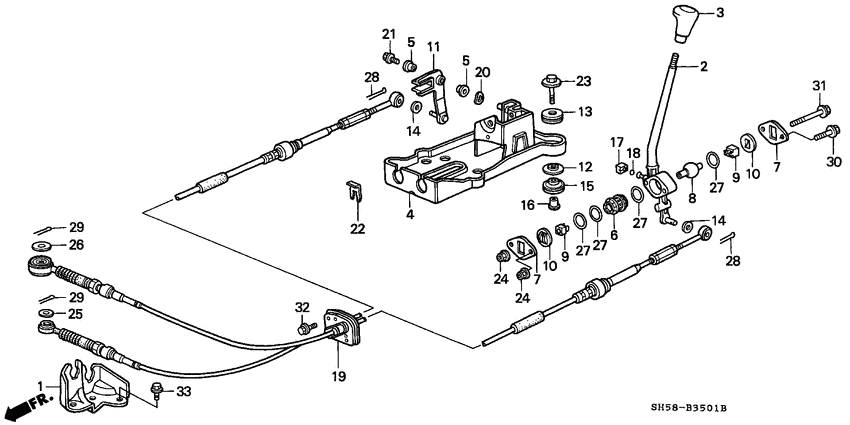

Shift lever (2) Diagram Honda CIVIC
- Year
- 1989
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- RTX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24600-PH8-770
Stay
|
24600-PH8-770 |
— | ||
|
2
|
2
54101-SH9-010
Lever
|
54101-SH9-010 |
— | ||
|
3
|
3
54102-SH9-003ZB
Knob comp.
|
54102-SH9-003ZB |
— | ||
|
4
|
4
54105-SH9-010 BracketCHANGE LEVER |
54105-SH9-010 |
US $48.38 |
||
|
5
|
5
54109-SC2-003 Bush bCHANGE LEVER |
54109-SC2-003 |
US $6.02 |
||
|
6
|
6
54110-SF1-003 SeatCHANGE LEVER BALL |
54110-SF1-003 |
US $11.81 |
||
|
7
|
7
54111-SF1-010 HolderCHANGE BALL |
54111-SF1-010 |
US $3.92 |
||
|
8
|
8
54112-SF1-010 PivotCHANGE LEVER |
54112-SF1-010 |
US $8.54 |
||
|
9
|
9
54113-SF1-013
Bush
|
54113-SF1-013 |
— | ||
|
10
|
10
54114-SF1-000
Guide
|
54114-SF1-000 |
— | ||
|
11
|
11
54115-SH9-010 LinkageCHANGE LEVER |
54115-SH9-010 |
US $27.65 |
||
|
12
|
12
54116-SD9-000
Washer
|
54116-SD9-000 |
— | ||
|
13
|
13
54117-SH9-000 Rubber aFLOATING |
54117-SH9-000 |
US $2.73 |
||
|
14
|
14
54118-SC2-000
Washer assy.
|
54118-SC2-000 |
— | ||
|
15
|
15
54118-SH9-000 Rubber bFLOATING |
54118-SH9-000 |
US $2.73 |
||
|
16
|
16
54119-SD9-000
Collar
|
54119-SD9-000 |
— | ||
|
17
|
17
54210-SD9-013
Bush c
|
54210-SD9-013 |
— | ||
|
18
|
18
54211-SD9-010 BallCUSHION |
54211-SD9-010 |
US $2.34 |
||
|
19
|
19
54310-SH9-003
Wire assy.
|
54310-SH9-003 |
— | ||
|
20
|
20
54340-SC2-000
Washer
|
54340-SC2-000 |
— | ||
|
21
|
21
54341-SC2-003
Bolt
|
54341-SC2-003 |
— | ||
|
22
|
22
54357-SF1-003 PlateCHANGE WIRE |
54357-SF1-003 |
US $3.58 |
||
|
23
|
23
90101-SD9-000 Bolt-washer8X32 |
90101-SD9-000 |
US $2.73 |
||
|
24
|
24
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
25
|
25
90502-SD9-020
Washer
|
90502-SD9-020 |
— | ||
|
26
|
26
90551-SF1-000
Washer
|
90551-SF1-000 |
— | ||
|
27
|
27
91301-SD9-000 O-ring2.3X24.5 |
91301-SD9-000 |
US $2.77 |
||
|
28
|
28
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
28
|
28
94201-29220
Pin
|
94201-29220 |
— | ||
|
28
|
28
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
28
|
28
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
29
|
29
94201-20250 PinSPLIT, 2.0X25 |
94201-20250 |
from US $0.44 |
||
| replacement | |||||
|
29
|
29
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
30
|
30
95800-060-400-8 BoltFLANGE, 6X40 |
95800-060-400-8 |
US $0.59 |
||
|
31
|
31
95800-060-600-8 BoltFLANGE, 6X60 |
95800-060-600-8 |
US $0.74 |
||
|
32
|
32
95900-060-120-8 BoltFLANGE, 6X12 |
95900-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
33
|
33
95801-080-200-8 BoltFLANGE, 8X20 |
95801-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
33
|
33
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
